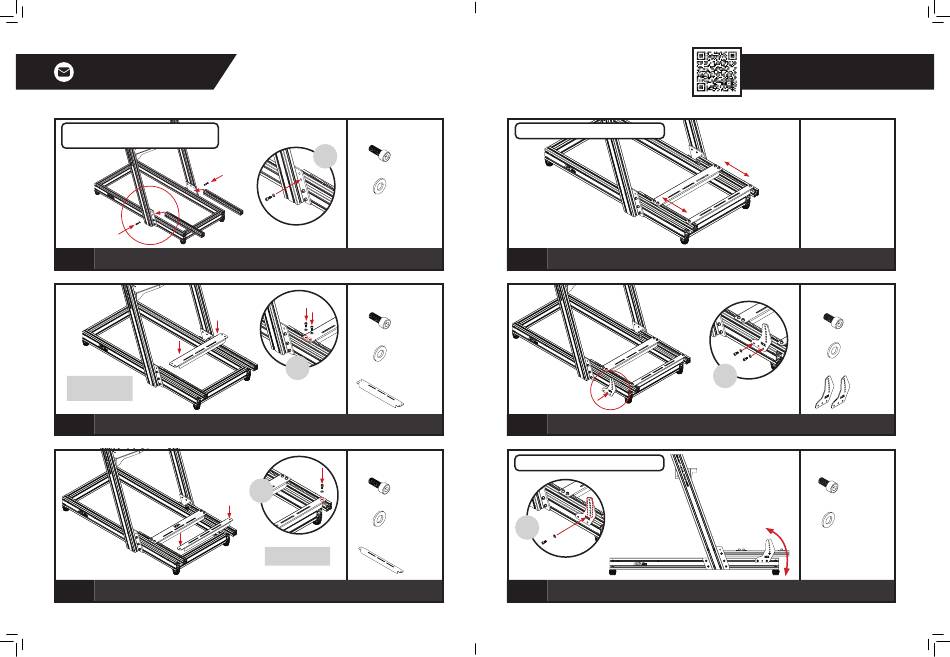

ALTERNATE PEDAL INSTALLATION
(
)
FOR SHORTER USERS
19
Align the holes on the Upright Connection Plates with the T-Nuts previously installed in Step 18. Bolt
through and secure with 2 x M8 Bolts and Washers.
)
A
Note: Do not tighten the
Pedal Plate until you achieve
the desired position.
20
A) Align the Large Pedal Plate with the T-Nuts previously installed in Step 16.
B) Bolt through and secure with 4 x M8 Bolts and Washers.
)
A
21
A) Align the Small Pedal Plate with the T-Nuts previously installed in Step 16.
B) Bolt through and secure using 2 x M8 Bolts and Washers.
PARTS:
• • 2 x M8 20mm Bolts
Repeat
on Other
Side
• • 2 x M8 Washers
PARTS:
)
B
• • 4 x M8 16mm Bolts
• • 4 x M8 Washers
Repeat
on Other
• • 1 x Large Pedal Plate
Side
)
PARTS:
B
• • 2 x M8 16mm Bolts
Repeat
on Other
Side
• • 2 x M8 Washers
• • 1 x Small Pedal Plate
Note: Use laser lines for
easy alignment.
16
PEDAL ADJUSTMENT RANGE
22
Loosen the Bolts securing the Pedal Plates. Adjust to the desired position using the alignment lines
and tighten the Bolts to lock place.
23
Align the bottom mounting holes on the Pedal Adjustment Fins with the T-Nuts previously installed in
Step 01b. Bolt through and secure using 2 x M8 Bolts and Washers. Repeat on the other side.
PEDAL ANGLE ADJUSTMENT
Repeat
on Other
Side
24
Adjust the Pedal assembly to the desired angle. Align the T-Nuts previously installed in Step 16 with
the holes on the Pedal Adjustment Fins. Bolt through and secure with 2 x M8 Bolts and Washers.
Video Instruction: bit.ly/nlrbuild
PARTS:
• • NIL
PARTS:
• • 4 x M8 16mm Bolts
• • 4 x M8 Washers
• • 2 x Pedal Adjustment Fins
Repeat
on Other
Side
PARTS:
• • 2 x M8 16mm Bolts
• • 2 x M8 Washers
17
-
