05

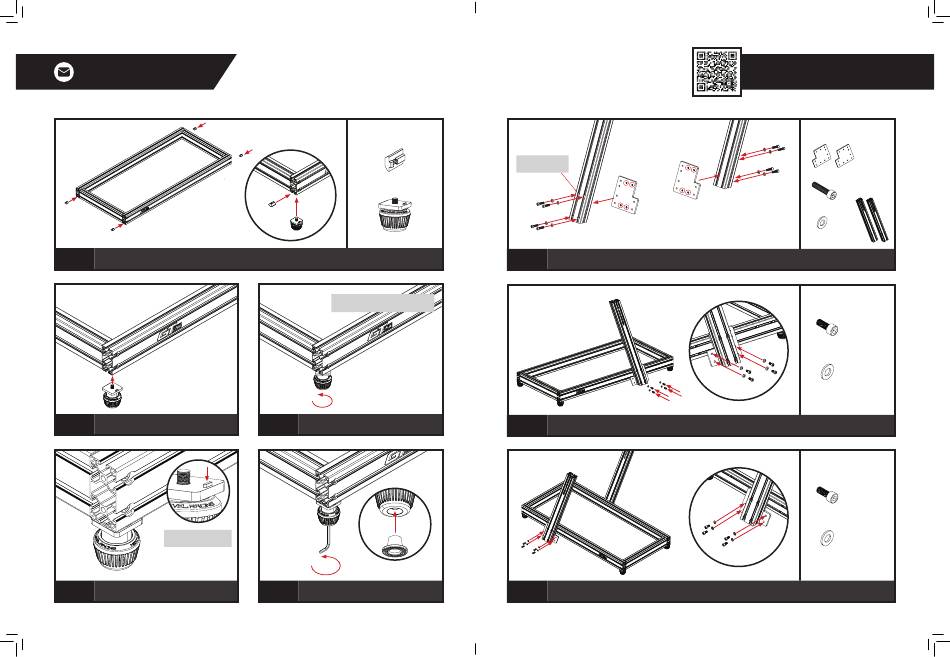

Slide 4 x T-Nuts into the bottom channels of the Base Assembly as shown.
06
Align the NLR Height Adjustable Feet with the
T-Nuts previously installed in Step 05.
Note: Foot alignment tab
should sit in the channel.
08
Align the tab on the NLR Height Adjustable Feet
with the channel on the bottom of the extrusions.
PARTS:
• • 4 x T-Nuts
• • 4 x Adjustable Feet
Note: Height of the foot can be adjusted only
when it's installed on to the cockpit.
07
Install the NLR Height Adjustable Feet into T-Nuts
previously installed in Step 05.
09
Tighten the Bolts inside the NLR Height Adjust-
able Feet with an Allen Key. Install Rubber Plug.
12
Note: Counterbore
holes facing outside
(R)
(L)
(L)
10
Align the threaded holes on the Wheel Post Connection Plates with the holes on the Wheel Posts.
Bolt through and secure using 8 x M8 Bolts and Washers.
(
)
FRONT
(
)
REAR
11
Align the Right Wheel Post Assembly with the T-Nuts previously installed in Step 01b.
Bolt through and secure with 4 x M8 Bolts and Washers.
12
Align the Left Wheel Post assembly with the T-Nuts previously installed in Step 01a.
Bolt through and secure with 4 x M8 Bolts and Washers.
Video Instruction: bit.ly/nlrbuild
PARTS:
• • Wheel Post Connection Plates
• • 8 x M8 35mm Bolts
(R)
• • 8 x M8 Washers
• • 2 x Wheel Posts
PARTS:
• • 4 x M8 20mm Bolts
• • 4 x M8 Washers
PARTS:
• • 4 x M8 20mm Bolts
• • 4 x M8 Washers
13
