A
B
(
)

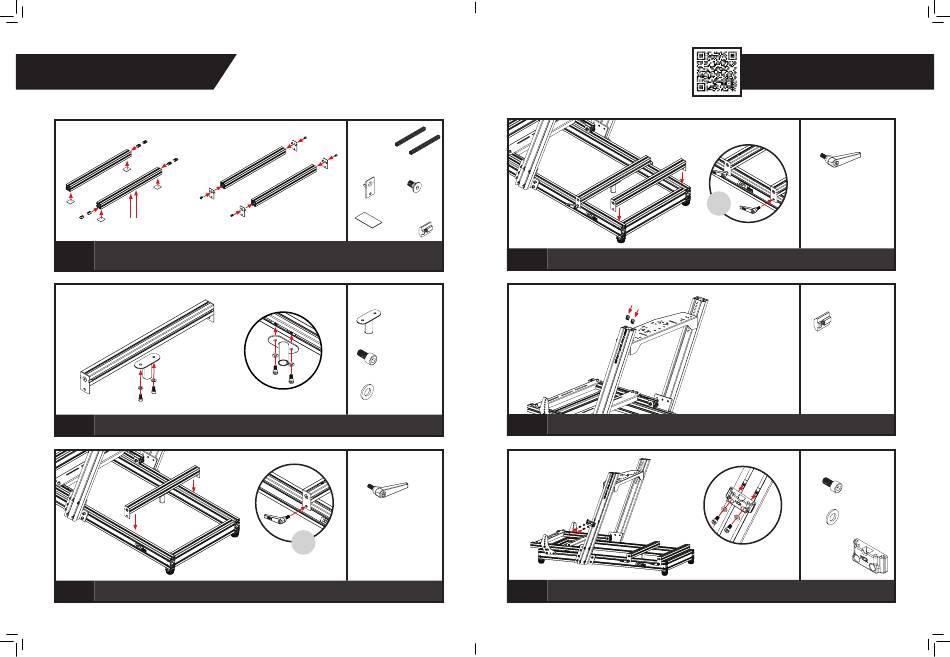

Butt-Kicker T-Nut Locations
A) Install 2 x T-Nuts into the top channels of both Seat Sliders for future seat installation and 2 x T-Nuts into the bottom channel
25
of the front Seat Slider for the Butt-kicker Mount Pole. Attach Felt Pads to the bottom of the Seat Sliders.
B) Align the holes on the Seat Slider End Plates with the threaded holes on the Seat Sliders. Bolt through and secure with
4 x M8 Countersunk Bolts.
)
A
B
26
A) Align the holes on the Buttkicker Mount Pole with the T-Nuts previously installed in Step 25.
B) Bolt through and secure with 2 x M8 Bolts.
)
A
27
A) Align the front Seat Slider assembly with the T-Nuts previously installed in Step 01a & Step 01b.
B) Bolt through and secure with 2 x Ratchet Handles.
PARTS:
• • 2 x Seat Sliders
• • 4 x Seat Slider
• • 4 x M8 Counter
End Plates
sunk Bolts
• • 4 x Sticky Felt Pads
(35mm x 40mm)
• • 6 x T-Nuts
PARTS:
)
• • 1 x Buttkicker Mount Pole
• • 2 x M8 16mm Bolt
• • 2 x M8 Washers
PARTS:
• • 2 x Seat Slider Ratchet Handles
Repeat
on Other
Side
Repeat
on Other
Side
)
B
18
)
)
A
B
28
A) Align the rear Seat Slider assembly with the T-Nuts previously installed in Step 01a & Step 01b.
B) Bolt through and secure with 2 x Ratchet Handles.
29
Install 2 x T-Nuts in the front and rear outside channels of one of the Wheel Posts.
30
Align the mounting holes on the Tool Kit Holder with the T-Nuts previously installed in Step 29.
Bolt through and secure with 2 x M8 Bolts and Nylon Washers.
19
Video Instruction: bit.ly/nlrbuild
PARTS:
• • 2 x Seat Slider Ratchet Handles
Repeat
on Other
Side
PARTS:
• • 2 x T-Nuts
PARTS:
• • 2 x M8 16mm Bolts
• • 2 x M8 Nylon Washers
• • Tool Kit Holder
