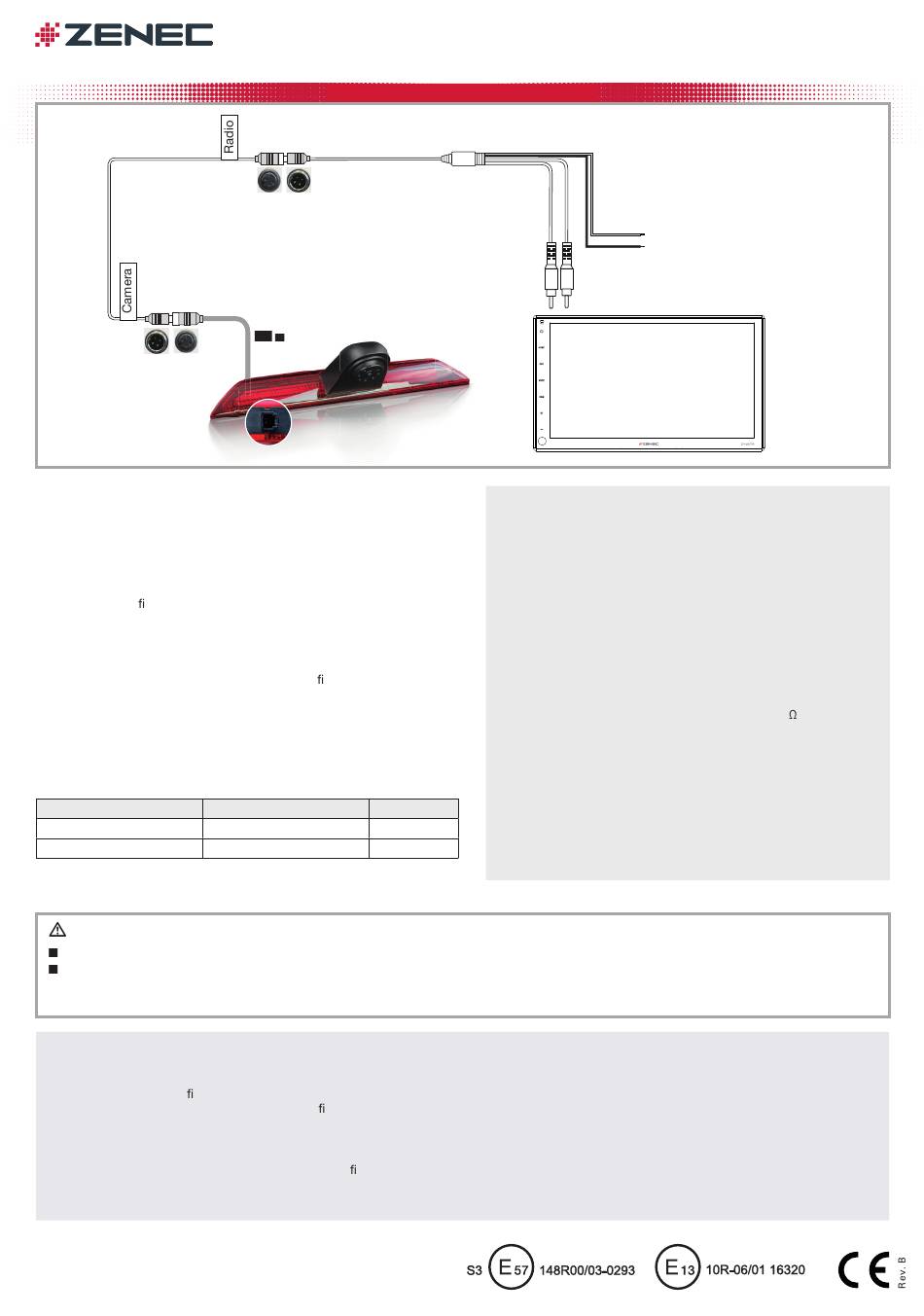

ZENEC ZE-RCE3804 Montageanleitung

MOUNTING INSTRUC TIONS
10.0 m
KEY FEATURES
• Compact, high-resolution plug & play reversing camera for
replacement of the original 3rd OE brake light assembly, for
commercial vehicles, vans and minibuses based on the 7th generation
FORD Transit incl. motorhomes and camper vans
• Rugged injection molded red plastic main body with stainless steel
clip-on mounting clamps
• ECE 148R certi ed brake light assembly (retaining the road
homologation approval)
• Cam sensor with 140° diagonal viewing angle for a wide surveillance
area behind the vehicle
• Manually adjustable vertical image section of the camera sensor with
+20° to -20° range to hit individually preferred eld of view
• IR-LED lighting with 6 LEDs and dynamic brightness control via LDR
element
• Integrated microphone for monitoring of environmental sounds via
control unit
• Separable 3-piece system cable of 10 m length with nut secured 4-pin
connectors
Model Type
FORD Transit, all versions* 7th Generation
FORD Transit, all versions* 7th Generation, 2019 Facelift
*Commercial vehicles, vans, minibuses and other versions based on 7th Gen vehicle hull
structure such as motorhomes with swing out rear doors and 3rd brake light at rear top section.
CAUTION:
Use the included connection cable exclusively. Altering or replacing it will void your warranty.
The camera is water- and dustproof and has been licensed according to the international standard IP68. However, vehicle cleaning using high
pressure water and steam jet devices may still lead to damage of IP68 rated camera models by water intrusion. Keep a distance of at least one
meter between the water nozzle and the camera housing.
INSTALLATION:
The OE brake light insert can be unclipped from the vehicle. Access to
the stainless steel brackets to unlock the OE brake light is vehicle type
dependent. Two basic ttings exist: the brake light insert is mounted
directly on the sheet metal body or else, it is xed to the vehicle in a
black plastic frame. Vehicles with plastic frame allow to unscrew the
frame / brake light assembly, while Transit models with fully integrated
brake lights must be accessed via vehicle interior. Remove the plastic
covers in the roof area of the vehicle to unlock the xation clamps of
the OE brake light with needle nose pliers. Once the brake light is lose,
unplug the power supply connector on the backside.
ZENEC by ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland
EU Legal Representative: ACR S & V GmbH ∙ Industriestrasse 35 ∙ D-79787
Lauchringen ∙ Germany ∙ www.zenec.com
0.17 m
Microphone audio signal
0.7 m 0.7 m
Input socket for brake light power
supply connector of vehicle
Model Year
2014 − 2019
as of 2019
RE AR VIE W C AMER A FOR FORD TR ANSIT
0.15 m
Red: CAMERA PWR (+12V)
Black: GND
White RCA: Yellow RCA:
Camera (CVBS) video signal
Bright re ecting Silver (chrome)
Pantone Warm Red CV
Illuminated
TECHNICAL SPECIFICATIONS Infrared
Image device Cam:
Image sensor type:
TV system:
View angle:
Native sensor pixel matrix:
Image relevant resolution:
Lens focal length:
Frame rate:
Signal to noise ratio:
Dynamic contrast:
Light sensitivity:
Video output:
White balance:
Backlight compensation:
Gamma correction:
Gain control:
Sync system:
Power supply:
Current consumption (@12 V DC): 80 mA ±10 mA
IP protection rating:
Operating temperature:
For OE brake light with plastic frame: Unclip the plastic frame from
the OE brake light and re-install it on the ZE-RCE3804 cam. Next,
route the 10 m extension cable from the dashboard to the mounting
location of the camera. Connect the A/V RCA connectors to the
appropriate cam inputs of your head unit, as indicated in the wiring
diagram above. Then connect the red/black power supply wires to the
cam power outputs of your HU. Insert the power supply connector on
the backside of the ZE-RCE3804 cam housing. With all wiring steps
complete, insert the cam into the sheet metal recess and press the
cam into position until the stainless steel clips lock in place.
ZE-RCE3804 ZE-RCE3804
SHARP RJ2331 CCD sensor
(with AA9050)
1/3" / 8.5 mm CMOS sensor
NTSC / 30 fps
140° diagonal
976 (H) x 494 (V)
700 TV lines
2.6 mm
30 fi elds/sec., interlaced
> 48 dB
> 60 dB
30 Lux with IR-LED ON
1.0 ±0.2 Vp-p, 75 , CVBS
Auto
Auto
0.45
Auto
Auto
12 DCV
IP68
-20° C ~ +70° C
