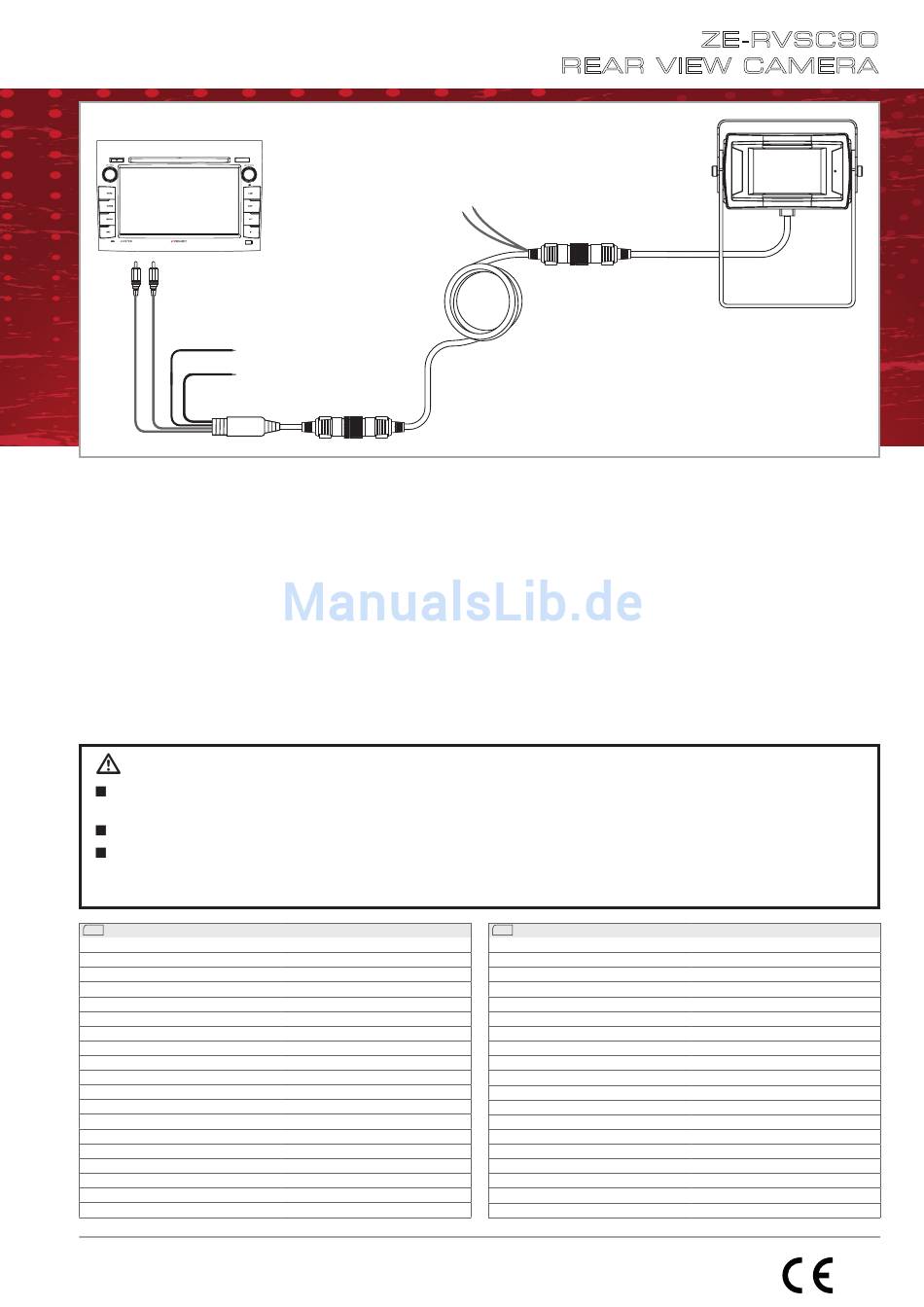

Head unit
Yellow: video signal to head unit
Red: audio signal from microphone to head unit
Red: CAMERA PWR (+12V)
Black: GND
KEY FEATURES
• Compact high resolution rear view camera
• LDR controlled day / night mode with 9 night vision IR-LED's
• User switchable picture inversion (mirror image)
• 3 m main wire harness length with 6PIN connector system – incl. 15 m extension cable
• Mounting brackets for 38 mm or 60 mm mounting clearance included in the set
• Powder-coated aluminum die cast housing
DESCRIPTION:
This ZENEC rear view camera model has been developed for use with motorhomes, camper vans and trailers. The use of high
quality parts and materials for best weather resistance and longevity, as well as the clever construction according to IP69K
protection class allow for a perfect operation in the afore mentioned target vehicles.
The ZE-RVSC90 offers a large horizontal viewing angle and can be operated in inverted or non-inverted picture mode to comply
with a great variety of RVC monitors and head units.
This product is compatible with a wide variety of 2-DIN A/V receivers of the aftermarket and the ZENEC E>GO product line up,
including ZENEC 2-DIN infotainers and naviceivers.
NOTES:
Following the latest trend in vehicle electronics, newer cars mainly use a pulse width modulated power feed for outer
hull lights, which is unsuitable for imaging/video electronics, as it causes considerable picture distortion.
Use the included connection cable exclusively. Altering or replacing it will void your warranty.
The camera is 100% water- and dustproof and has been tested according to international standard IP69K. However,
cleaning your vehicle with a high pressure washer, may damage the housing sealings.
Keep a distance of at least one meter between water nozzle and camera housing.
:
Technical Specifi cations
EN
Image device:
Lens focal length:
TV system:
View angles:
Native sensor resolution:
Resolution of video-out:
Signal to noise ratio:
Light sensitivity:
Video output:
White balance:
Gain control:
Sync system:
Power supply:
Current consumption:
IP protection rating:
Operating temperature:
Dimensions w/short bracket (HxWxD):
Dimensions w/long bracket (HxWxD):
Weight:
ZENEC ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland
EU Legal Representative:
ACR S & V GmbH ∙ Industriestraße 35 ∙ D-79787 Lauchringen ∙ Germany
Connect the bare ends of
the two green wires for
inverted picture.

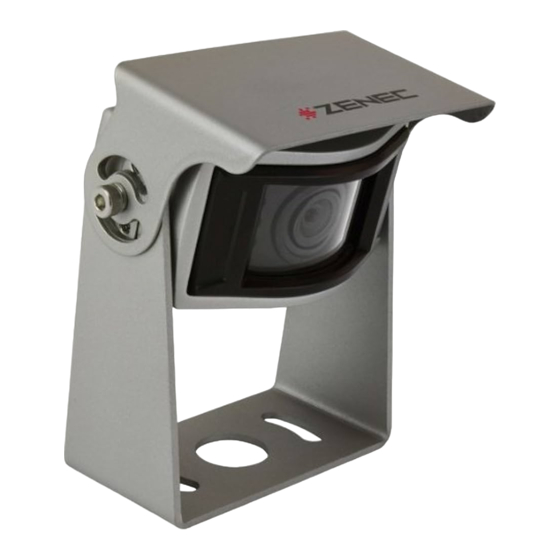

⅓" / 8.5 mm Sony CCD sensor
