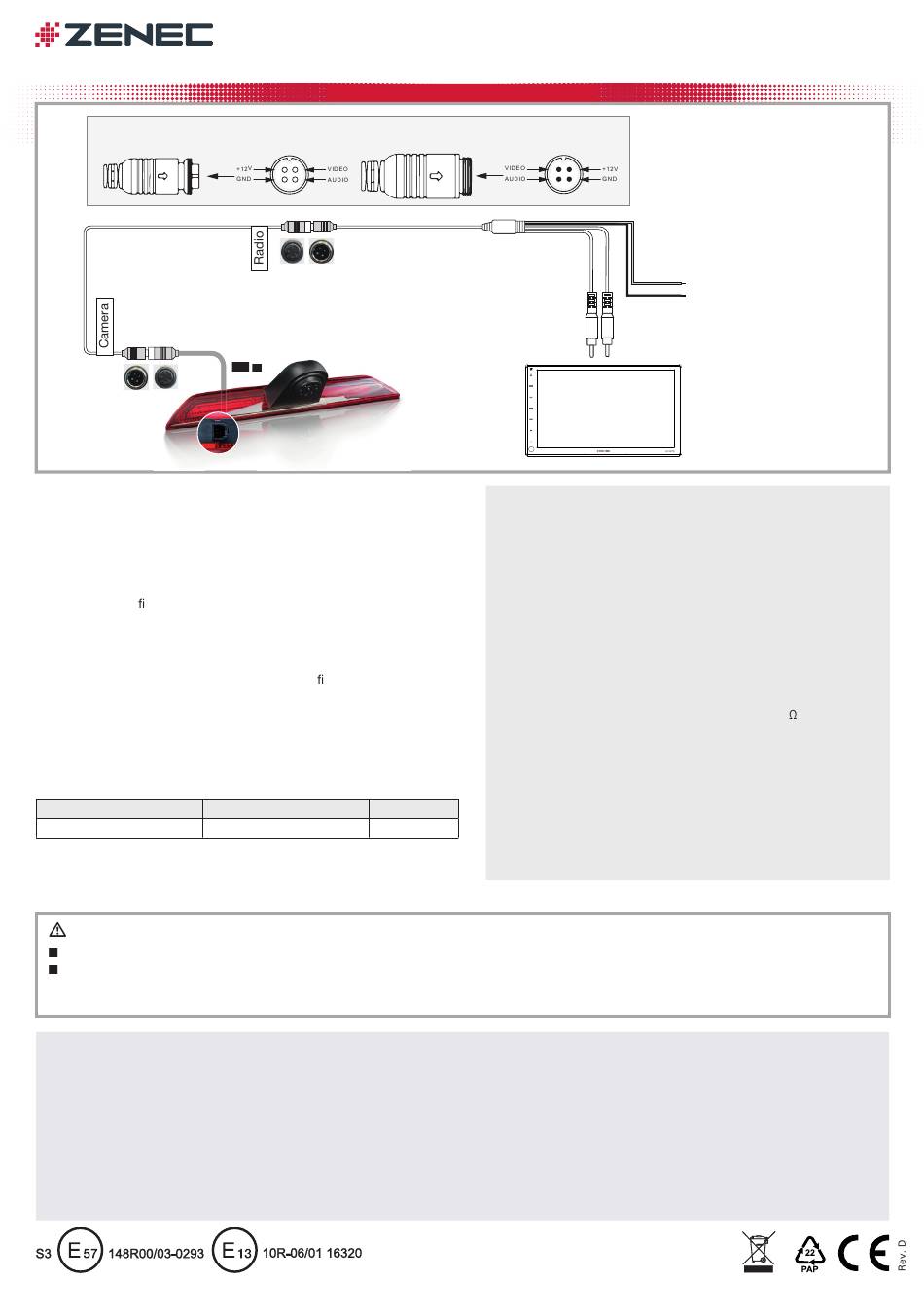

ZENEC ZE-RCE3804 Montageanleitung

MOUNTING INSTRUC TIONS
Pin assignment for M12 4pin connector
10.0 m
KEY FEATURES

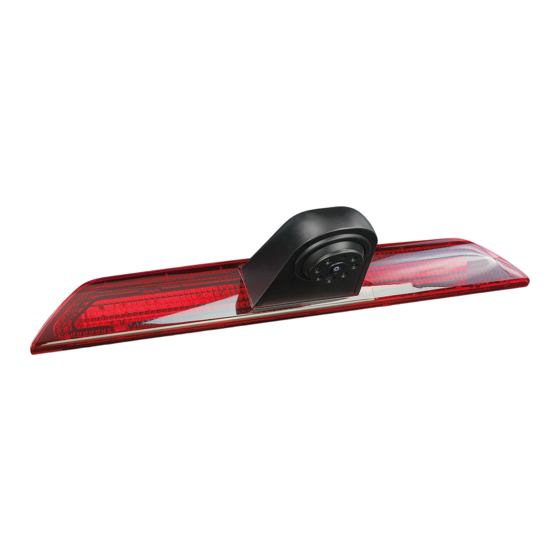

• Compact, high-resolution plug & play reversing camera for replace-
ment of the original 3 rd OE brake light assembly, for commercial
vehicles, vans and minibuses based on the 7
sit incl. motorhomes and camper vans from 2019 Facelift and up
• Rugged injection molded red plastic main body with stainless steel
clip-on mounting clamps
• ECE 148R certi ed brake light assembly (retaining the road
homologation approval)
• Cam sensor with 140° diagonal viewing angle for a wide surveillance
area behind the vehicle
• Manually adjustable vertical image section of the camera sensor with
+20° to -20° range to hit individually preferred eld of view
• IR-LED lighting with 6 LEDs and dynamic brightness control via LDR
element
• Integrated microphone for monitoring of environmental sounds via
control unit
• Separable 3-piece system cable of 10 m length with nut secured 4-pin
connectors
Model
FORD Transit, all versions*
*Commercial vehicles, vans, minibuses and other versions based on 7th Gen vehicle hull
structure such as motorhomes with swing out rear doors and 3rd brake light at rear top section.
Only for direct mounting, not compatible with vehicles which are equipped with optional brake
light plastic housing.
CAUTION:
Use the included connection cable exclusively. Altering or replacing it will void your warranty.
The camera is water- and dustproof and has been licensed according to the international standard IP68. However, vehicle cleaning using high
pressure water and steam jet devices may still lead to damage of IP68 rated camera models by water intrusion. Keep a distance of at least one
meter between the water nozzle and the camera housing.
INSTALLATION:
The OE brake light insert can be unclipped from the vehicle. Access
to the stainless steel clips of the original brake light insert is via the
vehicle interior and the service opening in the rear ceiling area.
Use needle-nose pliers to press the clips together. Once the brake
light is lose, unplug the power supply connector on the backside.
Next, route the 10 m extension cable from the dashboard to the
mounting location of the camera. Connect the A/V RCA connectors to
the appropriate cam inputs of your head unit, as indicated in the wiring
diagram above.
ZENEC by ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland EU Legal Representative: ACR S & V GmbH ∙ Industriestr. 35 ∙ D-79787 Lauchringen ∙ Germany
www.zenec.com
(female)
1 4
2 3
0.17 m
0.7 m 0.7 m
Input socket for brake light power
supply connector of vehicle
generation FORD Tran-
th
Type Model Year
7 th Generation, 2019 Facelift as of 2019
RE AR VIE W C AMER A FOR FORD TR ANSIT
(male)
4 1
3 2
0.15 m
White RCA:
Microphone audio signal
Bright re ecting Silver (chrome)
Pantone Warm Red CV
Illuminated
Infrared
TECHNICAL SPECIFICATIONS
Image device Cam:
Image sensor type:
TV system:
View angle:
Native sensor pixel matrix:
Image relevant resolution:
Lens focal length:
Frame rate:
Signal to noise ratio:
Dynamic contrast:
Light sensitivity:
Video output:
White balance:
Backlight compensation:
Gamma correction:
Gain control:
Sync system:
Power supply:
Current consumption (@12 V DC): 80 mA ±10 mA
IP protection rating:
Operating temperature:
Then connect the red/black power supply wires to the cam power
outputs of your HU. Insert the power supply connector on the
backside of the ZE-RCE3804 cam housing. With all wiring steps
complete, insert the cam into the sheet metal recess and press the
cam into position until the stainless steel clips lock in place.
ZE-RCE3804 ZE-RCE3804
Red: CAMERA PWR (+12V)
Black: GND
Yellow RCA:
Camera (CVBS) video signal
SHARP RJ2331 CCD sensor
(with AA9050)
1/3" / 8.5 mm CMOS sensor
NTSC / 30 fps
140° diagonal
976 (H) x 494 (V)
700 TV lines
2.6 mm
30 fi elds/sec., interlaced
> 48 dB
> 60 dB
30 Lux with IR-LED ON
1.0 ±0.2 Vp-p, 75 , CVBS
Auto
Auto
0.45
Auto
Auto
12 DCV
IP68
-20° C ~ +70° C
