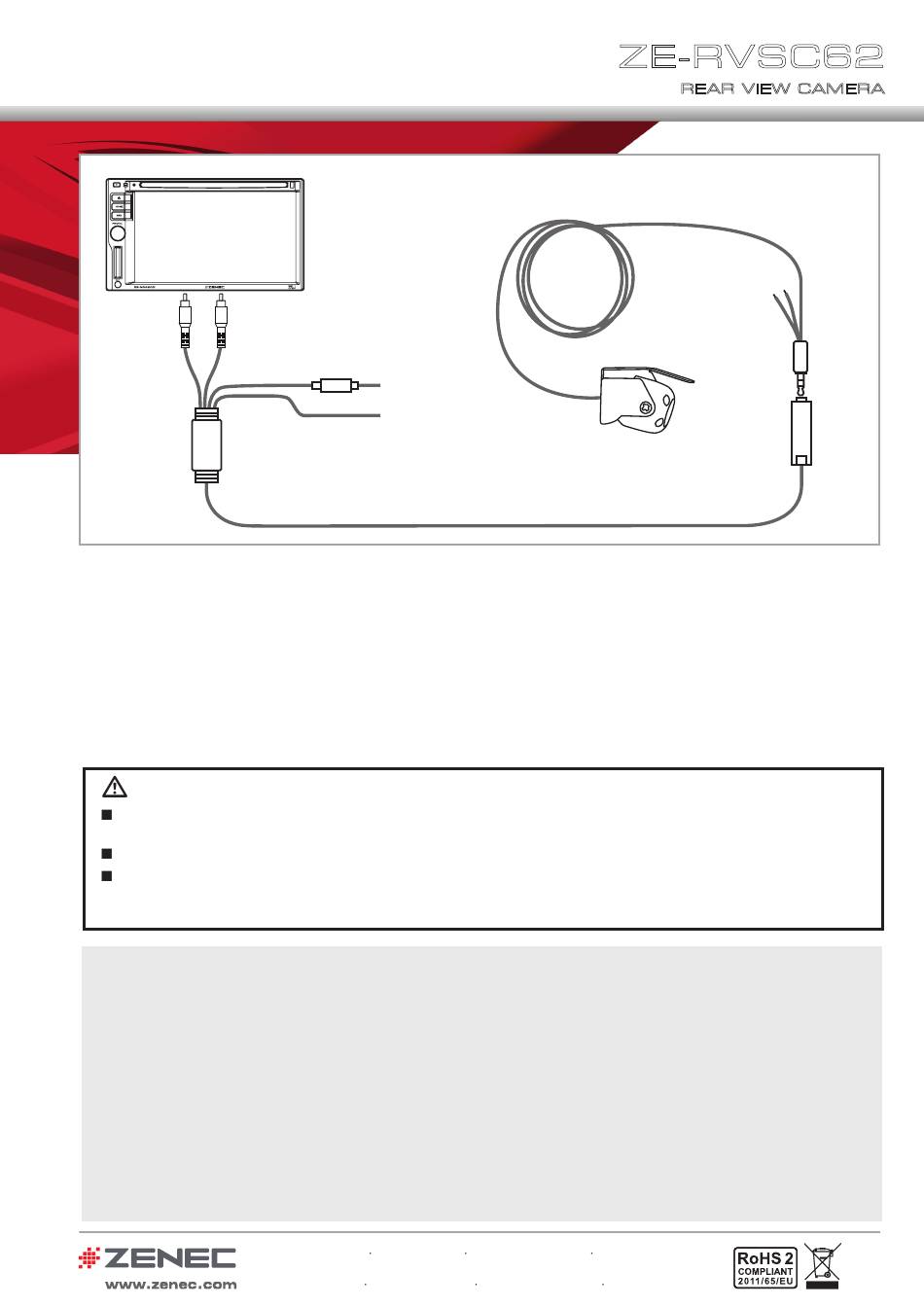

MOUNTING
INSTRUCTIONS
RCA yellow: Connect to RVC video-in
RCA White: Connect to Mic-in, where applicable
KEY FEATURES

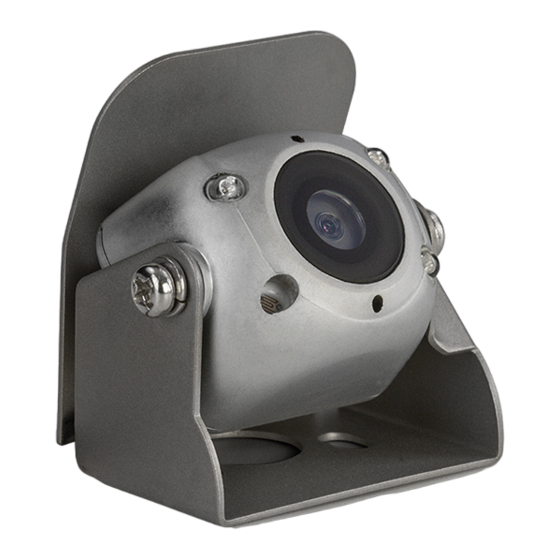

• Compact high resolution rear view camera
• Automatic day and night mode with four night vision IR LED's
• Built-in microphone
• Aluminum die cast housing
• 3 m length of main wire harness with 15 m extension wire included
DESCRIPTION:
This ZENEC rear view camera model has been developed for use with mobile homes and caravans. The use of high quality parts
and materials for best weather resistance and longevity, as well as the clever construction according to IP68 protection class
allow for a perfect operation in the afore mentioned target vehicles.
CAUTION:
Most vehicles of newer production date use a pulse width modulated power feed for outer hull lights, which is
unsuitable for imaging/video electronics, as it causes considerable picture distortion.
Use the included connection cable exclusively. Altering or replacing it will void your warranty.
The camera is water- and dustproof and has been tested according to international standard IP68. However, cleaning
your vehicle with a high pressure washer, may damage the rubber seals of the housing. For that reason you are asked
to steadily keep a distance of at least one meter between water nozzle and camera housing.
Technical Specifications:
Image device:
0.25"/6.4 mm Micron Aptina CCD sensor
Lens focal length:
F 1.9
TV system:
NTSC / 60 fps
View angles:
115° horizontal / 80° vertical
Native sensor resolution: 680 x 512 pixels
Resolution of video-out: > 420 TV lines
Signal to noise ratio:
> 48 dB
Light sensitivity:
0.5 Lux
Video output:
1.0 Vp-p, 75 ohms
White balance:
Auto
Gain control:
Auto
Sync system:
Auto
Power supply:
DC 6~30V
Current consumption:
60mA (DC12V) / ≤ 2.5 W
IP protection rating:
IP68
Operating temperature:
-30°C~+75°C, RH 95% max.
Mobile Home Rear View Camera and Camera Switch Box
Dimensions (WxHxD):
36 x 31 x 40 mm
Weight:
60 g
Red: DC 6 ~ 24 V
Fuse 0.5 A
Black: GND
ZENEC by ACR AG Bohrturmweg 1 CH-5330 Bad Zurzach Switzerland
EU Legal Representative:
ACR S & V GmbH Industriestraße 35 D-79787 Lauchringen Germany
ZE-RVSC62
3.0 m
Green wire:
Cut wire (ex-works) –
inverted picture
Both wire ends twisted
connected – normal
15.0 m
Technische Spezifikationen:
Kamerasystem:
0.25"/6.4 mm Micron Aptina CCD Sensor
Brennweite Linse:
F 1.9
TV System:
NTSC / 60 fps
Betrachtungswinkel:
Horizontal 115° / Vertikal 80°
Native Sensor Aufl ösung:
680 x 512 Pixel
Aufl ösung Ausgangssignal: > 420 TV Linien
Signal/Rauschabstand:
> 48 dB
Lichtempfi ndlichkeit:
0.5 Lux
Video Ausgang:
1.0 Vp-p, 75 Ohm
Weissabgleich:
Automatisch
Helligkeitsabgleich:
Automatisch
Synchronisation:
Automatisch
Spannungsversorgung:
DC 6~30V
Stromverbrauch:
60mA (DC12V) / ≤ 2.5 W
Schutzklasse:
IP68
Betriebstemperatur:
-30°C~+75°C, RH 95% MAX.
Dimensionen (BxHxT):
36 x 31 x 40 mm
Gewicht:
60 g
REAR VIEW CAMERA
3.5 mm
jack
Rev. A
