ZENEC ZE-RVC125MT Montageanleitung

MOUNTING
INSTRUCTIONS

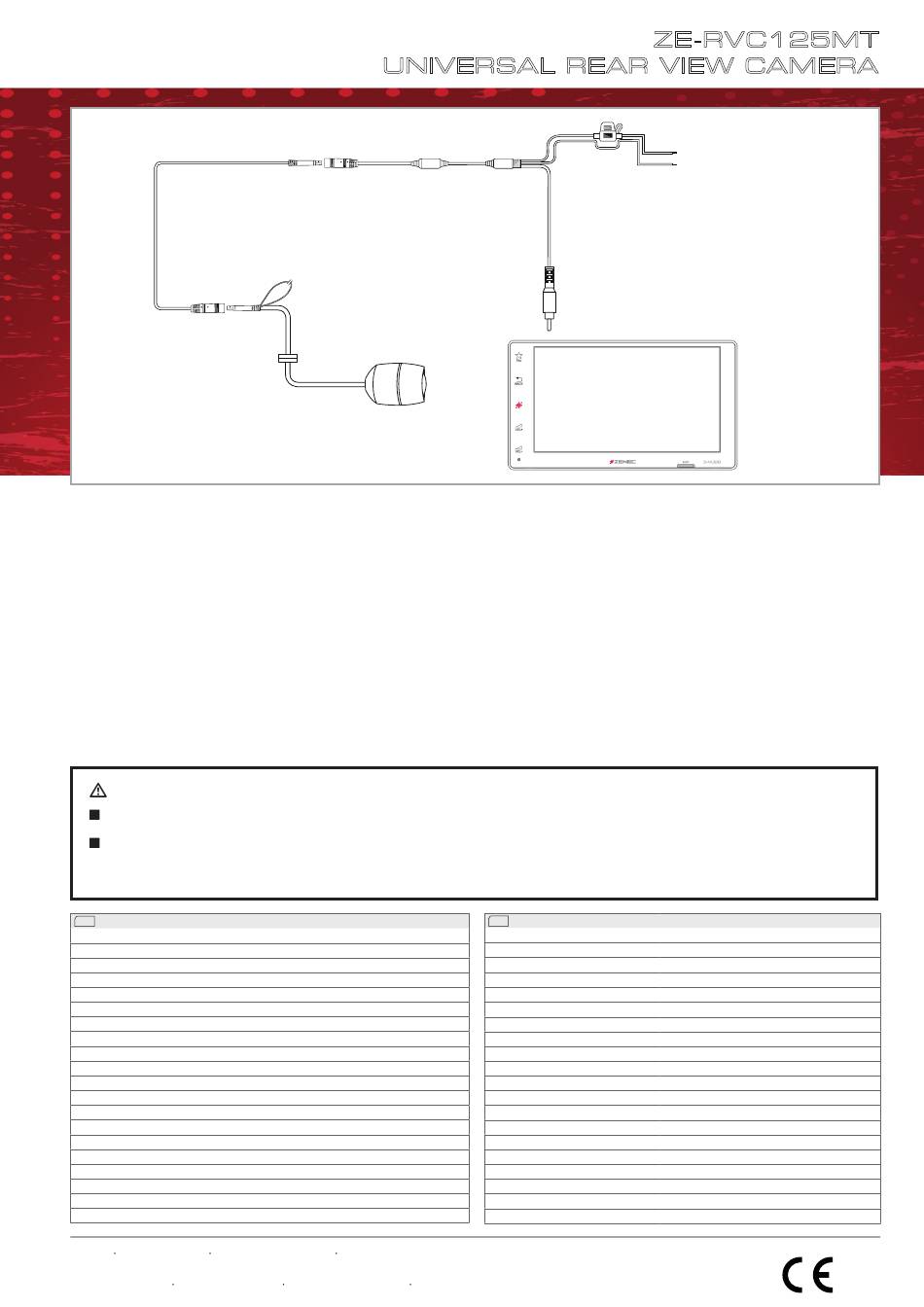

7.0 m
Rear camera mode: Green cable open
Front camera mode: Green cable twisted
KEY FEATURES
• Compact, high-resolution universal rear view camera
• Three different mounting solutions included in set content
• System design allows front- or rear- mounting and use of camera
• Normal or mirror image picture output selectable
• Detailed high contrast picture ideally suited for twilight conditions
• Separable 3-part system cable, with cable lengths of 0.7m + 7.0m + 0.7m
DESCRIPTION:
The ZENEC universal cam model ZE-RVC125MT can be used to retrofit almost any vehicle due to the compact design and the
three different mounting options. The outputted normal or mirror image allows the utilization of this model as front- or as rear
view camera. The usage of high quality materials, together with the clever construction according to protection class IP69K,
guarantees you a high weather resistance and a long lifetime.
This product is compatible with a wide variety of 2-DIN A/V receivers of the aftermarket and the ZENEC E>GO product line up,
including ZENEC 2-DIN Infotainers and Naviceivers.
CAUTION:
Use the included connection cable exclusively. Altering or replacing it will void your warranty.
The camera is water- and dustproof and has been licensed according to the international standard IP69K. However,
vehicle cleaning using high pressure water and steam jet devices may still lead to damage of IP69K rated camera
models by water intrusion. Keep a distance of at least one meter between the water nozzle and the camera housing.
EN Technical Specifications:
Image device:
Lens focal length:
TV system:
View angle:
Native sensor resolution:
Resolution of video-out:
Frame rate:
Signal to noise ratio:
Light sensitivity:
Video output:
White balance:
Backlight compensation:
Gamma correction:
Gain control:
Sync system:
Power supply:
Current consumption:
IP protection rating:
Operating temperature:
Dimensions (HxWxD):
ZENEC Bohrturmweg 1 CH-5330 Bad Zurzach Switzerland
EU Legal Representative:
ACR S & V GmbH Industriestraße 35 D-79787 Lauchringen Germany
UNIVERSAL REAR VIEW CAMERA
0.7 m
¼" / 6.4 mm Aptina ASX340 CMOS sensor
f1.5
NTSC / 60 fps
180°(D) x 140°(H) x 90°(V
680 (H) x 512 (V) pixels
> 420 TV lines
60 fi elds/sec.
> 48 dB
0.5 Lux/F1.2/50IRE
1.0 Vp-p, 75 ohms CVBS
Auto
Auto
0.45
Auto
Auto
DC 12V
40mA (DC12V) / ≤ 480mW
IP69K
-30°C~+75°C
12.5 mm x 12.5 mm x 18.5 mm
2A fuse
0.7 m
Video Out
(connect to Moni-/Naviceiver)
DE Technische Spezifikationen
Kamerasystem:
Brennweite Linse:
TV System:
Betrachtungswinkel:
Native Sensor Aufl ösung:
Aufl ösung Ausgangssignal:
Bildwiederholrate:
Signal/Rauschabstand:
Lichtempfi ndlichkeit:
Video Ausgang:
Weißabgleich:
Belichtungskompensation:
Gamma Korrektur:
Helligkeitsabgleich:
Synchronisation:
Spannungsversorgung:
Stromverbrauch:
Schutzklasse:
Betriebstemperatur:
Abmessungen (HxBxT):
ZE-RVC125MT
Red: CAMERA PWR (+12V)
Black: GND
¼" / 6.4 mm Aptina ASX340 CMOS Sensor
f1.5
NTSC / 60 fps
180°(D) x 140°(H) x 90°(V)
680 (H) x 512 (V) Pixel
> 420 TV Linien
60 Felder/Sek.
> 48 dB
0.5 Lux/F1.2/50IRE
1,0 Vp-p, 75 Ohm CVBS
Automatisch
Automatisch
0.45
Automatisch
Automatisch
DC 12V
40mA (DC12V) / ≤ 480mW
IP69K
-30°C~+75°C
12,5 mm x 12,5 mm x 18,5 mm
Rev. A
