Veratron LINK UP Serie Bedienungsanleitung Seite 9

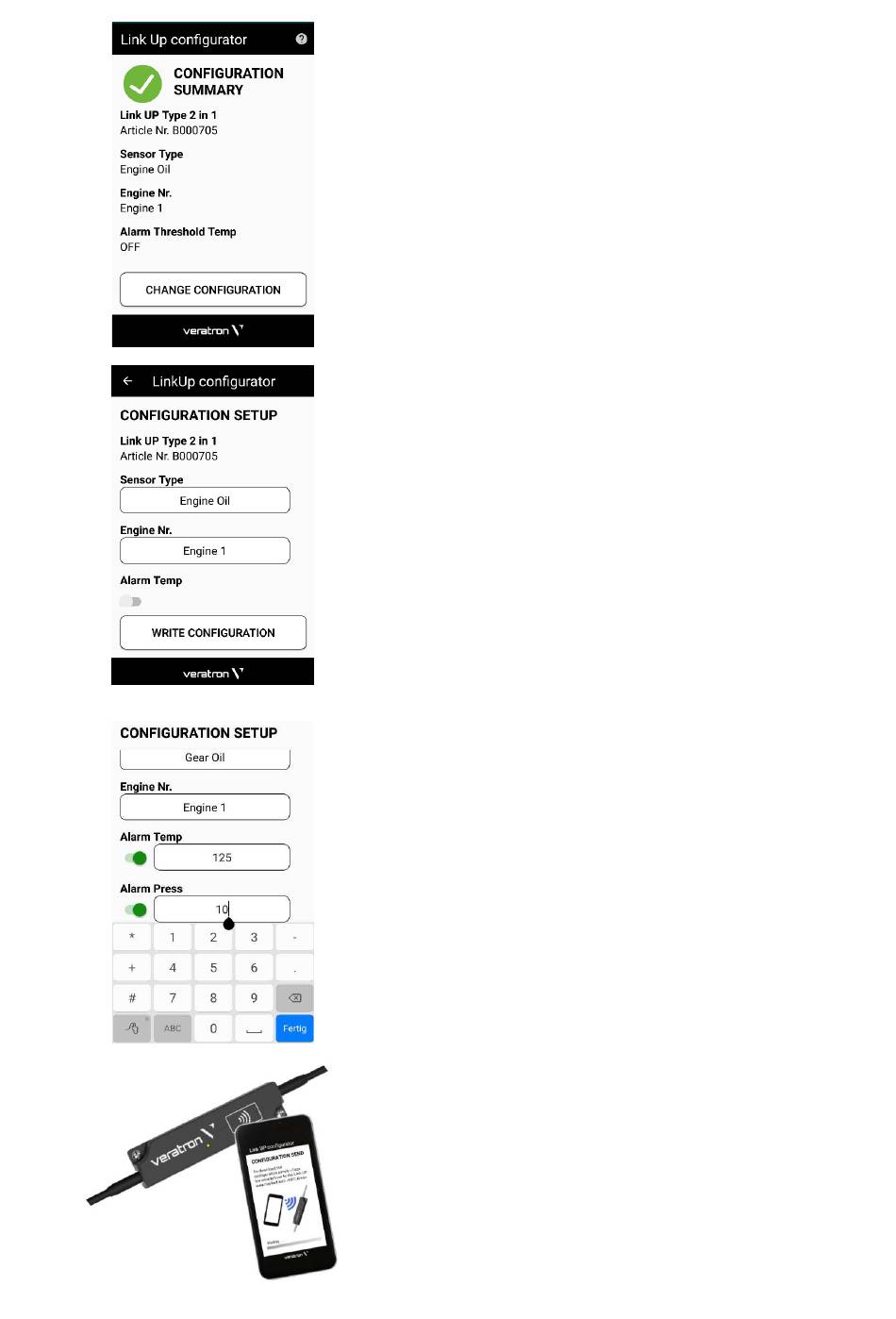

2. After the readout, the App will show the "Configuration
Summary", which displays all the current settings of the
device.
To modify the configuration, press the "Change
Configuration" button.
3. As a first step, choose your sensor type out of the options
in the first box. (Sensor for engine oil or transmission oil)
Then choose the engine instance so that the LinkUp
gateway will correctly transmit the data over NMEA
2000®.
4. Now you can decide, whether you want the alarms
enabled or not, and at which value these alarms should
be triggered.
Once the settings are completed, press the "Write
Configuration" button to prepare the download.
5. To download the configuration, simply "tap" the
smartphone again onto the LinkUp wireless area, as
described on step 1.
The configuration is instantaneously transferred to the
device, and the new "Configuration Summary" is
displayed.
CONFIGURATION
B001032
