Rating plates

The rating plate of the dock leveller is located underneath the dock leveller platform. The specified nominal
load specified must not be exceeded.
1 Distributing company and
address
2 Model
3 Year of manufacture
3.4

Labels on the dock leveller

The following labels are located on the dock leveller and on the frame of the installation point.

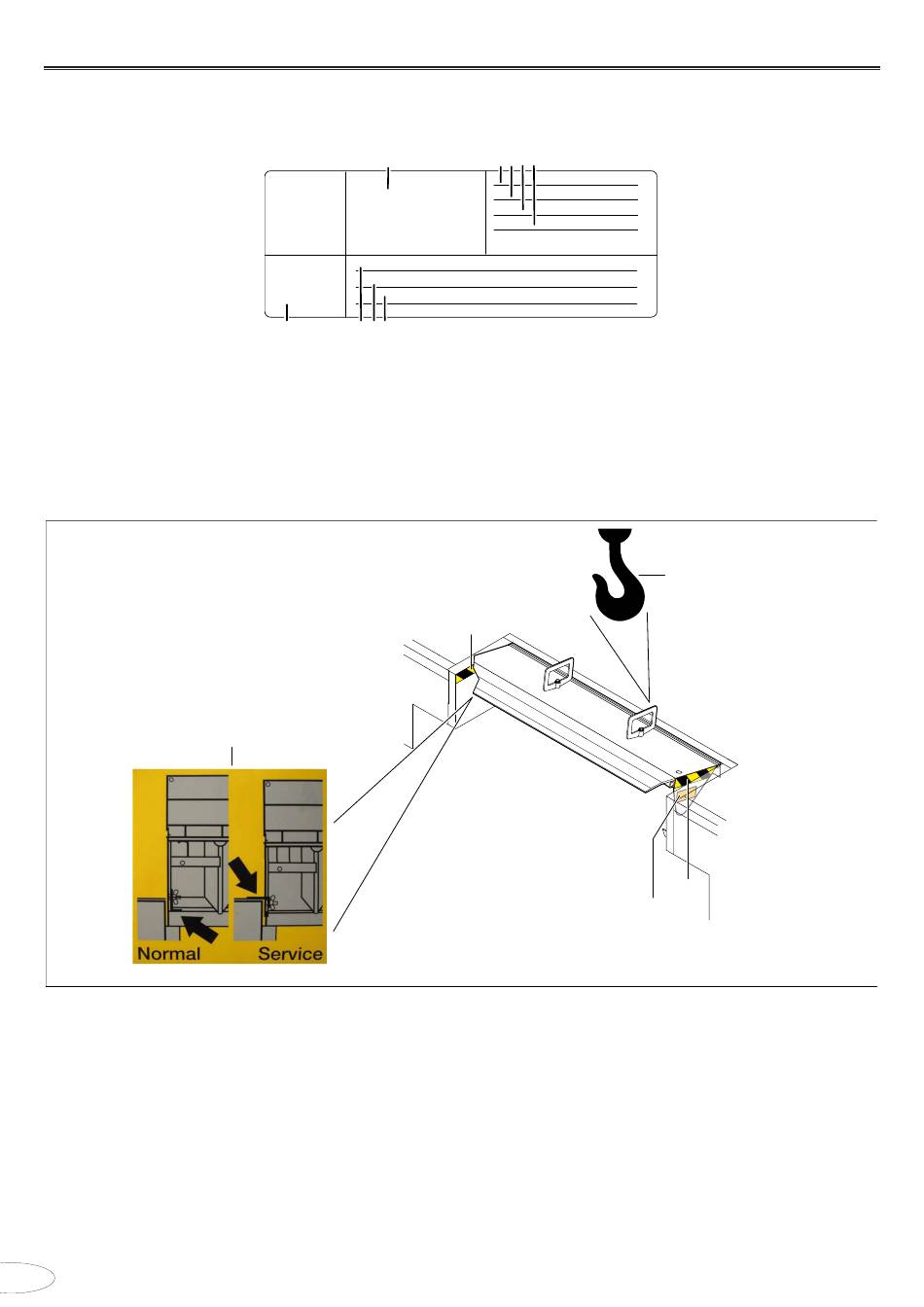

Fig. 3: Exemplary representation, illustration may deviate from the product
1 slinging points for lifting gear
2 black/yellow marking stripes (on both sides) on the dock leveller platform and on the frame of the
installation point as an indicator of tripping hazards
3 orange markings (on both sides) on the side panels of the dock leveller platform (visible when the dock
leveller platform is above the permitted inclination range of + 12.5 %)
4 instructions for mounting the maintenance bracket
22 - EN
1
7 8 9
6
4 Nominal load
5 empty field
6 Manufacturer and address
4
3 4 5
2
7 Serial no.
8 Order no.
9 Customer's purchase no.
2
These assembly, operation and maintenance instructions must be kept for the entire period of use!
1
2
3
