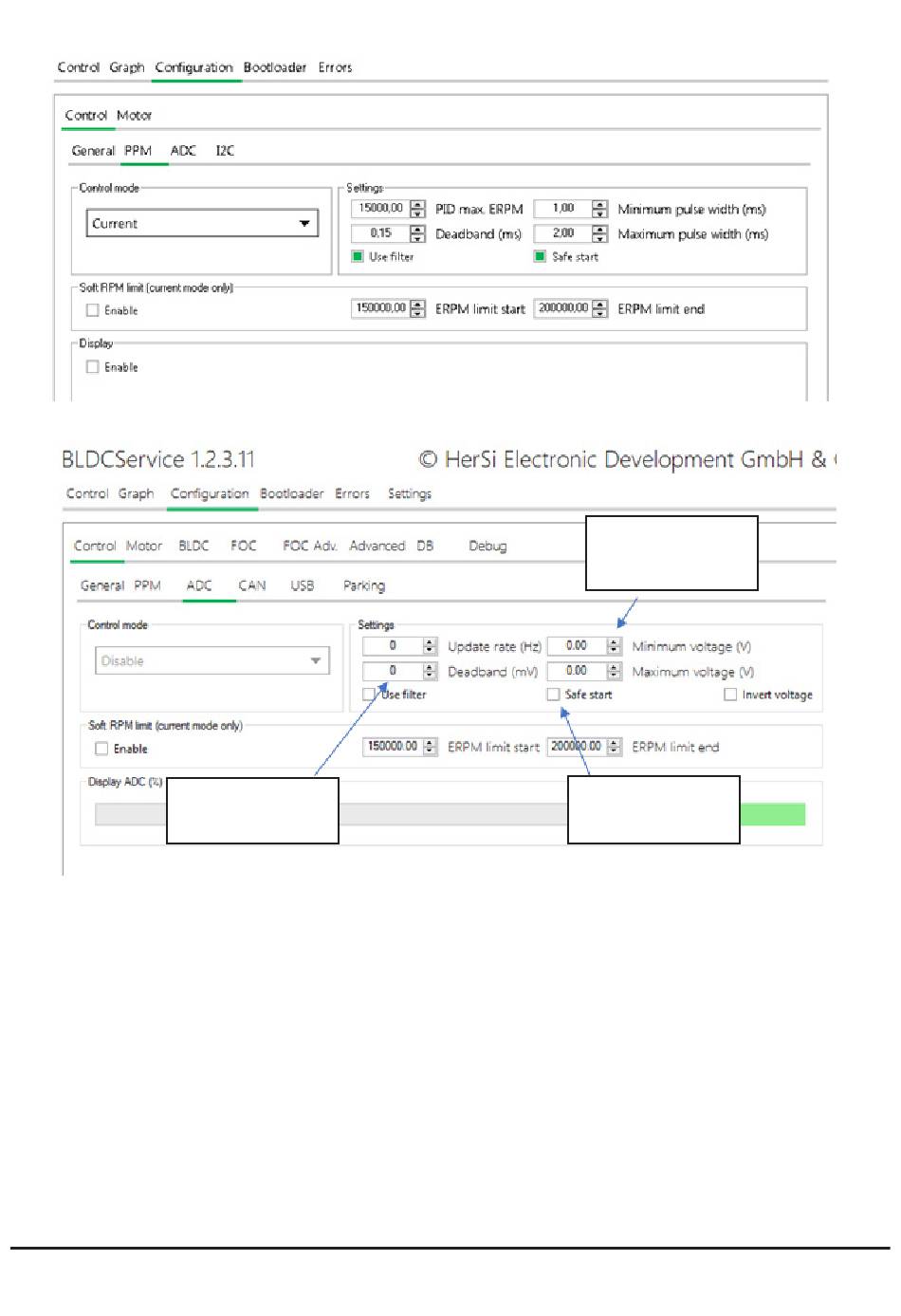

The figure shows the setting using the example for the PPM input in connection with the current control.
Dead zone around
the „motor off" posi-
tion
The figure shows the setting using the example for analog control. For the setting work it is advisable to work with low
voltages (12...24V).
We are also happy to support you with the commissioning and setup of your application.

7.3 Miscellaneous

7.3.1 Graph function
A very practical graph function is also integrated in the scope of functions of the user interface.
This allows a live observation of the parameters over time. You can access this function via the
„Graph" tab. There you have to click the check box „Activate graph" to start the display. You can
thus monitor the parameters such as setpoint, voltage, current, temperature.
Brushless DC Controller HST-50
Orginal operating manual
Operation of the graphical user interface / accessories
Voltage range (min.
and max.) of en-
coder
Prevents startup if en-
coder is not in „Motor
Off" position
