V-3 INSTALLATION OF THE DRAINING SYSTEMS

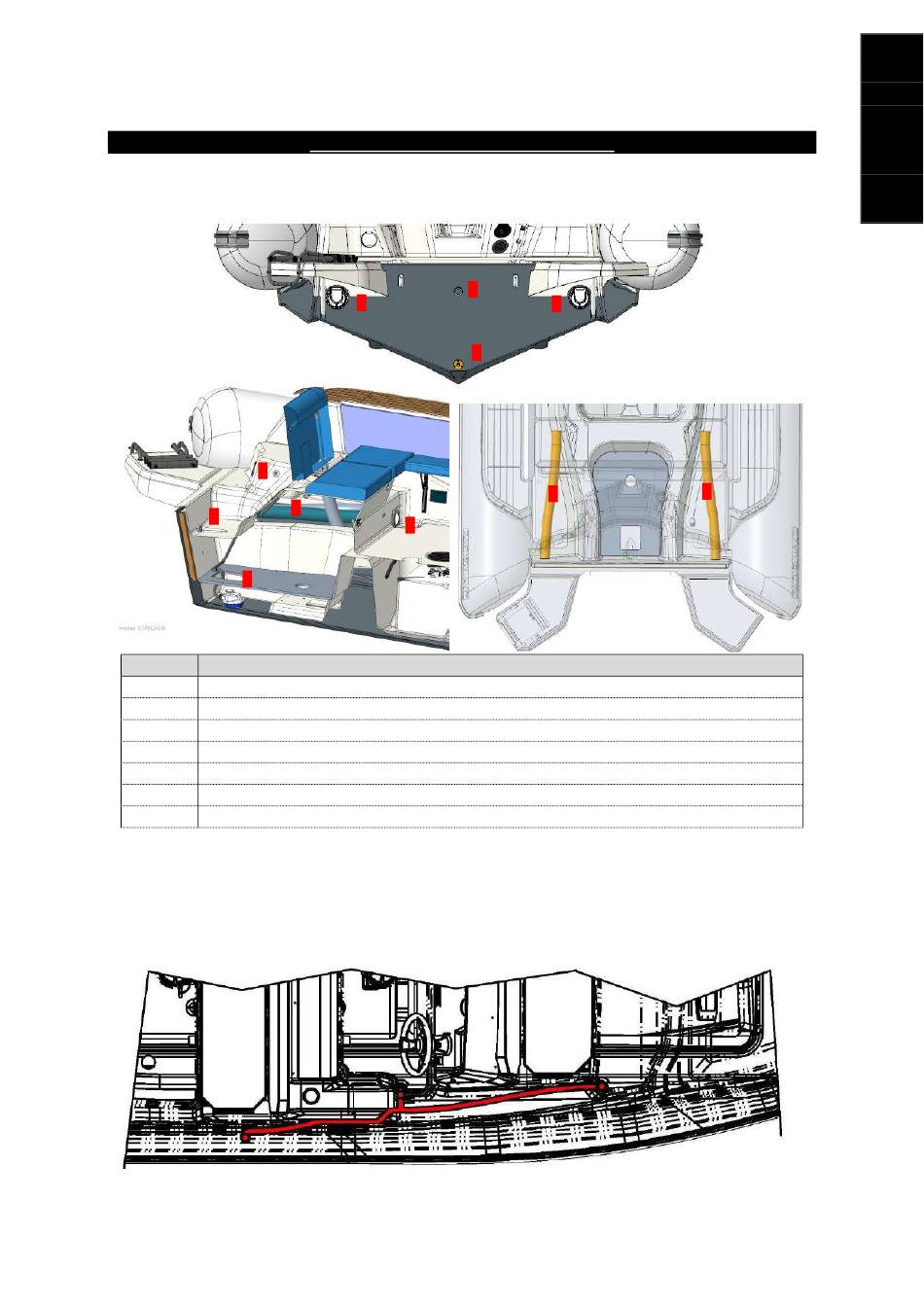

V-3-1-Description of the essential functional elements

3
1
4
Ref.
1 Engine recess drain
2 Hull scupper
3 Bilge pump outlet
4 Bilge pump
5 High flow rate self-bailer with non-return valve
6 Drain pipes
7 Scuppers
V-3-2 Draining of water from the deck
The boat is self-draining, with a rainwater drainage system:
2 scuppers on the deck, one forward of the console and a second forward of the bolster.
Both are connected to a scupper that passes through the hull.
INSTALLATION AND CIRCUIT - DRAINING
5
6
7
