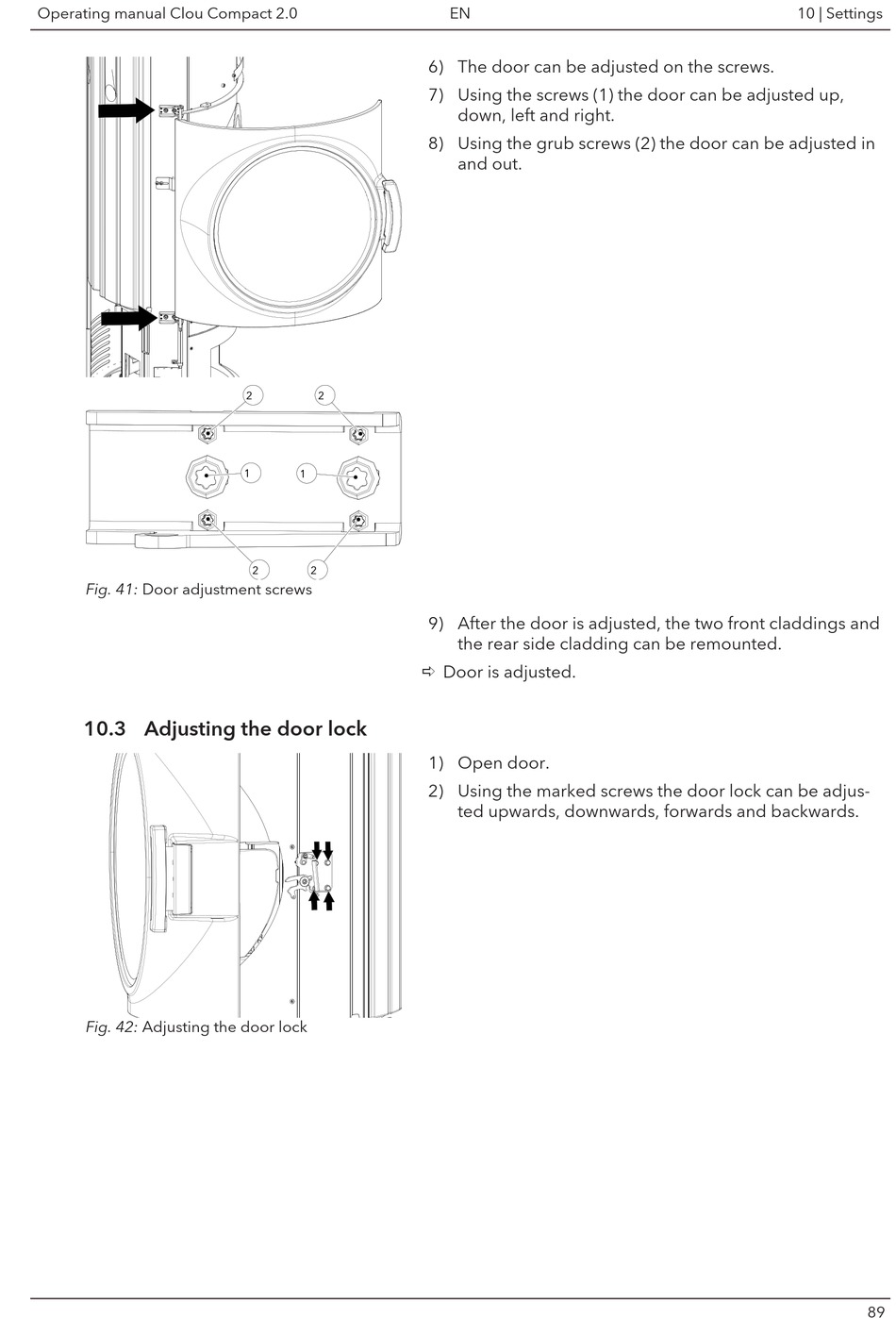

Fig. 41: Door adjustment screws

10.3 Adjusting the door lock

Fig. 42: Adjusting the door lock
2 2
1 1
2 2
EN
6) The door can be adjusted on the screws.
7) Using the screws (1) the door can be adjusted up,
down, left and right.
8) Using the grub screws (2) the door can be adjusted in
and out.
9) After the door is adjusted, the two front claddings and
the rear side cladding can be remounted.
ð Door is adjusted.
1) Open door.
2) Using the marked screws the door lock can be adjus-
ted upwards, downwards, forwards and backwards.
