ASSEMBLY MANUAL
CAUTION! Follow the steps below during the assembly and use tools supplied with the product.
Prepare sufficient space for the assembly operation.
It is advisable to assemble the product with another person because of the weight of some elements.

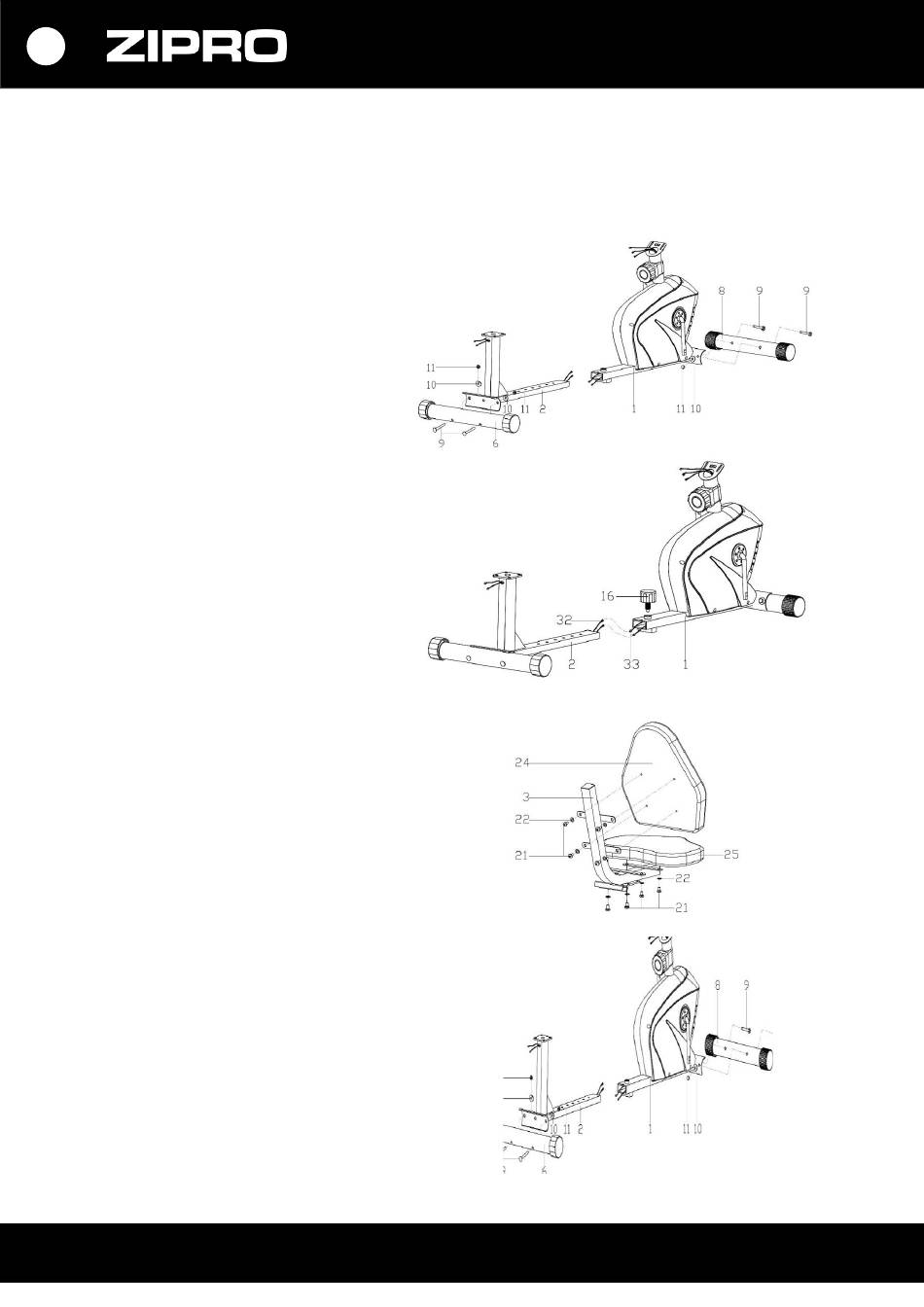

STEP 1.
Fix the rear (6) and front base (8)
to the front (1) and rear main frame (2)
using bolts (9), curved washers (10)
and nuts (11).
NOTE! Remove any plastic or cardboard
safety inserts before assembly.
STEP 2.
Connect the heart rate cables (33)
to the heart rate connecting cables (32).
Join the front main frame (1) and rear
frame (2) with the frame adjustment knob
(16).
STEP 3.
Install the saddle (25)
and backrest (24) on the saddle
and backrest frame (3) with Allen bolts
(21) and flat washers (22).
STEP 4.
Fix the saddle and seatback frame (3)
to the rear main frame (2) with Allen bolts
(21) and flat washers (22).
NOTE! Before using the device, make sure
the saddle is stable in the guide.
