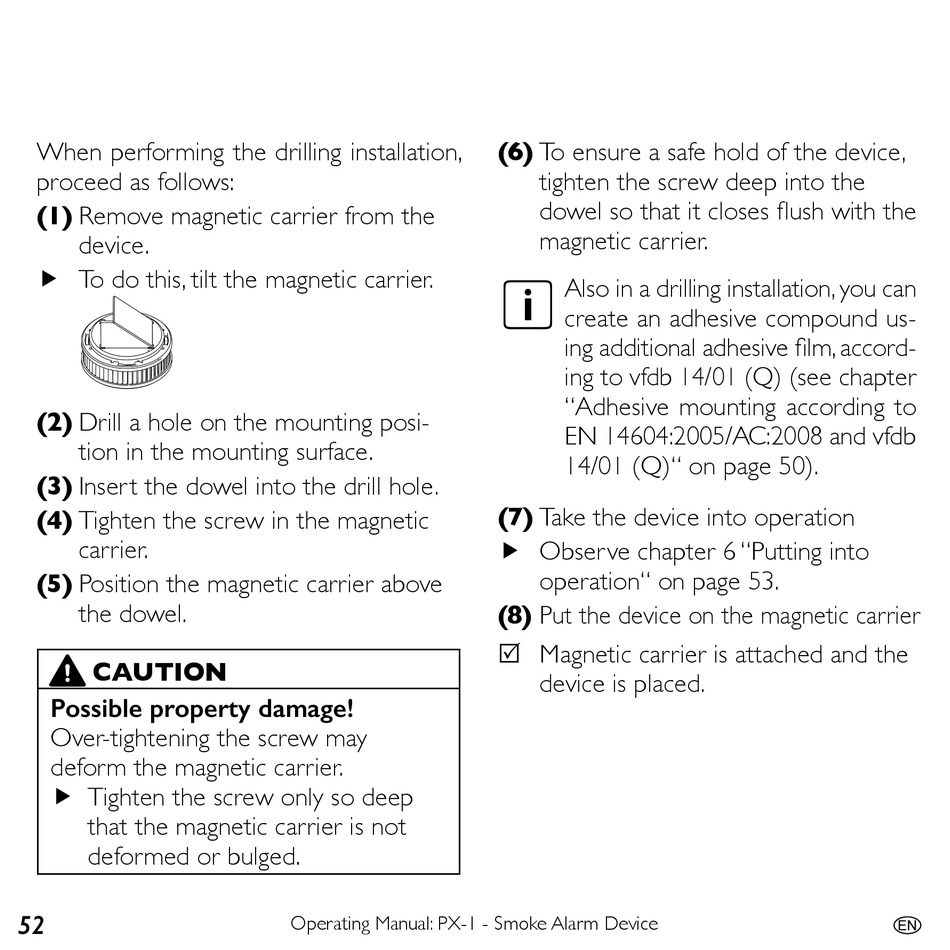

When performing the drilling installation,
proceed as follows:
(1) Remove magnetic carrier from the
device.
f To do this, tilt the magnetic carrier.
(2) Drill a hole on the mounting posi-
tion in the mounting surface.
(3) Insert the dowel into the drill hole.
(4) Tighten the screw in the magnetic
carrier.
(5) Position the magnetic carrier above
the dowel.
CAUTION
Possible property damage!
Over-tightening the screw may
deform the magnetic carrier.
f Tighten the screw only so deep
that the magnetic carrier is not
deformed or bulged.
52
Operating Manual: PX-1 - Smoke Alarm Device
(6) To ensure a safe hold of the device,
tighten the screw deep into the
dowel so that it closes flush with the
magnetic carrier.
Also in a drilling installation, you can
create an adhesive compound us-
ing additional adhesive film, accord-
ing to vfdb 14/01 (Q) (see chapter
"Adhesive mounting according to
EN 14604:2005/AC:2008 and vfdb
14/01 (Q)" on page 50).
(7) Take the device into operation
f Observe chapter 6 "Putting into
operation" on page 53.
(8) Put the device on the magnetic carrier
5 Magnetic carrier is attached and the
device is placed.
