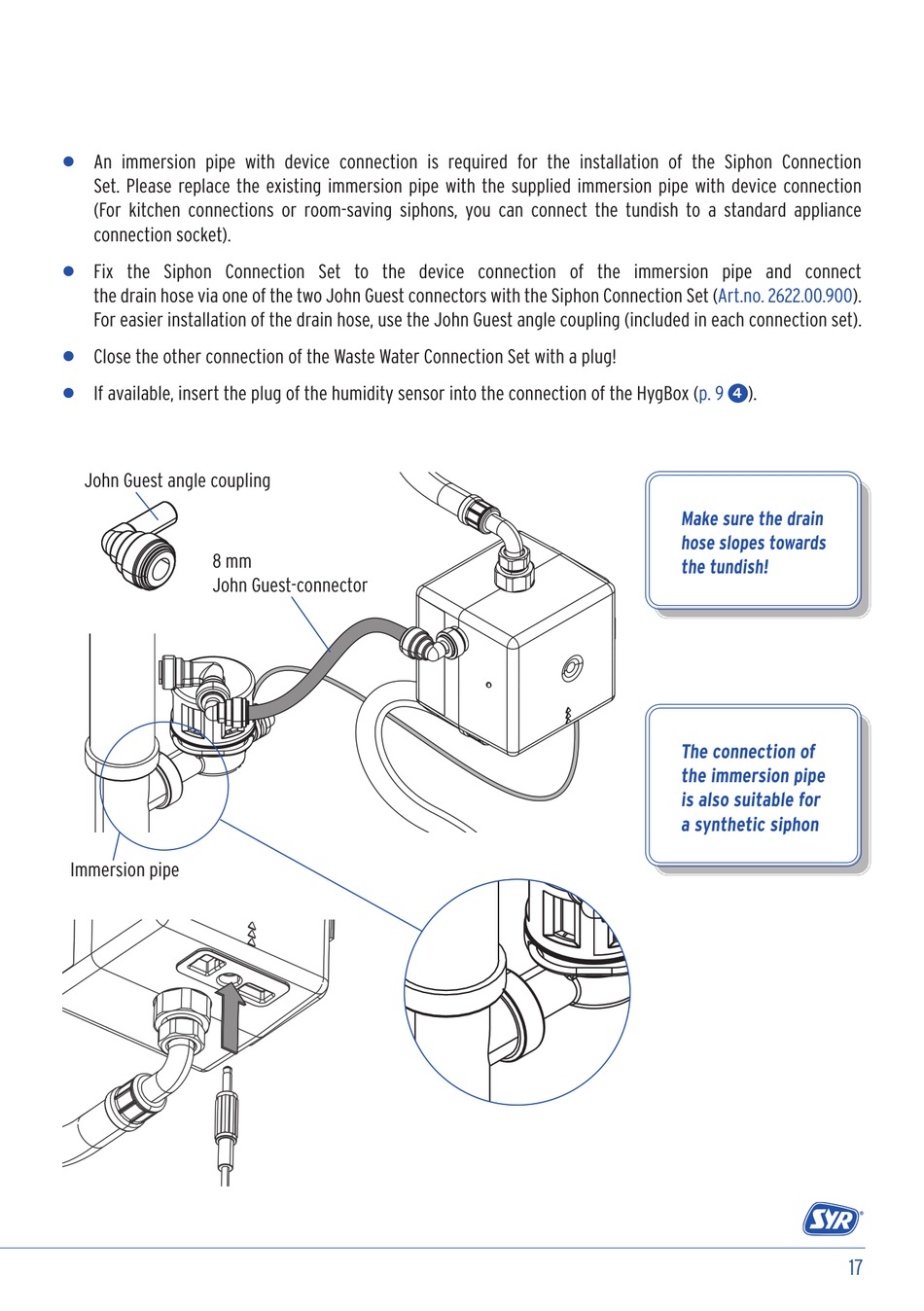

An immersion pipe with device connection is required for the installation of the Siphon Connection
Set. Please replace the existing immersion pipe with the supplied immersion pipe with device connection
(For kitchen connections or room-saving siphons, you can connect the tundish to a standard appliance
connection socket).
•
Fix the Siphon Connection Set to the device connection of the immersion pipe and connect
the drain hose via one of the two John Guest connectors with the Siphon Connection Set
For easier installation of the drain hose, use the John Guest angle coupling (included in each connection set).
•
Close the other connection of the Waste Water Connection Set with a plug!
•
If available, insert the plug of the humidity sensor into the connection of the HygBox
John Guest angle coupling
8 mm
John Guest-connector
Immersion pipe
(Art.no. 2622.00.900).
(p. 9 4 ).
Make sure the drain
hose slopes towards
the tundish!
The connection of
the immersion pipe
is also suitable for
a synthetic siphon
