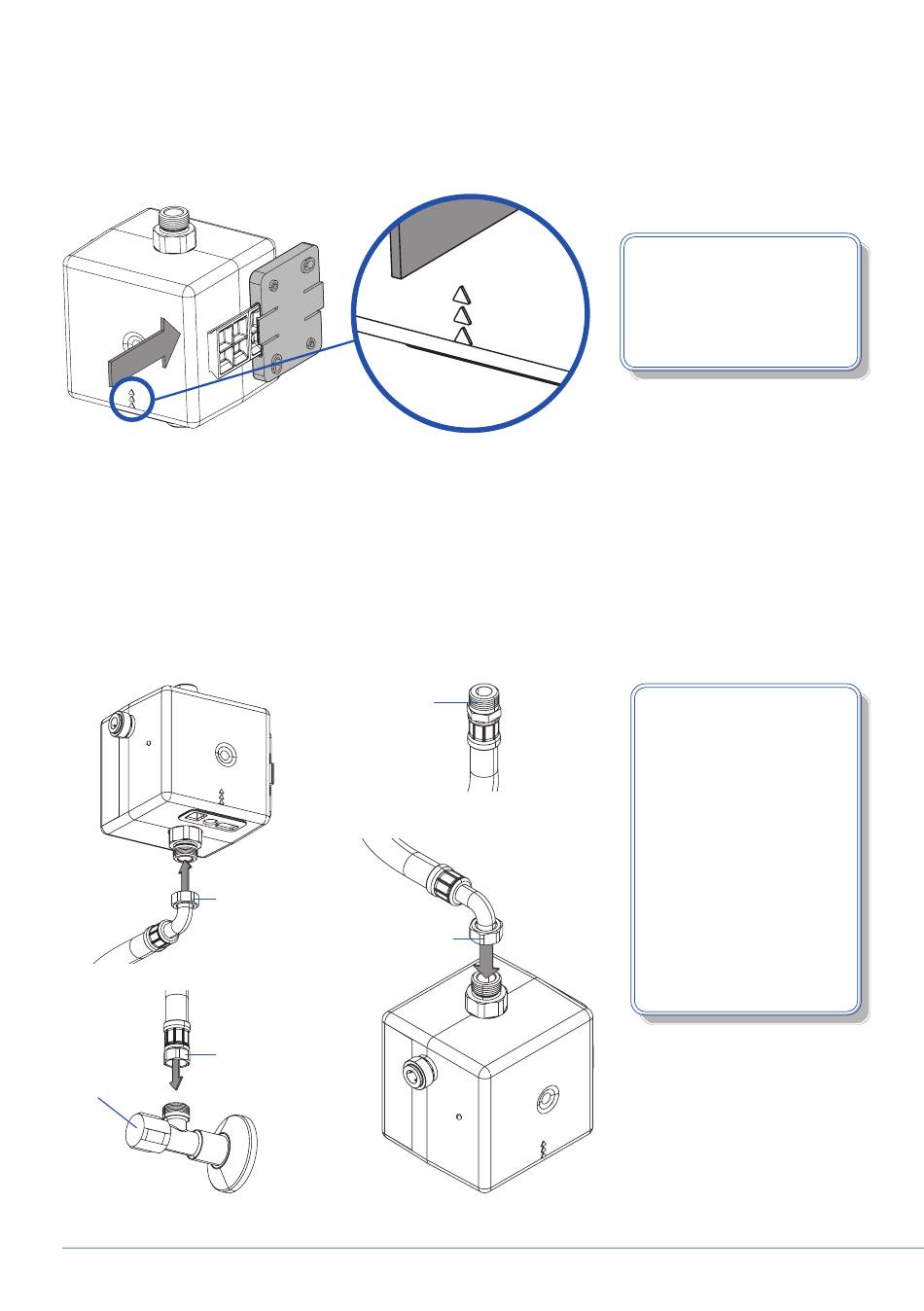

Slide the HygBox sideways onto the wall bracket, observing the indicated direction of flow.
6.2. Installation of Siphon Connection Set
•
Fix the two flexible hoses to the HygBox.
Connect the ⅜" captive nut with an angle valve and the ⅜" captive nut with the thread at the bottom of the
HygBox.
Connect the ⅜" captive nut with the thread on the upper side of the HygBox and the ⅜" male thread with
the outlet valve.
Captive nut ⅜"
Captive nut ⅜"
Angle valve
Assembly, commissioning, operation and maintenance HygBox Connect
⅜"
male
thread
Captive nut ⅜"
The arrows on the
casing mark the
direction of flow.
To cover several
installation options,
the Siphon Connec-
tion Set includes a
second flexible hose
to connect the con-
nection valve with
the HygBox under
consideration of the
actual installation
situation.
