LANGUAGES

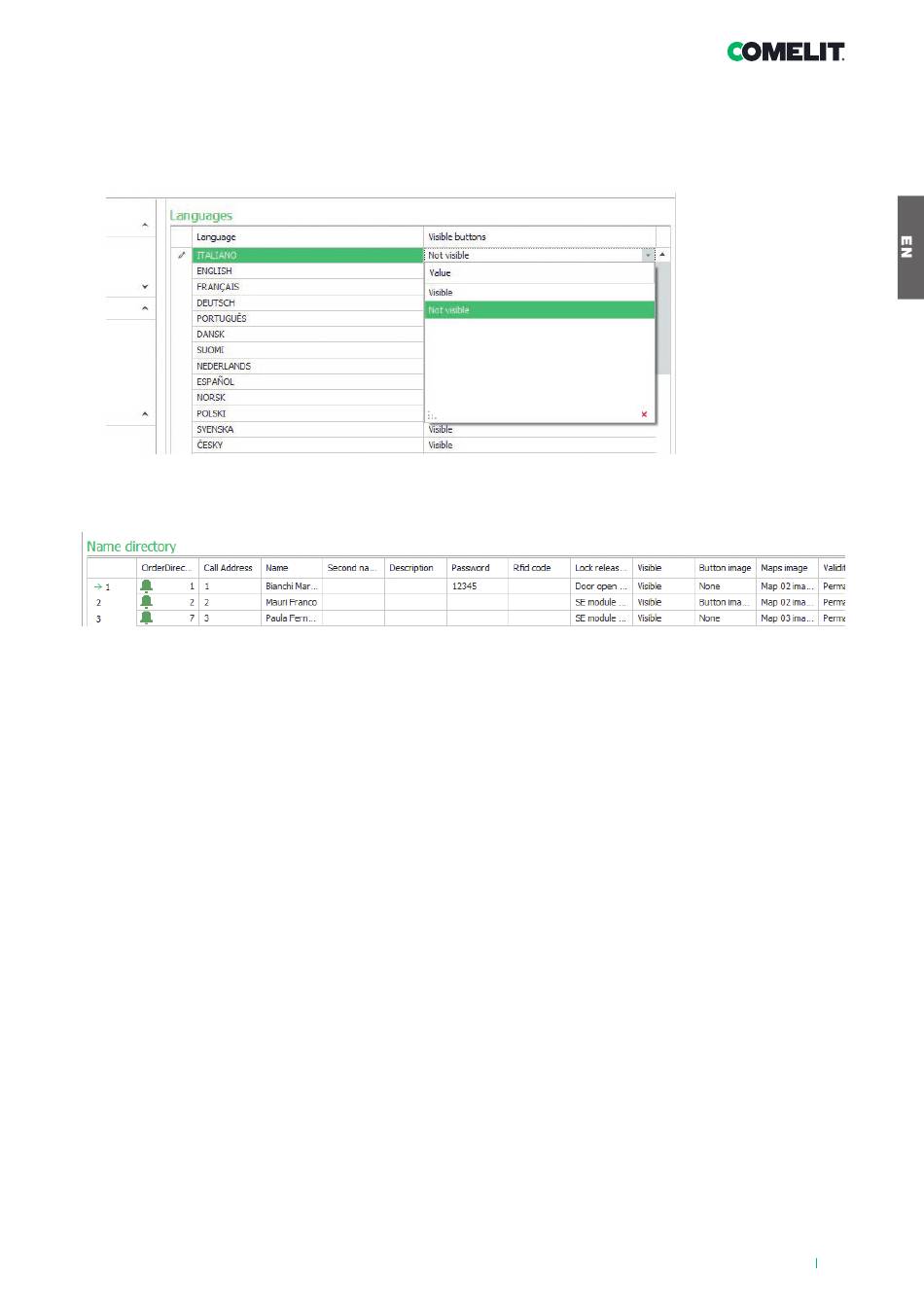

In the table shown, the "Language" column lists the languages available for the display if the "Enable language
page" option is enabled.
The "Visible buttons" column can be used to make each language "Visible" or "Not visible" individually. More
than one language can be made "Visible"
DIRECTORIES
NAME DIRECTORY
• Call address / ViP address: enter the call code associated with the Name field
• Name: enter the user name that will be shown on the first line of the call button
• Second name: enter the user name that will be shown on the second line of the call button
• Description: enter the text that will be displayed, in a smaller size, above the first line of the call button
• Access code: enter the code to be associated with the user that allows them to activate the set output
• RFID key code: enter the code printed on the RFID token that allows it to activate the set output when
passed in front of the enabled RFID reader
• Output to activate: select the output to activate by entering the "Access code" or by passing the RFID
token in front of the reader
◊ Lock release control: send a lock-release command (default). This setting can be changed on the audio
or audio/video module
◊ Module SE output: activates the SE output for the audio or audio/video module paired with the Touch
module
◊ Module relay output: activates the relay for the audio or audio/video module paired with the Touch
module
• Virtual output 1 / Virtual output 2: activates the Virtual output 1 / Virtual output 2 of the audio or audio/
video module. These outputs can therefore drive external actuators, electronic keypad relay, etc.
• Visible: used to make the button you are programming visible or not (Visible, Not visible, default: Visible)
• Button image: used to associate each call button with an image or a logo, see "Buttons image" menu
(None, Switchboard image 1 to 2, Button image 1 to 50, default: None)
• Map images: used to pair a graphics map with each call button. It will be shown after the door entry
monitor lock-release button is pressed during communication; see "Map images" menu (None, from Image
01 to Image 30)
Exporting the name directory
To export the "Name directory":
1. open the Directories/Name directory menu
2. click "Save file"
3. select the position in which the .csv file is to be saved
