Electrical Connection - IFM Electronic AS-Interface AC2259 Montageanleitung

Electrical connection

Connect the sensors with the terminals. The sensors are supplied
via an external PELV voltage source.

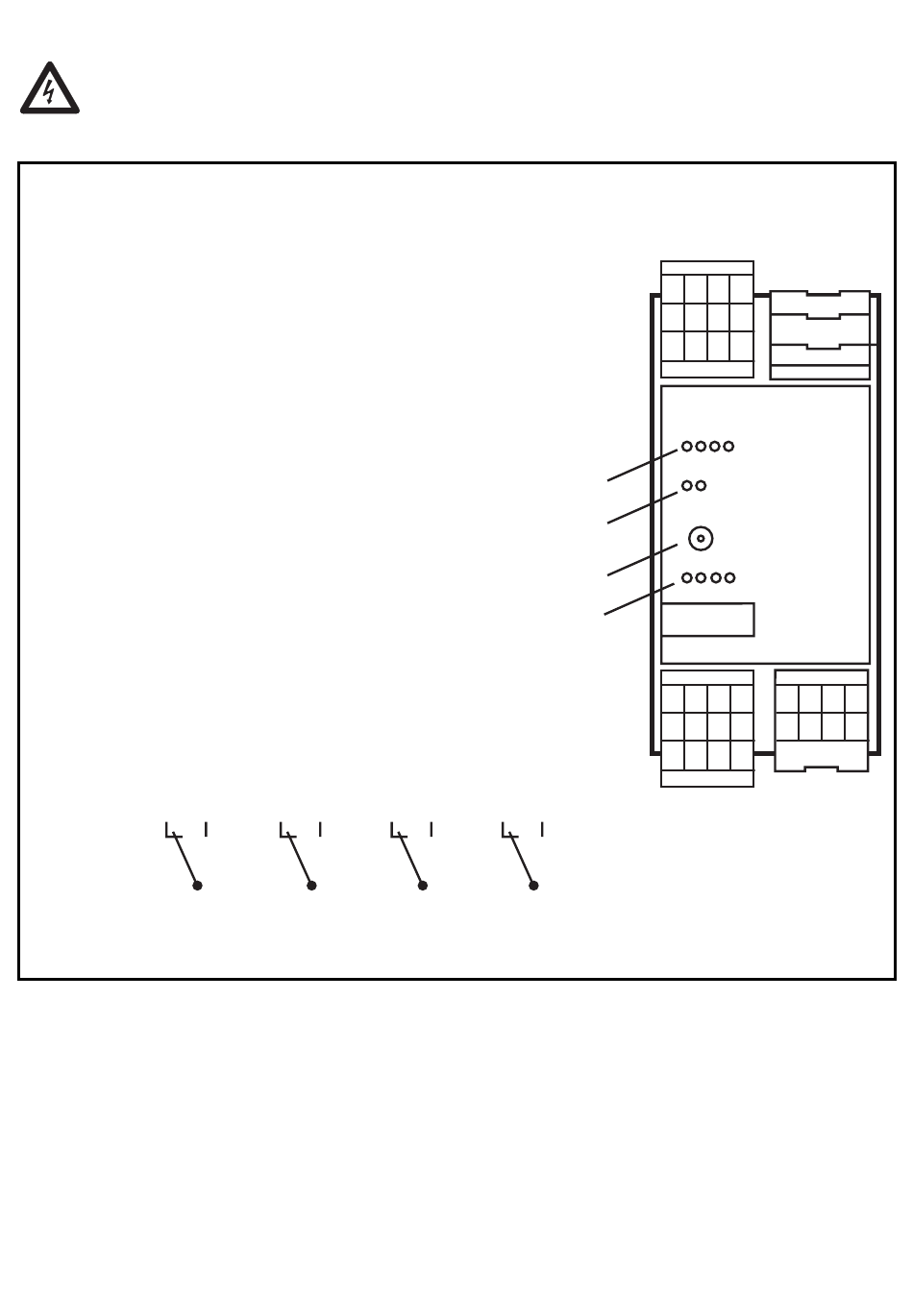

Wiring
A+: AS-i +
A-: AS-i -
E+: external sensor supply +24V
E-: external sensor supply 0V
I+: sensor supply +24V
I-: sensor supply 0V
I1 ... I4: switching input sensors 1 ... 4
LEDs 1: switching status indication
inputs
LEDs 2: AS-i, FAULT ,AUX
LEDs 3: switching status indication
actuator outputs
ADR: addressing socket
O1
12 14
11
6
PAGE
O2 O3
22 24 32 34
21 31
LEDs 1
LEDs 2
ADR
LEDs 3
O4
42 44
41
I- I- I- I-
I1 I2 I3 I4
I+ I+ I+ I+
14 11 11 12 34 31 31 32
24 21 21 22 44 41 41 42
A+ A-
