Diode jaune POWER
U1-U2
Diode verte U1
Diode verte U2
Diode jaune POWER
U3-U4
Diode verte U3
Diode verte U4
Diode jaune POWER
U5-U6
Diode verte U5
Diode verte U6
Diode jaune POWER
U7-U8
Diode verte U7
Diode verte U8
Diode rouge alarme

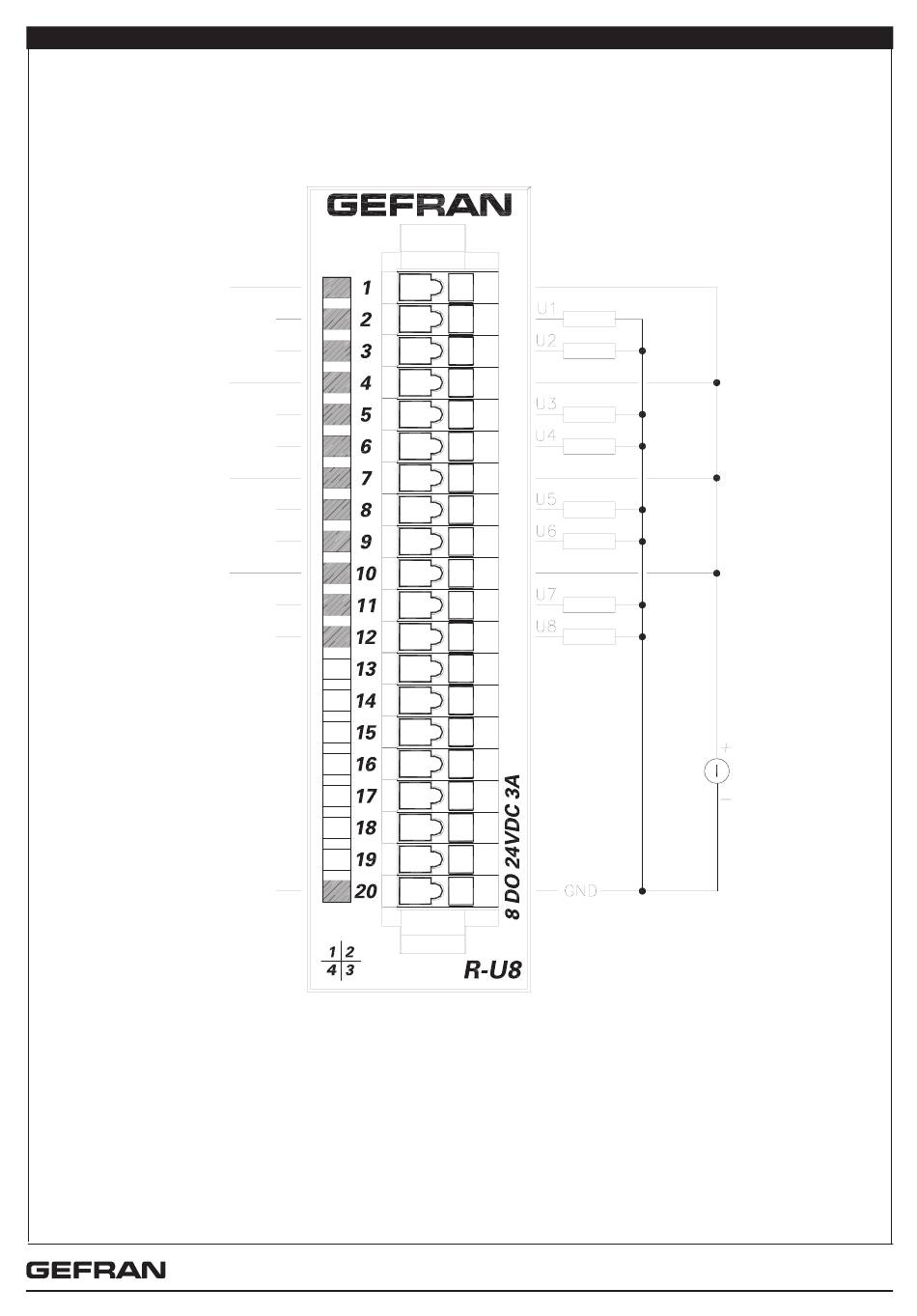

Les connexions frontales du module comportent:
• Alimentation 24Vdc ±25% 6A max.
• Sorties 24Vdc ±25% 3A max.
Utiliser un câble unipolaire, section 1,5mm
GEFRAN spa via Sebina, 74 - 25050 Provaglio d'Iseo (BS) Tel. 03098881 - fax 0309839063 - Internet: http://www.gefran.com
8
4 • CONNEXIONS
2
maximum ; ne pas abouter le câble
+24Vdc pour U1 - U2
LOAD
LOAD
+24Vdc pour U3 - U4
LOAD
LOAD
+24Vdc pour U5 - U6
LOAD
LOAD
+24Vdc pour U7 - U8
LOAD
LOAD
80123B_MHW_R-U8_0508_FRA
24Vdc
± 25%
