Yellow LED POWER
U1-U2
Green LED U1
Green LED U2
Yellow LED POWER
U3-U4
Green LED U3
Green LED U4
Yellow LED POWER
U5-U6
Green LED U5
Green LED U6
Yellow LED POWER
U7-U8
Green LED U7
Green LED U8
Red LED Alarm
Front panel connections require:
• Power supplies 24 VDC ±15% 6A max.
• Outputs 24 VDC ±15% 3A max.
Use unipolar cable with 1.5 mm max. cross-section Do not apply lug.
GEFRAN spa via Sebina, 74 - 25050 Provaglio d'Iseo (BS) Tel. 03098881 - fax 0309839063 - Internet: http://www.gefran.com
4

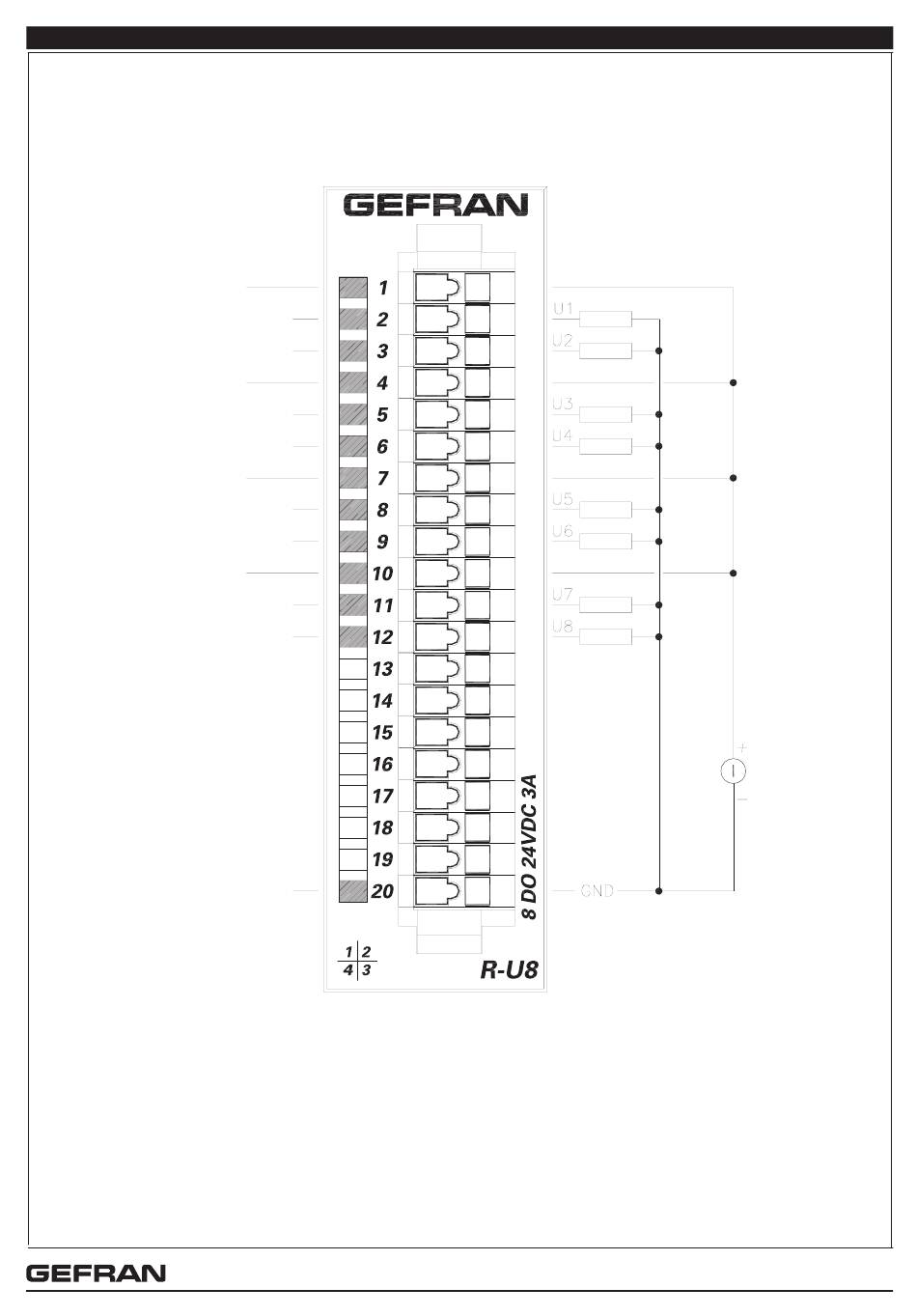

4 • CONNECTIONS
+24Vdc per U1 - U2
LOAD
LOAD
+24Vdc per U3 - U4
LOAD
LOAD
+24Vdc per U5 - U6
LOAD
LOAD
+24Vdc per U7 - U8
LOAD
LOAD
80123B_MHW_R-U8_0508_ENG
24Vdc
± 25%
