Specification of Modules

Assembly

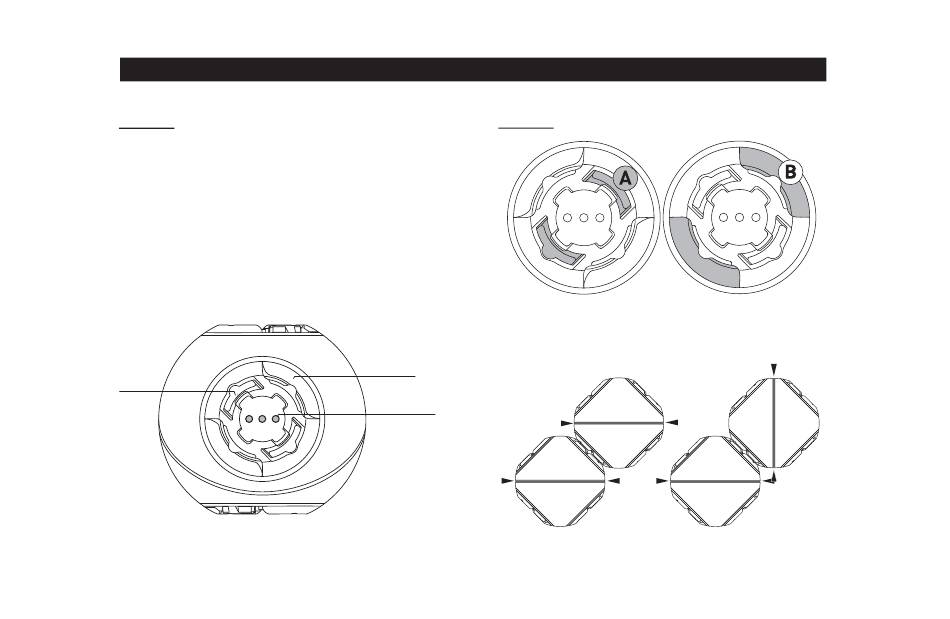

All ClicBot modules are connected by connectors. Each connector has
an inner buckle, an outer buckle and golden "po-go" pins. You can
connect two modules by interlacing the inner buckle and outer buckle,
while the golden "po-go" pins are used for transferring instruction and
supplying power.
Inner
buckle
Assembly
*When connecting two modules, please align the inner buckle of one
module with the outer buckle of the another module
*Any two modules can be connected in parallelly or otherwise.
outer
buckle
Golden
"po-go" pins
Parallel connection
13
English
Inner buckle outer buckle
Vertical connection
