Remove the BC
• Remove the BC by bending it a little bit until it is possible to remove it from
the knobs.

Assembling and removing the inflation cylinder

There is an optional inflation cylinder 0,35l that can be used to fill the BC in an
emergency.
The inflation cylinder can be attached to either the lower left or the lower right
side of the BC.
The BC must have a cylinder connection installed (instead of one of the
pressure valves) to be able to assemble the inflation cylinder.
If the BC doesn´t have a cylinder connection, it has to be installed by a certified
Interspiro technician.

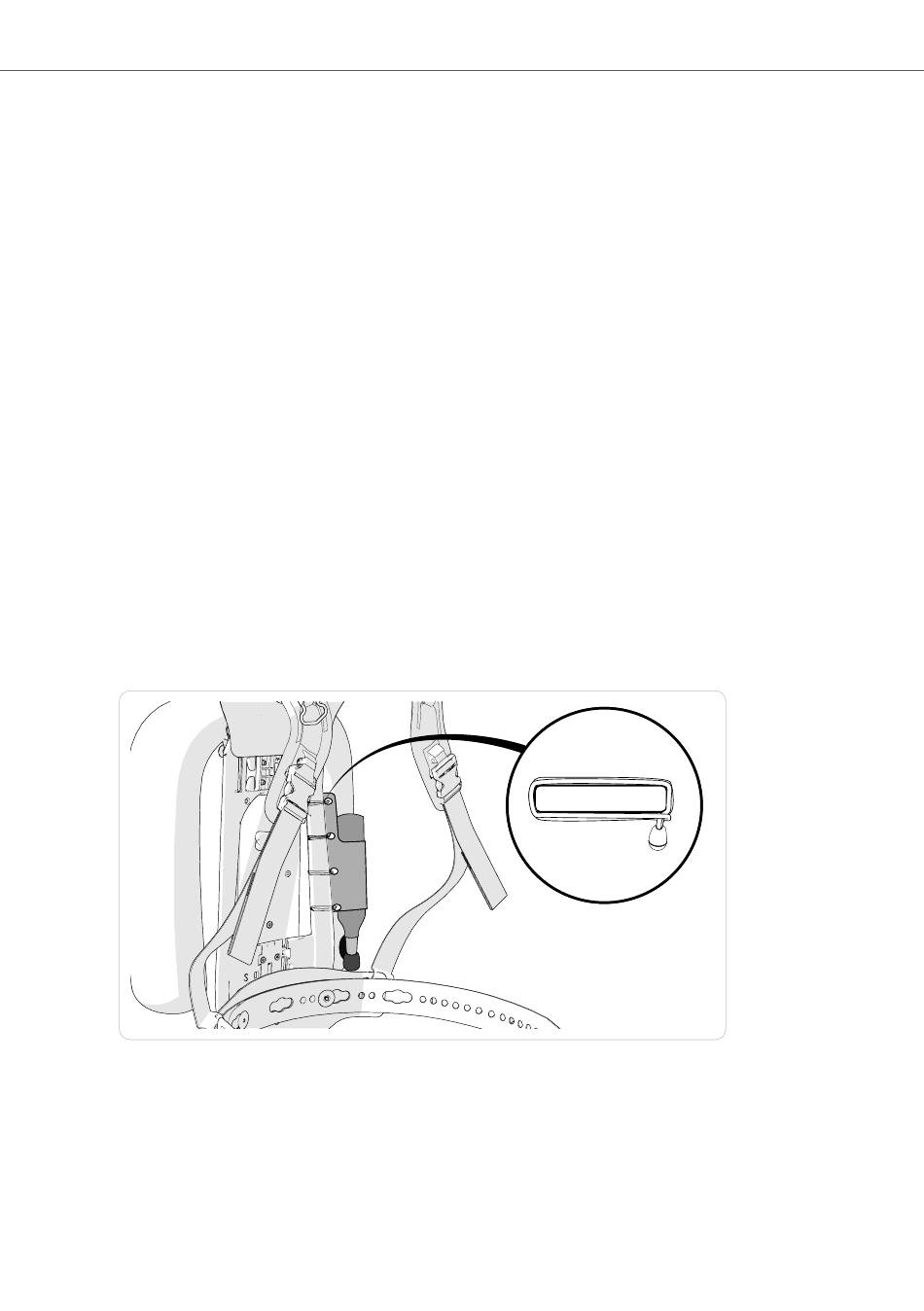

Assemble the inflation cylinder
1. Assemble the cylinder holder to the frame of the harness with the bungee
cords.
2. Assemble the inflation cylinder into the cylinder holder.
3. Attach the inflation cylinder by screwing it completely into the cylinder
connection on the BC, tighten by hand.
Remove the inflation cylinder
• Disassemble the inflation cylinder from the cylinder connection and
remove the cylinder holder.
16
Divator Pro BC / harness
