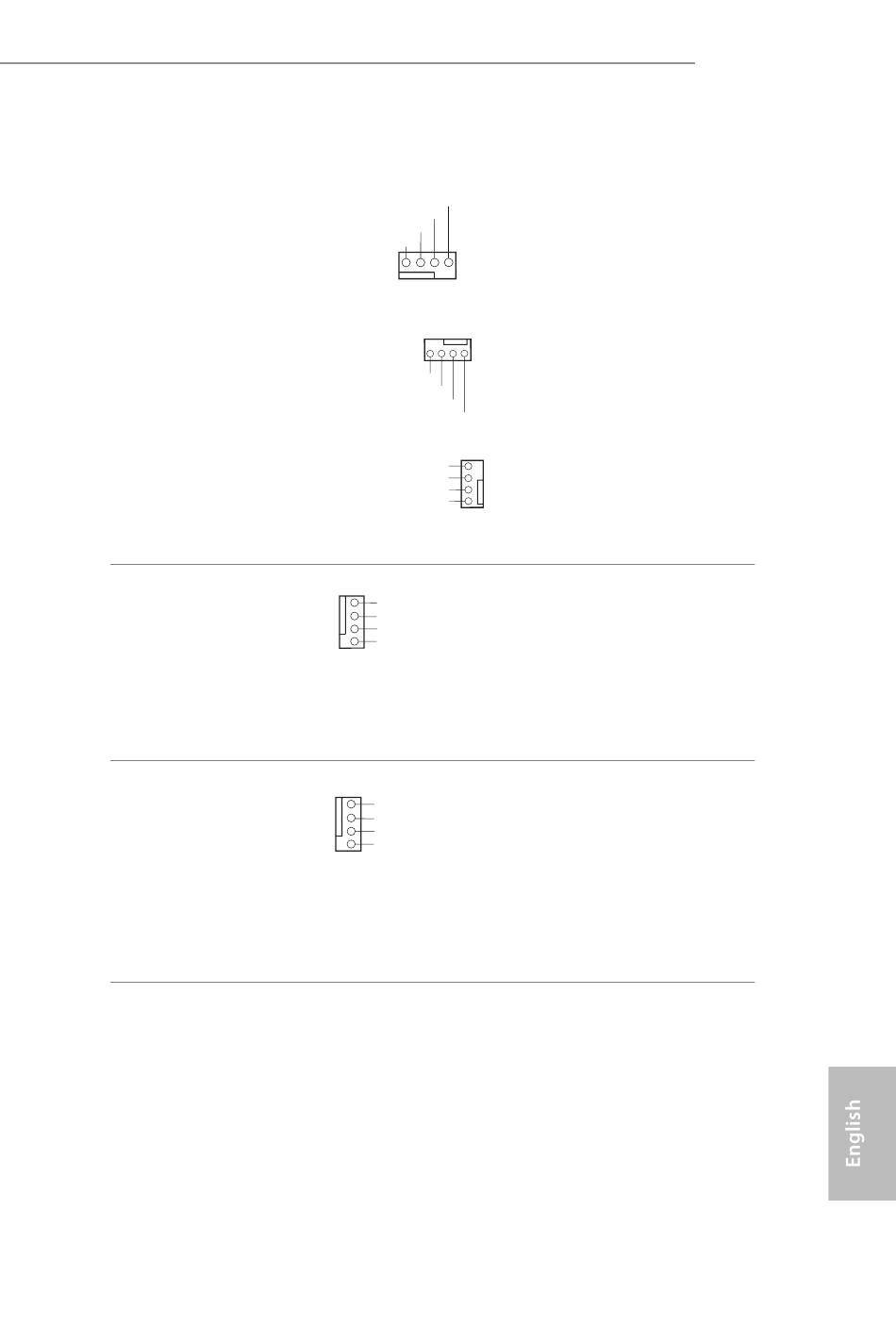

Chassis Water Pump Fan
Connectors
(4-pin CHA_FAN1/WP)
(see p.1, No. 33)
(4-pin CHA_FAN2/WP)
(see p.1, No. 17)
(4-pin CHA_FAN3/WP)
(see p.1, No. 10)
CPU Fan Connector
(4-pin CPU_FAN1)
(see p.1, No. 6)
CPU Water Pump Fan
Connector
(4-pin CPU_FAN2/WP)
(see p.1, No. 7)
FAN_SPEED_CONTROL
CPU_FAN_SPEED
FAN_VOLTAGE
GND
1 2 3 4
4 3 2 1
FAN_SPEED_CONTROL
CHA_FAN_SPEED
FAN_VOLTAGE
GND
4
FAN_SPEED_CONTROL
3
CHA_FAN_SPEED
2
FAN_VOLTAGE
1
GND
1
GN D
2
+ 12V
3
CPU_ FAN_SPEED
4
FAN_SPEED_CONTROL
1
GND
2
FAN_VOLTAGE
3
CPU_FAN_SPEED
4 FAN_SPEED_CONTROL
This motherboard
provides three 4-Pin water
cooling chassis fan
connectors. If you plan to
connect a 3-Pin chassis
water cooler fan, please
connect it to Pin 1-3.
This motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
This motherboard
provides a 4-Pin water
cooling CPU fan
connector. If you plan
to connect a 3-Pin CPU
water cooler fan, please
connect it to Pin 1-3.
