8. V1N POWER CONNECTIONS

V1N
●

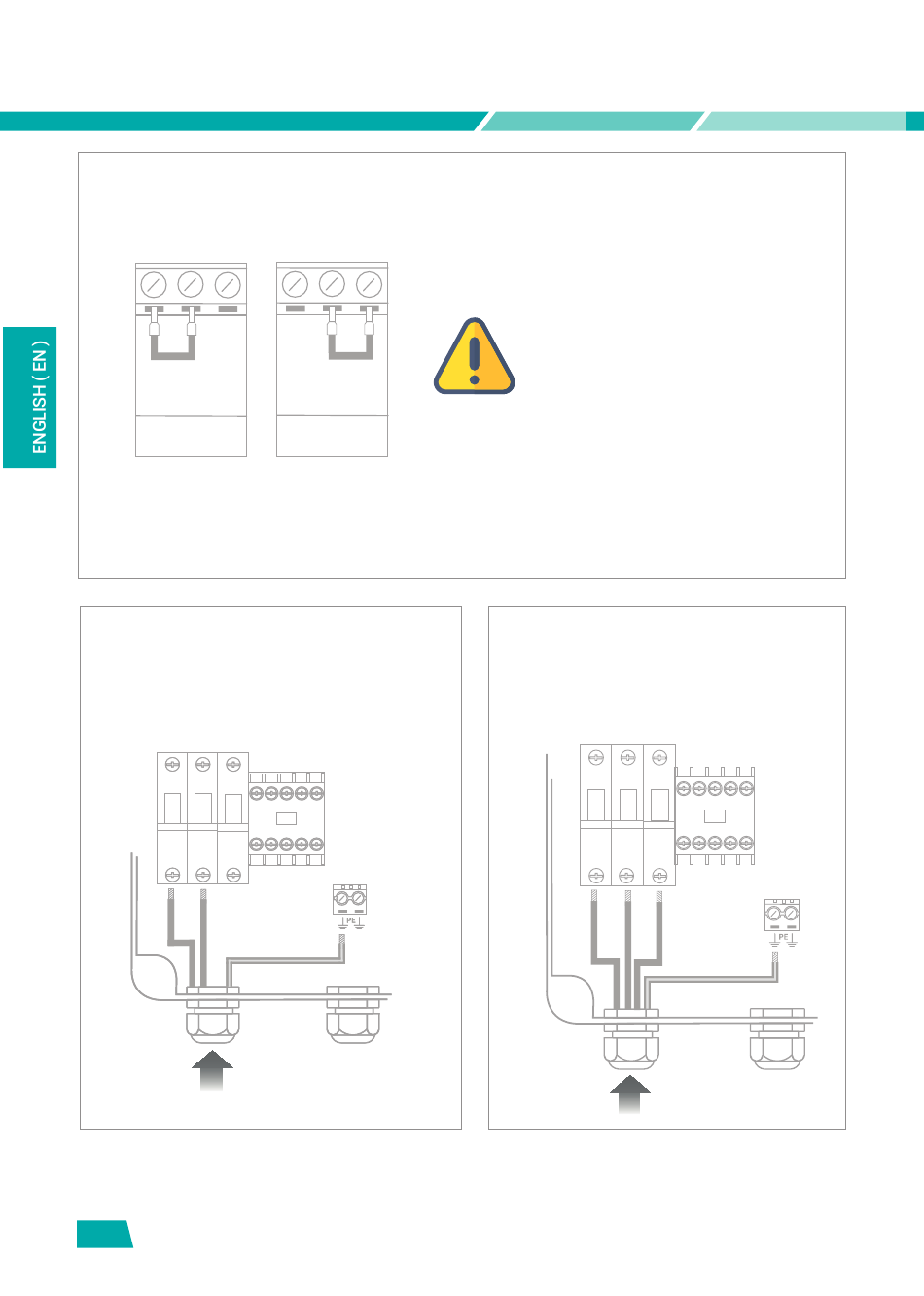

Voltage selection.
0V
GE
VOLTAGE
230V l / lll
V1N
●
Single-phase power input
(L/N, 230 VAC).
28
Distribuido por Adajusa
230V
400V
VOLTAGE
400V lll
4 4 6 6
2 2
L L N N
X X
Place the jumper cable to select
the supply voltage.
V1N
●
Three-phase power input
(L1/L2/L3, 230/400 VAC).
6
2 4
L2 L3
L1
