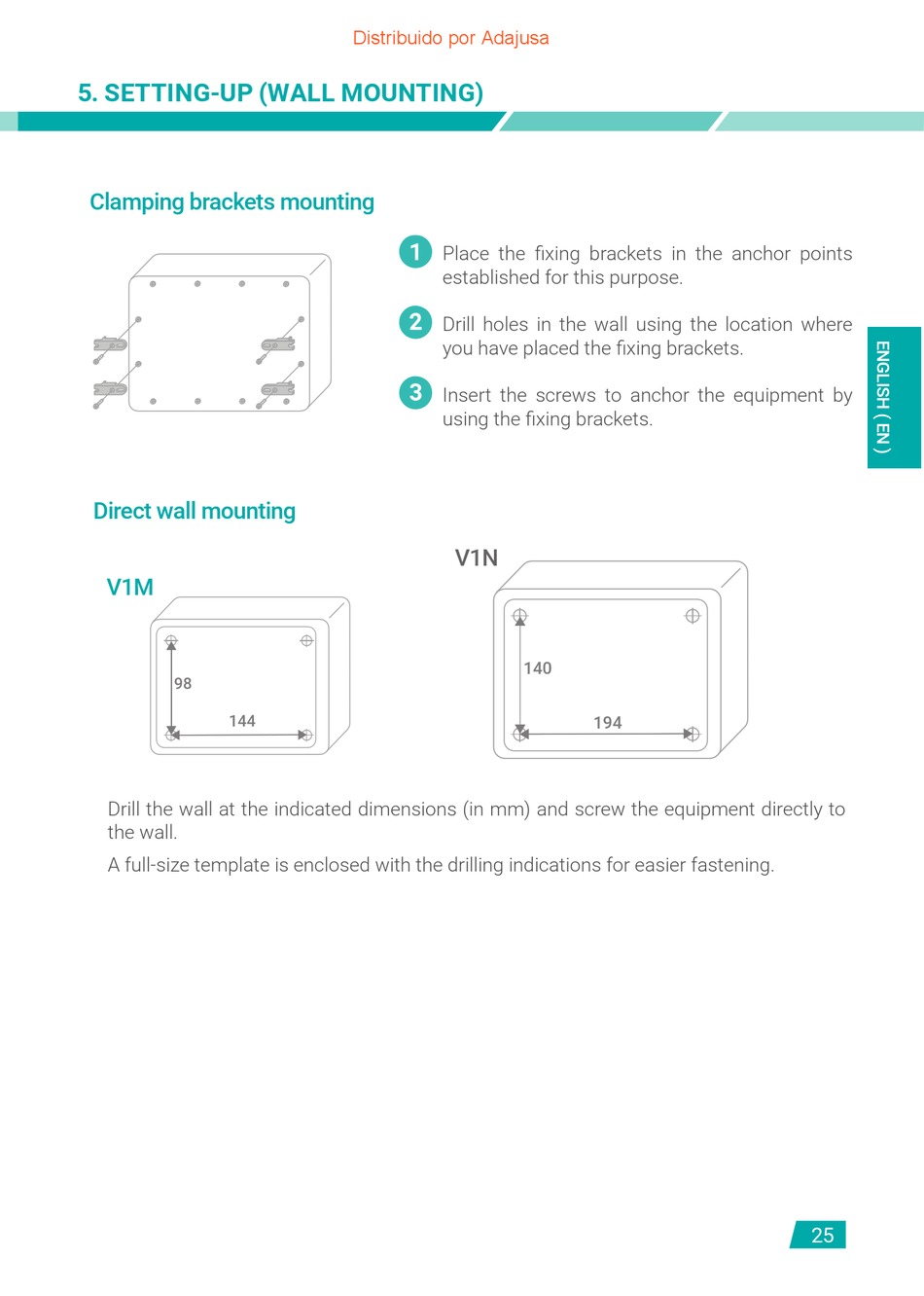

5. SETTING-UP (WALL MOUNTING)

Clamping brackets mounting

Direct wall mounting

V1M
98
144
Drill the wall at the indicated dimensions (in mm) and screw the equipment directly to
the wall.
A full-size template is enclosed with the drilling indications for easier fastening.
Distribuido por Adajusa
1
Place the fixing brackets in the anchor points
established for this purpose.
2
Drill holes in the wall using the location where
you have placed the fixing brackets.
3
Insert the screws to anchor the equipment by
using the fixing brackets.
V1N
140
194
25
