Operating instructions

Assembly and operation

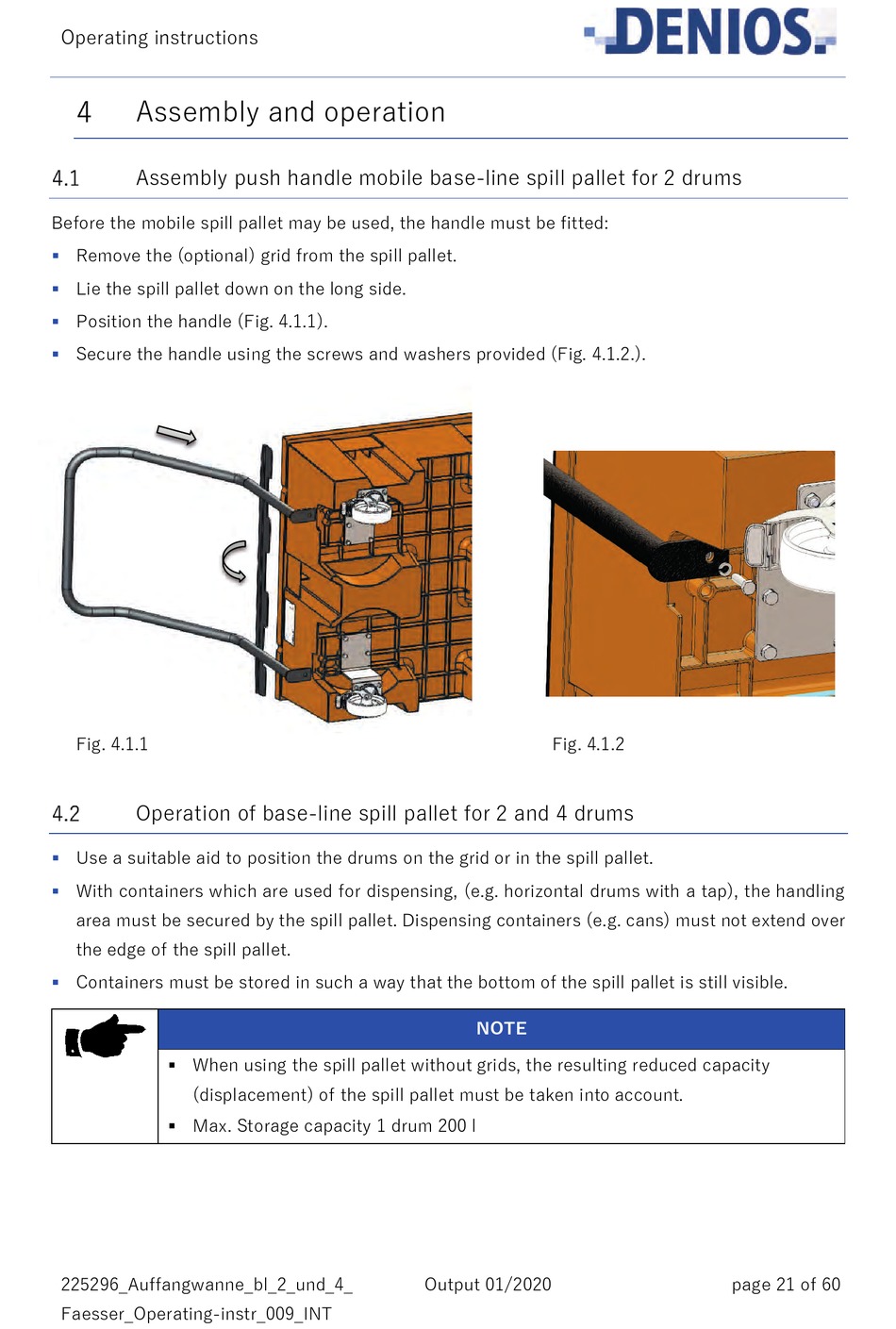

Assembly push handle mobile base-line spill pallet for 2 drums
Before the mobile spill pallet may be used, the handle must be fitted:
Remove the (optional) grid from the spill pallet.

Lie the spill pallet down on the long side.

Position the handle (Fig. 4.1.1).

Secure the handle using the screws and washers provided (Fig. 4.1.2.).

Fig. 4.1.1
Operation of base-line spill pallet for 2 and 4 drums
Use a suitable aid to position the drums on the grid or in the spill pallet.

With containers which are used for dispensing, (e.g. horizontal drums with a tap), the handling

area must be secured by the spill pallet. Dispensing containers (e.g. cans) must not extend over
the edge of the spill pallet.
Containers must be stored in such a way that the bottom of the spill pallet is still visible.

 When using the spill pallet without grids, the resulting reduced capacity
(displacement) of the spill pallet must be taken into account.
 Max. Storage capacity 1 drum 200 l
225296_Auffangwanne_bl_2_und_4_
Faesser_Operating-instr_009_INT
Fig. 4.1.2
NOTE
Output 01/2020 page 21 of 60
