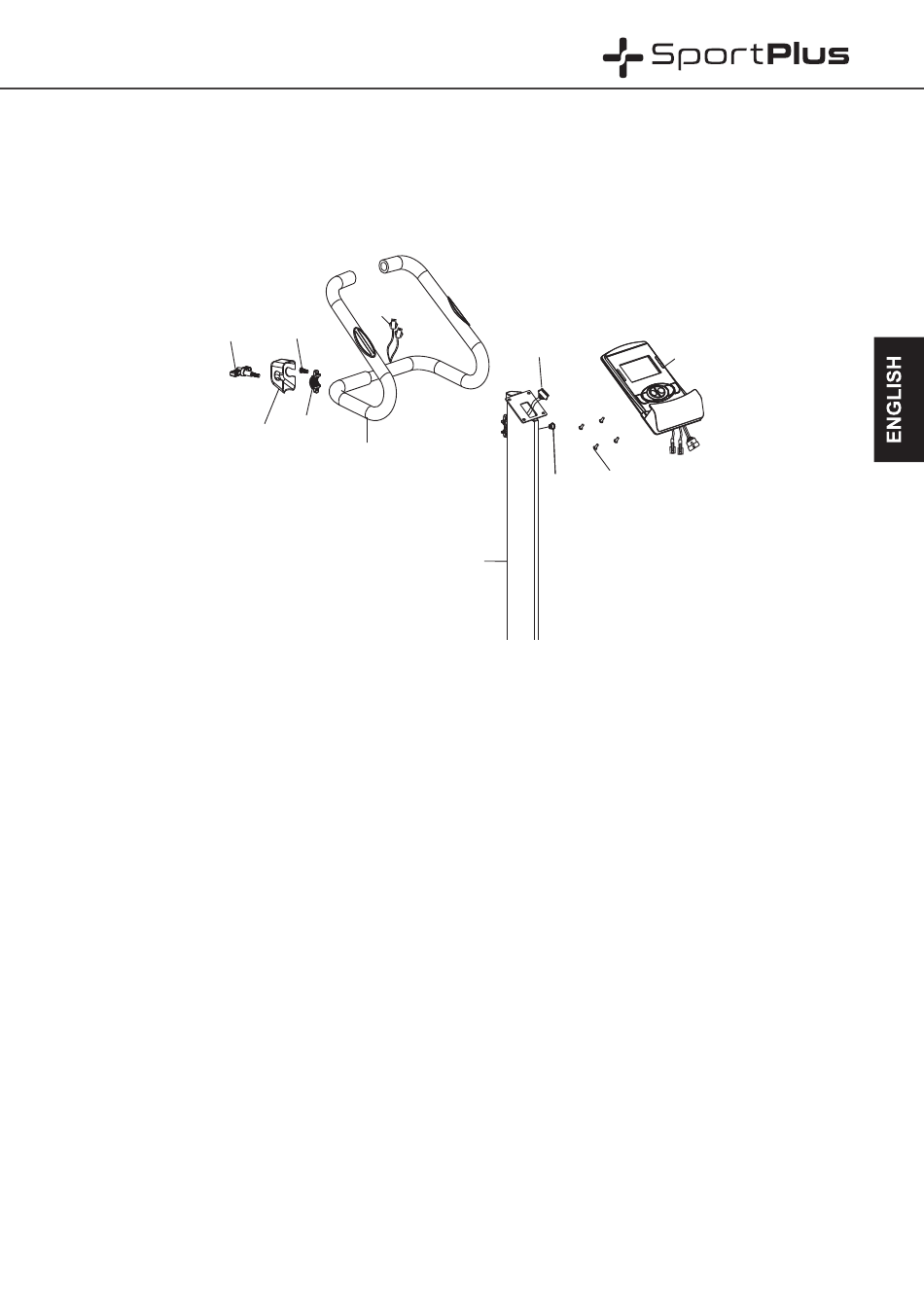

6. ASSEMBLY INSTRUCTIONS
STEP 3
21
37
1. Remove the hex screw (22) and clamp (25) from the handlebar tube (4).
2. Fasten the handlebar (5) to the handlebar tube (4). Use the previously removed hex
screw (22) and clamp (25).
3. Put on the handlebar cover (37) and fasten with the T-shaped set screw (21).
4. Guide the hand pulse cable (20) through the grommet (32) and pull it up into a vertical
position.
5. Loosen the 4 screws (27) on the back of the computer (6).
6. Connect the upper computer cable (33) and the hand pulse cable (20) to the
connections on the back of the computer (6).
7. Place the computer (6) on the computer mount. Secure the computer with the 4
screws (27) removed earlier.
8. You can readjust the handlebar position using the T-shaped set screw (21) at any time.
