3. Controls and Connections

2 3
1 4
CXL_IF_120731

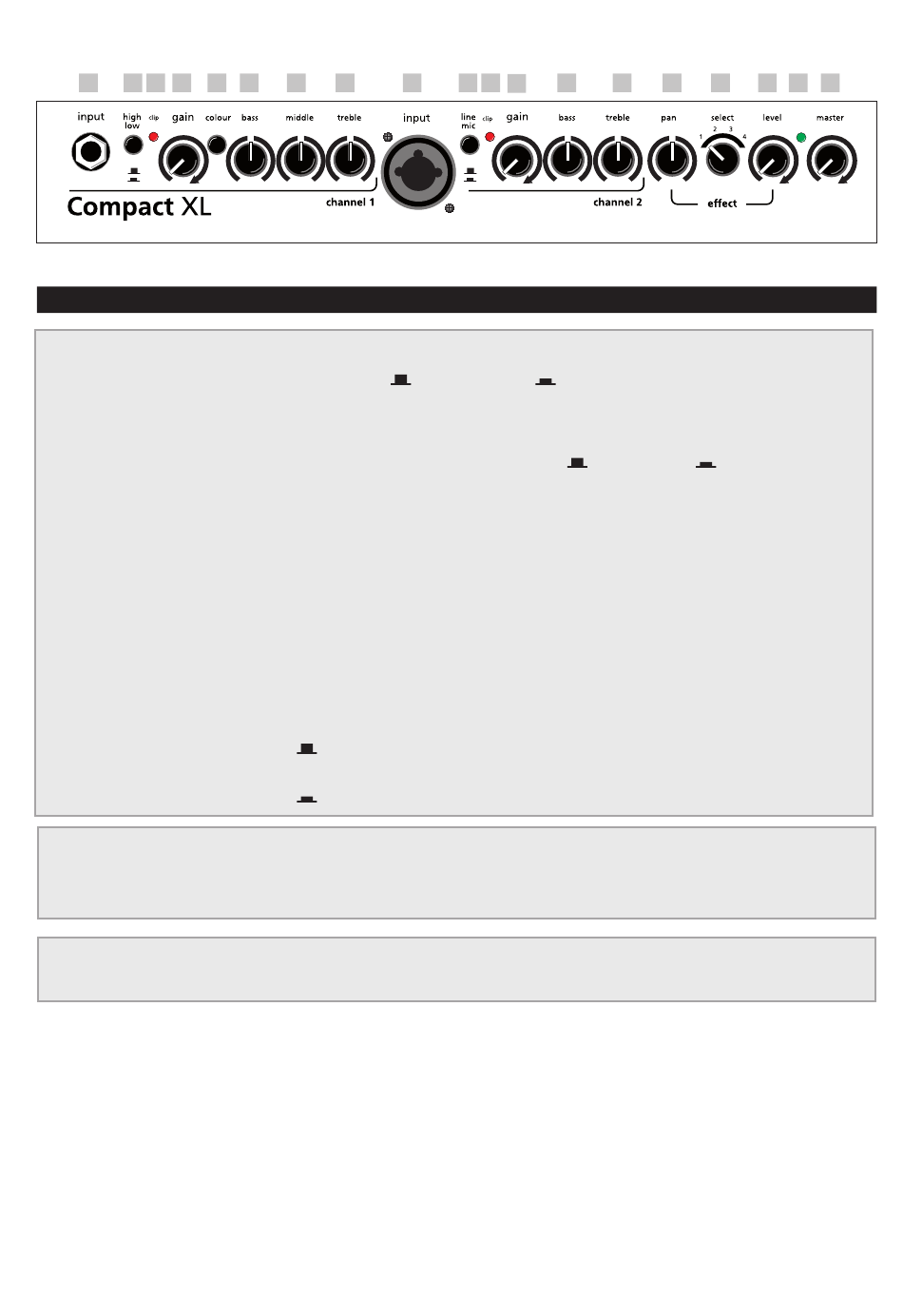

3.1 Front side

1) input (ch. 1)
2) high/low
3) clip
4) gain
5) colour
6) bass
7) middle
8) treble
9) input (ch. 2)
10) line/mic
11) pan
12) select
13) level
14) power
15) master
10
5 6 7 8
input channel 1, 1/4" (6,35 mm) jack socket, instrument or line input
attenuator,
overload indicator
input level control
tone colour filter activation switch
bass level control
middle level control
treble level control
Input, channel 2, combo socket for ¼" (6.35 mm) jack or XLR, with
following connection options:
• XLR connector: microphone, balanced, with 48 V phantom power
• stereo jack connector: microphone, balanced, without phantom power
• mono jack connector: instrument, line, or microphone, unbalanced,
without phantom power.
signal source selector switch:
line (only via jackplug)
for instruments (pickup) and other line level sources,
mic for microphones.
effect distribution control
effect select switch
level control internal effect
on/off status indicator
master level control (volume)
9
10 3 4 6
high = att. off, low = att. on
8 11 12
13
= not active , = active
channels 1 + 2
mains & master
15
14
efx
