3. Conception

Based on the successful concept of
our best-seller Compact 60 accor-
ding to power and weight
we have changed following topics
at the Compact Classic pro:
– 2-way speaker system based
on th 8" broadband-speaker-
with additional tweeter.
– Preset input, you can
combinde nearly all preamp

4. Controls and Connections

1 2 4
input 1
gain1
clip
48 9
L
M
P P/M
3

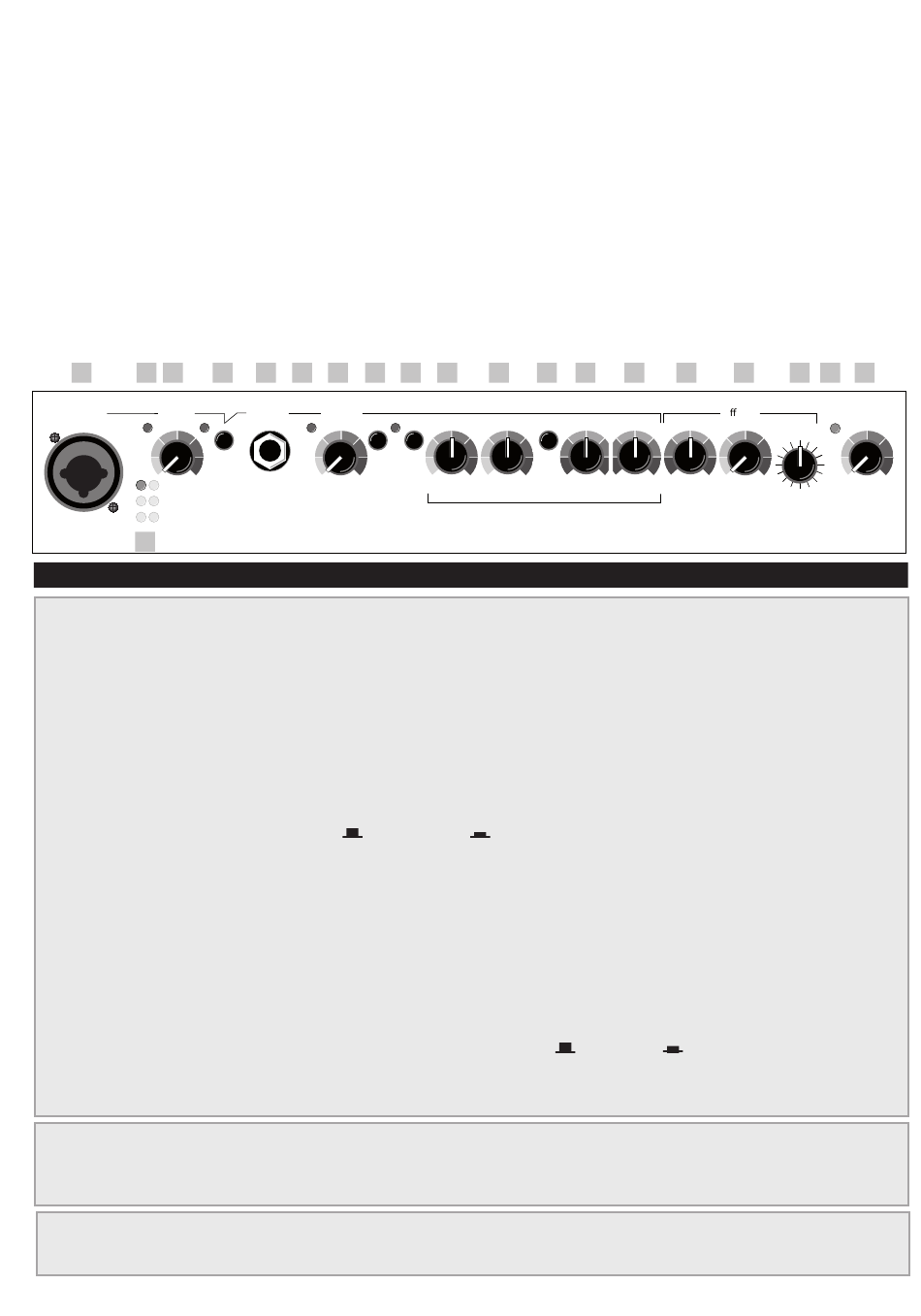

4.1 Frontside

1) input 1
2) clip
3) 48 / 9 / L / M / P / P/M Control for input 1-functions (see chapter. 4.2 „dip-switch)
4) gain 1
5) mute
6) input 2
7) gain 2
8) piezo/line
9) bass
10) freq.
11) bandwidth
12) middle
13) treble
14) pan
15) return
16) program
17) power
18) master
combinations. Simply choose
the preamp/phantom power
(6,5mm- or XLR input jack
by using the DIP-switch on
the rear side of the Compact
Classic pro.
– Digital-Effects with 16 Presets
– Bass-parametrical
3-Band-tone control
– Presence control 'smoothed'
5 6 2 7 8
input 2 gain 2
clip
piezo
mute
line
Compact
Classic
professional
combo socket for ¼" (6.35 mm) jack or XLR, with
following connection options:
• XLR connector: microphone, balanced, with 48 V phantom power
• stereo jack connector: microphone, balanced, without phantom power
• mono jack connector: instrument, line, or microphone, unbalanced,
without phantom power.
overload indicator
Input level control for input 1
Channel mute : = not active,
Input jack for 6,3 mm mono-jackplug
Input level control for input 2
Signalsource-switch:
piezo: Input for instruments with passive piezo-pickups
line: Input for line-signals: Instruments with active preamps and magnetic pickups
Bass level-control (parametric)
Frequency selector: 60 – 400Hz
Filter characteristics of the parametric bass:
middle level control
treble level control
Effect panorama control
Effect level control
Effect preset selector
status indicator
master level control (volume)
5 9 10 11
mute
band
width
V/U
bass freq. middle
= active
the sound without loosing
clearness.
– Insert-function allows you
to connect several Compact
Classic pro
– Left out/right out
Output = masteroutput, the
signal goes directly to an active
speaker-system
(f. Ex. AS 281/4)
12 13 14 15
e ect
pan return
treble
= wide (U) = narrow (V)
16 17 18
power
master
program
inputs 1 + 2
effect
master
