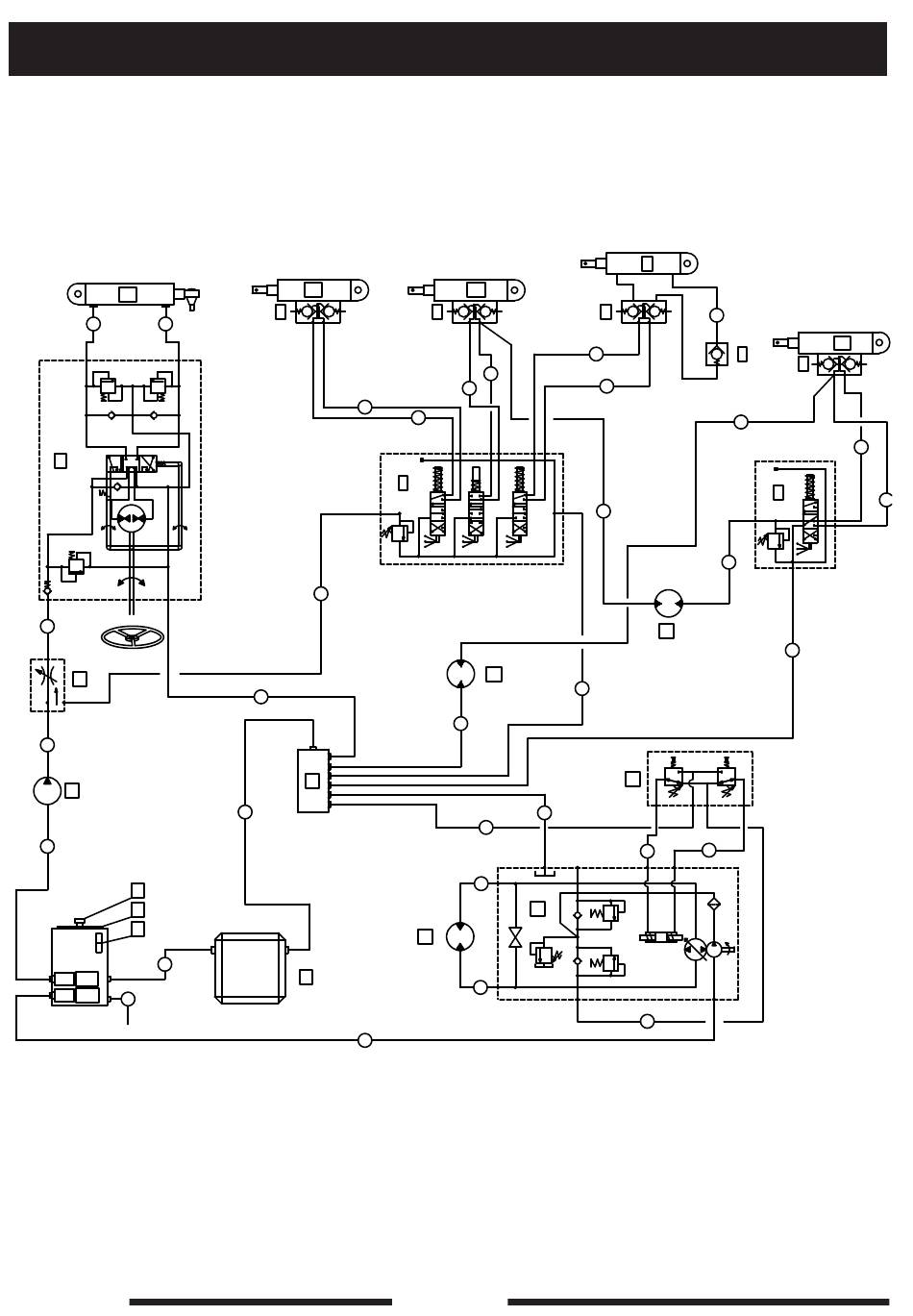

IMPIANTO IDRAULICO - HYDRAULIC SYSTEM
L3
24
25
B
23
P
6
C
5
Z
U
V
4
T
2
T 1
22
Hydraulic pipe from one-way valve to lifting cylinder
Hydraulic pipe from priority valve to 3 element distributor
Hydraulic pipe from pedal to oil collector
Hydraulic pipe from pedal to Variable Pump
Hydraulic pipe from pedal to Variable Pump
Hydraulic pipe from pedal to Variable Pump
Hydraulic pipe from Variable Pump to oil collector
Hydraulic pipe from hydroguide to oil collector
Hydraulic pipe from hydroguide to power steering cylinder
Hydraulic pipe from hydroguide to power steering cylinder
L2
O
21
20
E
32
26
M
3
S
8
L1
O
9
18
19
1
1
1
0
0
0
2
2
2
F2
7
14
27
31
1
A
F
2
Z
V
U
T2
40
T1
S
P
L
O
33
H
10
13
17
16
F1
G
29
28
30
Tappo riempimento olio
Indicatore livello olio
Coperchio serbatoio
Filtro olio 25M
Filtro olio 10M
Scambiatore olio
Valvola prioritaria
L4
O
11
1
D
0
2
12
15
Filler cap
Oil level indicator
Tank cap
Oil lter 25M
Oil lter 10M
Oil exchanger
Priority valve
