LUBRICATION
Ingersoll–Rand No. 10
Always use an air line lubricator with this tool.
We recommend the following Filter–Lubricator–Regulator
Unit:
International – No. C05–02–G29
Whenever the tool is disassembled for maintenance or
repair, lubricate the gear train with Ingersoll–Rand No. 67
Grease.
Whenever the tool is disassembled for maintenance or
repair, lubricate the clutch assembly with Ingersoll–Rand
No. 28 Grease.
Series
QS1L33; QS1T33
QS1L20; QS1T20
QS1L17; QS1T17
QS1L10; QS1T10
QS1L05; QS1T05
QS1L02; QS1T02
H Tested in accordance with PNEUROP PN8NTC1.2
♦ Tested in accordance with ISO8662–7

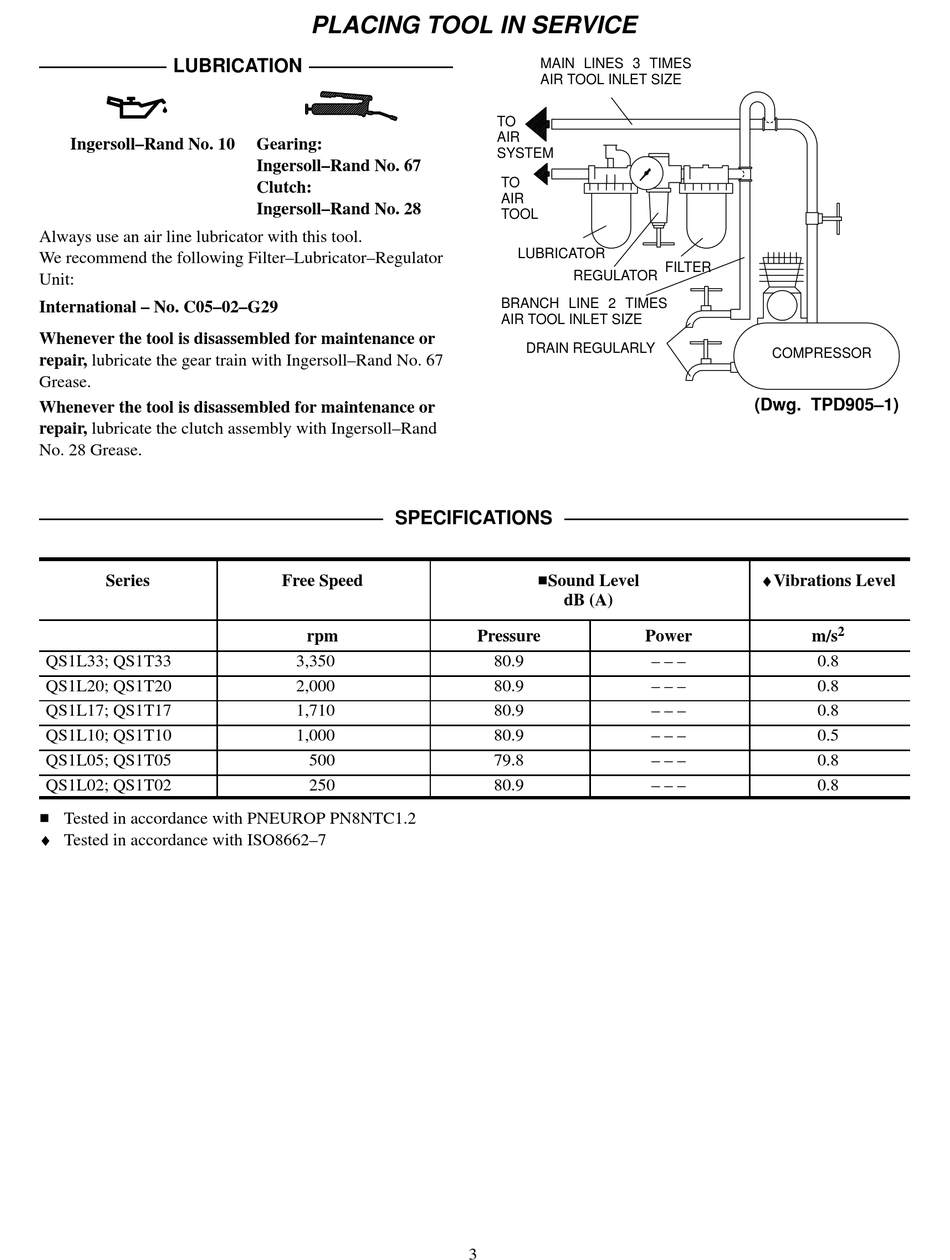

PLACING TOOL IN SERVICE

Gearing:
Ingersoll–Rand No. 67
Clutch:
Ingersoll–Rand No. 28
SPECIFICATIONS
Free Speed
rpm
3,350
2,000
1,710
1,000
500
250
MAIN LINES 3 TIMES
AIR TOOL INLET SIZE
TO
AIR
SYSTEM
TO
AIR
TOOL
LUBRICATOR
REGULATOR
BRANCH LINE 2 TIMES
AIR TOOL INLET SIZE
DRAIN REGULARLY
HSound Level
dB (A)
Pressure Power
80.9
80.9
80.9
80.9
79.8
80.9
3
FILTER
COMPRESSOR
(Dwg. TPD905–1)
♦Vibrations Level
m/s
– – – 0.8
– – – 0.8
– – – 0.8
– – – 0.5
– – – 0.8
– – – 0.8
2
