FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY.
WARNING
Always wear eye protection
when operating or perform-
ing maintenance on this
tool.
WARNING
Air powered tools can vibrate
in use. Vibration, repetitive
motions or uncomfortable po-
sitions may be harmful to your
hands and arms. Stop using
any tool if discomfort, tingling
feeling or pain occurs. Seek
medical advice before resum-
ing use.
WARNING
Keep body stance balanced
and firm. Do not overreach
when operating this tool.
USING THE TOOL (Continued)
•
Air powered tools can vibrate in use. Vibration,
repetitive motions or uncomfortable positions may
be harmful to your hands and arms. Stop using any
tool if discomfort, tingling feeling or pain occurs.
Seek medical advice before resuming use.

CLUTCH ADJUSTMENT

Disconnect the air supply from the Tool before
proceeding.
The Clutch Adjusting Hole Cover has a left–hand
thread. Rotate the Cover clockwise to loosen or
remove the Cover.
1. Unscrew the Clutch Adjusting Hole Cover far enough
to expose the clutch adjusting hole in the Clutch
Housing.
2. Insert a 1/4" hex wrench into the Bit Holder and rotate
the clutch mechanism until the area having an opening
between the faces of the Clutch Adjusting Nut Washer
and Clutch Adjusting Nut is visible.

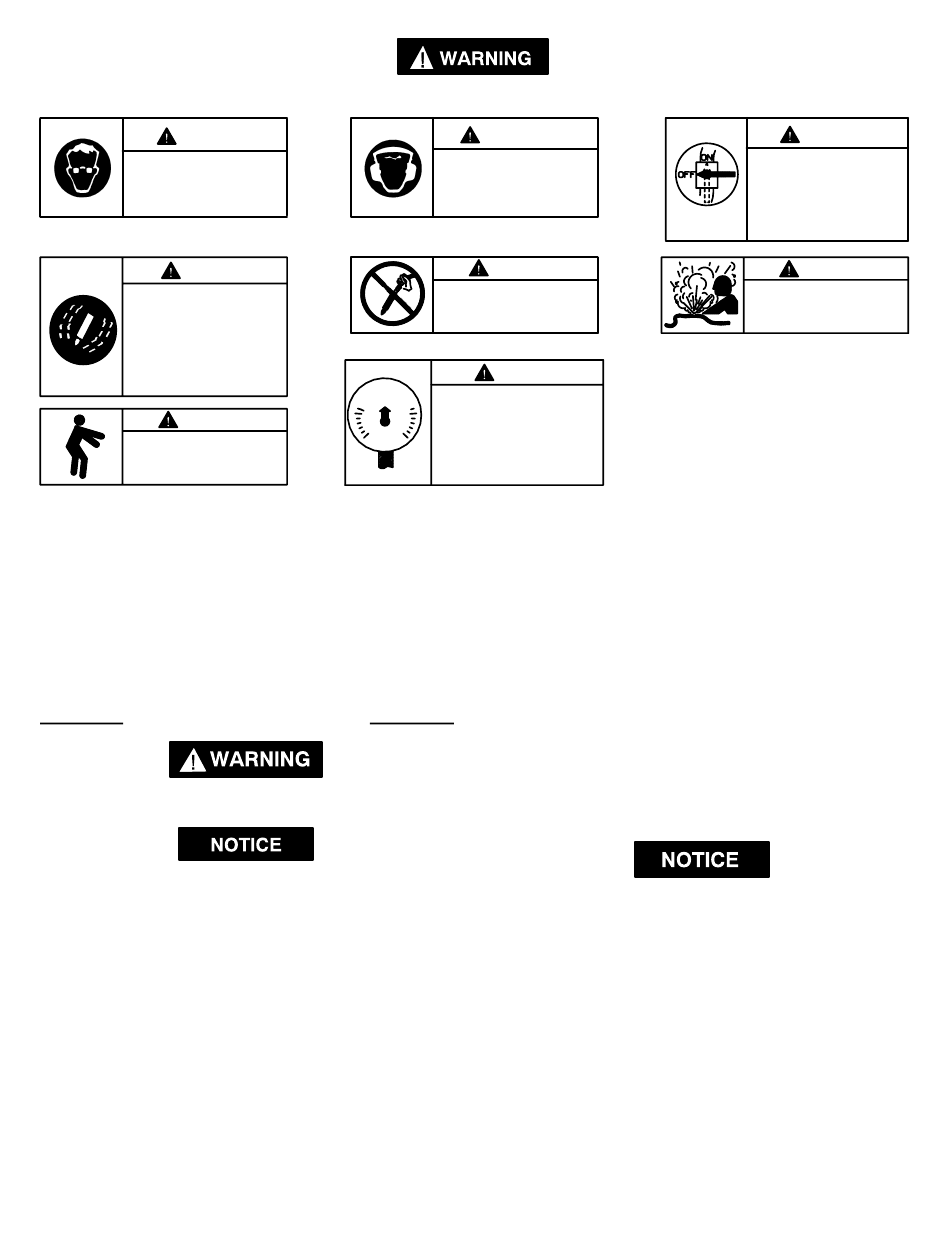

WARNING LABEL IDENTIFICATION
Always wear hearing
protection when operating
this tool.
Do not carry the tool by
the hose.
90 psig
Operate at 90 psig (6.2 bar/
(6.2bar/620kPa)
620 kPa) Maximum air pressure.
ADJUSTMENTS
WARNING
WARNING
WARNING
•
Use accessories recommended by Ingersoll–Rand.
•
This tool is not insulated against electric shock.
•
This tool is not designed for working in explosive
atmospheres.
3. Using a screwdriver that has a #1 Phillips tip, insert the
tip of the screwdriver into the opening and rotate the
screwdriver to adjust the Clutch. Rotate the
screwdriver clockwise to decrease Clutch Spring
tension and torque and counterclockwise to increase
the tension and torque.
The most satisfactory adjustment is usually
obtained by using the tool on the actual application
and increasing or decreasing the delivered torque
until the desired setting is reached. In any event, it
is recommended that final adjustment be made by
gradual progression.
2
WARNING
Always turn off the air sup-
ply and disconnect the air
supply hose before install-
ing, removing or adjusting
any accessory on this tool,
or before performing any
maintenance on this tool.
WARNING
Do not use damaged, frayed
or deteriorated air hoses
and fittings.
