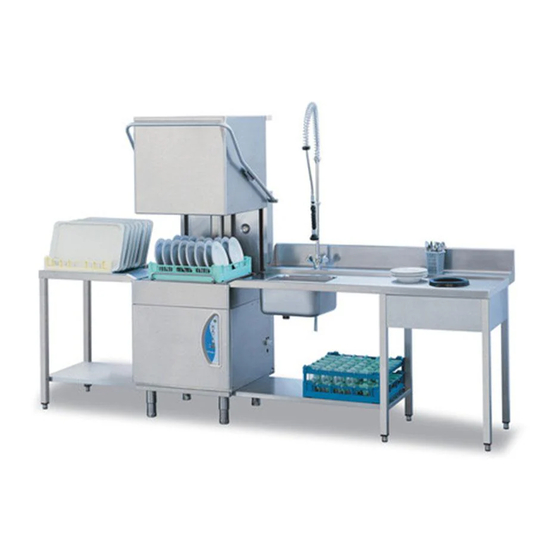

lamber L21 Bedienungsanleitung
Vorschau ausblenden Andere Handbücher für L21:

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

DICHIARAZIONE DI CONFORMITA' - DECLARATION OF CONFORMITY
DECLARATION DE CONFORMITE' - KONFORMITÄTS ERKLÄRUNG
Noi - The following - Nous soussignés - Die Unterzeichnete Fa:
dichiariamo sotto la nostra esclusiva responsabilità che il prodotto
hereby declares under full responsability that the following product
attestons sous notre entière responsabilité que le produit suivant
erklärt unter eigener Verantwortung, dass folgende Produkte
LAVASTOVIGLIE - LAVE-VAISSELLE - DISHWASHING MACHINE - GESCHIRRSPÜLMASCHINE
al quale questa dichiarazione si riferisce è conforme alle seguenti norme:
for which this declaration refers to the conformity of the following standards:
auquel se réfère cette déclaration, est conforme aux normes suivantes:
auf welche sich diese Erklärung bezieht, folgendem Standard entsprechen:
Sicurezza degli apparecchi elettrici d'uso domestico e similare - Norme generali EN60335-1(2002) + A1/A11(2004) + A12 (2006) + A2
(2006).
Safety of household and electrical appliances - General requirements EN60335-1(2002) + A1/A11(2004), A12 (2006) + A2 (2006)
Sicurezza degli apparecchi elettrici d'uso domestico e similare - Norme particolari per lavastoviglie per uso collettivo EN60335-2-58
(2005)
Safety of household and electrical appliances - Part 2^
EN60335-2-58 (2005)
Apparecchi elettrici per uso domestico e similare – Campi elettromagnetici – Metodi per la valutazione e la misura EN50366 (2003) + A1
(2006)
Household and similar electrical appliances – Electromagnetic fields – Methods for evaluation and measurements EN50366(2003)
+A1(2006)
Limiti e metodi di misura delle caratteristiche di radiodisturbo degli apparecchi elettrodomestici, e similari a motore o termici, degli utensili
e degli apparecchi elettrici similari. EN 55014 –1(2000) + A1(2001) + A2(2002)
Limits and methods of measurement of radio disturbance characteristics of electrical motor-operated and thermal appliances for
households and similar purposes, electric tools and similar electric apparatus - EN 55014-1(2000) + A1(2001) + A2(2002)
Limiti per le emissioni di corrente armonica (apparecchiature con corrente di ingresso ≤ 16 A per fase) - EN 61000-3-2(2000) + A2
(2005)
Limits for harmonic current emissions (equipment input current ≤ 16 A per phase) - EN 61000-3-2(2000) + A2 (2005)
Limitazione delle fluttuazioni di tensione e dei flicker in sistemi di alimentazione in bassa tensione per apparecchiature con corrente
nominale ≤ 16 A. EN 61000-3-3(1995) +A1(2001)+A2(2005)
Limitation of voltage fluctuations and flicker in low-voltage supply systems for equipment with rated current ≤ 16 A. EN 61000-3-3(1995)
+A1(2001) + A2(2005)
Requisiti di immunità per apparecchi elettrodomestici, utensili e degli apparecchi elettrici similari EN 55014-2(1997)+ A1(2001)
Immunity requirements for household appliances, tools and similar apparatus. Product family standard EN 55014-2(1997) + A1(2001)
Safety of machinery Basic concepts, general principles for design - Basic terminology, methodology-ISO 12100-1 (2003).
Sicurezza del macchinario, Concetti fondamentali, principi generali di progettazione - Terminologia di base, metodologia – EN ISO
12100-1 (2003).
Safety of machinery - Basic concepts, general principles for design - Technical principles-ISO 12100-2 (2003).
Sicurezza del macchinario, Concetti fondamentali, principi generali di progettazione - Specifiche e principi tecnici – EN ISO 12100-2
(2003).
in base a quanto previsto dalle Direttive:
selon ce qui est prévu par les Directives:
on the basis of what is foreseen by the Directives:
aufgrund der vorgesehenen Richtilinien:
Decliniamo ogni responsabilità per sinistri a persone o a cose derivanti da manomissioni da parte di terzi o da carenze di manutenzione o riparazione.
Nous déclinons toute responsabilité pour sinistres à personnes ou à objets qui derivent de l'intervention de la part de tiers non specialistes ou de
carences de manutention ou reparation.
We decline any responsability for injuries or damage derived from machine misuse, abuse by others or improper machine maintenance or repairs.
Wir Iehnen jegliche Verantwortung für Schäden an Personen oder Dingen ab, die auf fehlerhaftes Eingreifen Dritter oder auf mängelhafte Wartung oder
Reparation zurückzuführen.
li 01/01/09
(data/date/Datum)
L21 / L21-ek
mod.
Particular requirements for commercial electric dishwashing machines
2006/95/CE, 2004/108/CE, 2006/42/CE.
2006/95/EC, 2004/108/EC, 2006/42/EC.
Il socio amministratore

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für lamber L21

  • Seite 1 Verantwortung, dass folgende Produkte LAVASTOVIGLIE - LAVE-VAISSELLE - DISHWASHING MACHINE - GESCHIRRSPÜLMASCHINE L21 / L21-ek mod. al quale questa dichiarazione si riferisce è conforme alle seguenti norme: for which this declaration refers to the conformity of the following standards: auquel se réfère cette déclaration, est conforme aux normes suivantes:...
  • Seite 3 Per informazioni più dettagliate circa il riciclaggio di questo prodotto potete contattare il rivenditore di zona. LAMBER , costruttore della presente apparecchiatura è iscritta al Registro Nazionale dei produttori di AEE IT08020000000617 (Apparecchiature Elettriche ede Elettroniche) dal 18/02/2008 col numero DIRECTIVE “RAEE”...
  • Seite 4 INDICE ITALIANO Note generali pag 05 Introduzione e norme di sicurezza pag. 06 Fate conoscenza con l'apparecchio pag. 10 Parte prima - NORME PER L'UTILIZZATORE pag. 11 Pannello Comandi pag. 12 Funzionamento ed uso; detersivi; manutenzione; inconvenienti possibili pag. 13 Parte seconda - NORME PER L'INSTALLATORE pag.
  • Seite 5: Remarques Generales

    NOTE GENERALI ITALIANO Vi ringraziamo per la scelta da Voi fatta nell'acquisto della Vostra LAVASTOVIGLIE. Il perfetto funzionamento della macchina e risultati di lavaggio ottimali sotto il profilo igienico sanitario potranno essere garantiti solo se tutte le avvertenze del presente Manuale verranno rispettate. Ci auguriamo che le informazioni contenute nel presente manuale Vi siano di aiuto.
  • Seite 6: Norme Generali Di Sicurezza

    INTRODUZIONE ITALIANO E NORME DI SICUREZZA La macchina è una Lavastoviglie a passaggio di tipo industriale. L'apparecchio è conforme alla Direttiva Europea 89/336/CEE (D.M.13/4/1989), relativa alla soppressione dei disturbi radio. Conformemente alle direttive CEE n.23 del 19/02/1973 ed alla legge di attuazione n.791 del 18/10/1987, le nostre Lavastoviglie sono costruite secondo le normative di buona tecnica vigenti in ITALIA e all'ESTERO.
  • Seite 7: Normes Générales De Sécurité

    INTRODUCTION FRANÇAIS ET NORMES DE SECURITE' L’appareille est une lave-vaisselle industriel à translation des casiers. L'appareil est conforme à la Directive Européenne 89/336/CEE , pour ce qui concerne les ennuis de reception. Conformément aux Directives CEE du 19/2/73 et à la Loi de Rélaisation n.791 du 18/10/87, nos lave- vaisselle sont construits selon les normes de bonne technique, en vigueur en Italie et à...
  • Seite 8: General Safety Regulations

    INTRODUCTION ENGLISH AND SAFETY NORMS INTRODUCTION The machine is an Industrial dish-washing machine . The machine is in conformity to the European Norms 89/336/CEE for the radio noises. According to EEC directive nr.23 of 19/02/1973 and the law of actuation nr.791 of 18/10/1987, our appliances are buil-up according to the good technique norms in force in Italy and abroad.
  • Seite 9: Einführung

    DEUTSCH UND SICHEREITSNORMEN EINFÜHRUNG Die maschine L21-ek ist ein industrieller Durchschub-Geschirrspüler . Die Maschine entspricht der Funkentstörung 89/336/CEE. Gemäß der EWU-Richtlinien Nr. 23 vom 10.02.1973 und des Anwendungsgesetzes Nr. 791 vom 18.10.1987, sind unsere Geschirrspüler nach den gültigen Techniknormen in Italien und im Außland gebaut.
  • Seite 10 Fate conoscenza con l'apparecchio Faites connaissance avec l'appareil Learn to use the appliance Wollen Sie den Apparat kennenlernen L21-ek Lavaggio superiore rotante in acciaio inox Lavage supérieur rotatif en acier inoxydable Stainless steel Upper rotating washing Oberer Wascharm rotierend aus Inox Risciacquo superiore rotante in acciaio inox (cono 120°)
  • Seite 11: Instructions Pour L'utilisateur

    NORME PER L'UTENTE INSTRUCTIONS POUR L'UTILISATEUR INSTRUCTIONS FOR THE USER AUFSTELLUNGSANLEITUNG FÜR DEN BENUTZER...
  • Seite 12 Pulsante pompa scarico Bouton pompe de vidange Drain pump pushbutton Taste für Ablaufpumpe Termometri temperatura di lavaggio e risciacquo Thermomètre témperature de lavage et rinçage Wash and rinse thermometer Wasch-und Nachspültemperaturthermometer (solo per seulement pour L21-ek only for nur für) OPTIONAL Dis.1...
  • Seite 13: Funzionamento Ed Uso

    ITALIANO Parte prima - NORME PER L'UTILIZZATORE FUNZIONAMENTO ED USO La macchina lavastoviglie assicura una produzione oraria di 30 cesti/ora. Il grado di protezione della macchina è IP21 e quindi non deve essere lavata con getti di acqua diretti ad alta pressione.
  • Seite 14 • la posizione delle stoviglie nel cestello sia corretta Il risciacquo inizia solamente a temperatura di (vedi paragrafo specifico); regime raggiunta. La durata del tempo di lavaggio scelto verrà quindi prolungata sino al POSIZIONAMENTO DELLE STOVIGLIE raggiungimento della temperatura stabilita (Thermocontrol).
  • Seite 15 MANUTENZIONE GIORNALIERA PULIZIA MANUTENZIONE PREVENTIVA Spegnere Macchina premendo l'interruttore "A" e scaricare l'acqua della PRECAUZIONI ED ISTRUZIONI PER Vasca togliendo il Troppopieno; LA PULIZIA Attendere che tutta l'acqua sia defluita e non vi siano detriti sul fondo della vasca; Togliere dall'interno della Macchina i Filtri IMPORTANTE: Prima eseguire...
  • Seite 16 DETERSIVI La scelta del detersivo appropriato è una condizione indispensabile per ottenere ottimali risultati di lavaggio sotto il profilo igienico. E' quindi importante tenere in considerazione alcuni fattori. Innanzi tutto è necessario usare solo Prodotti Antischiumogeni fortemente Alcalini e Cloroattivi specifici per Lavastoviglie industriali, fabbricati da Ditte di riconosciuta serietà.
  • Seite 17: Avant Le Lavage

    FRANÇAIS Première partie - INSTRUCTIONS POUR L'UTILISATEUR FONCTIONNEMENT ET EMPLOI L'appareil Lave-vaisselle assure une production horaire de30 casiers. L'indice de protection de la machine est IP21. Elle ne doit pas être lavée au jet d'eau directe et à haute pression. La disposition correcte de la vaisselle est condition essentielle pour obtenir les meilleurs résultats de lavage.
  • Seite 18 lavage sera prolongée jusqu’à la stabilisation de PLACEMENT DE LA VAISSELLE la température (thermocontrôle). Pour un lavage optimal des pièces de vaisselle, il est - Cycle infini (maximum 15 minutes) : avec la opportun de prêter attention au positionnement capote fermée et cycle inséré (n’importe quel), pousser correct de celles-ci.
  • Seite 19: Entretien Journalier

    ENTRETIEN JOURNALIER NETTOYAGE ENTRETIEN PREVENTIFS Mettre hors tension la machine en poussant l'interrupteur "A" faire AVERTISSEMENTS écouler l'eau de la cuve en enlevant INSTRUCTIONS DE NETTOYAGE le Trop-plein; Attendre jusqu'à ce que toute l'eau se soit écoulée et qu'il ne reste pas d'ordures sur IMPORTANT: Avant d'effectuer...
  • Seite 20 DETERSIFS Le choix d'un détersif approprié est une condition indispensable pour obtenir des résultats optimaux de lavage sous le profil hygiénique. Il est donc important de tenir compte de quelques facteurs. Tout d'abord, il est nécessaire d'utiliser seulement des produits non-moussants fortement alcalins et chlore-actifs spécifiques pour les lave-vaisselle industriels, fabriqués par des firmes de bonne renommée.
  • Seite 21 ENGLISH First Section - FOR THE USER WORKING AND USE The dishwashing machine can wash up to 30 baskets every hour. The machine protection degree is IP21, therefore it should not be washed with direct high pressure jet water; The correct placing of the objects is an essential condition for a good washing-up result; We suggest to descale dishes, from time to time, in order to remove calcareous and/or starchy sediments by soaking it in suitable solutions suggested by your cleansing agent supplier.
  • Seite 22 Endless cycle (maximum 15 minutes) : the cups you must add a surfactant on water (Brightener). hood being closed and the cycle put on (any Your cleansing agent supplier's will be able to cycle), keep the button “B” pressed for 3 suggest most suitable...
  • Seite 23: Daily Maintenance

    DAILY MAINTENANCE CLEANING PREVENTIVE MAINTENANCE Disconnect the machine with pushbutton "A"; PRECAUTION CLEANING Lift the overflow pipe and let the water INSTRUCTIONS drain out of the tank; Wash thoroughly the tank and the filter housing to remove all impurities; IMPORTANT : Before carrying out the Take the filters out and clean them under cleaning maintenance...
  • Seite 24 CLEANSING AGENTS The choice of a suitable cleansing agent is an essential condition if you want to obtain extremely good washing results as regards hygienic results. That’s why it’s important to consider some points. First of all only highly alkaline and chlorine-active antifoam products, especially made for industrial dish-washing machines, must be used and they must be produced by well-known reliable Firms.
  • Seite 25: Teil 1 - Für Den Benutzer

    DEUTSCH Teil 1 - FÜR DEN BENUTZER ARBEITSWEISE UND ANWENDUNG Die Geschirrspülmaschine erlaubt eine Reinigung von 30 Körbe pro Stunde. Keine alten oder rissigen Geschirrteile verwenden, hier besteht die Gefahr von Bakterienbildung. Bei kalkartiger Ablagerung sollte man von Zeit zu Zeit die Geschirrteile in einer Lösung, die vom Lieferant empfohlen wird, entkalken.
  • Seite 26: Geschirranordnung

    Unendlicher Waschvorgang (Maximum (Tensid) zuzusetzen. Die Maschine ist mit einer Minuten) : das Verdeck geschlossen und der Dosieranlage für Klarspüler ausgerüstet. Waschvorgang angelassen (irgendeiner), den Knopf Die mittlere Konzentration beträgt 0,15 g/l. „B“ 3 Sekunden lang drücken : Lampen 1 und 2 leuchten gleichzeitig auf (außer Thermocontrol);...
  • Seite 27: Vorsichtsmaßnahmen Reinigungsanleitung

    WARTUNG VORSORGLICHE REINIGUNG WARTUNG Die Maschine mit dem Hauptschalter "A" abschalten und das Tankwasser durch VORSICHTSMAßNAHMEN Entfernung des Überlaufrohres ablassen. REINIGUNGSANLEITUNG Abwarten, daß das Wasser völlständig abgelaufen ist, mögliche Abfälle auf dem HAUPTSACHE: Bevor man jegliche Art von Beckenboden entfernen. Wartung, Reinigung oder...
  • Seite 28: Entkalkung

    REINIGUNGSMITTEL Die richtige Wahl des Reinigungsmittels ist Vorausetzung, um optimale hygienische Ergebnisse zu erreichen. Man muß deshalb einige Faktoren in Betracht ziehen: Es sollten nur stark alkalische Schaumverhindernde Reinigungsmittel mit aktivem Chlor für gewerbliche Geschirrspülmaschinen und von namhaften Herstellern verwendet werden. Die mittlere Konzentration sollte für: - pulverförmigen Reiniger 1,5 ÷...
  • Seite 29: Instructions Pour L'installateur

    NORME PER L’INSTALLATORE Le istruzioni che seguono sono rivolte a personale qualificato, il solo autorizzato ad attuare le verifiche e le eventuali riparazioni. La Ditta declina ogni responsabilità nel caso di interventi effettuati da personale non qualificato e/o utilizzo di ricambi non originali. INSTRUCTIONS POUR L'INSTALLATEUR Les instructions suivantes sont adressées à...
  • Seite 30 INSTALLATION SCHEMA ALLACCIAMENTI INSTALLATIONSBLATT INSTALLATION L21 / L21-ek 2000 1300 Altezza massima per scarico a muro - Hauteur maximale pour vidange à mur Maximum height for drain to wall - Maximale Bodenhöhe für Wandwasserablauf Elettrovalvola carico - Electrovanne chargement 3/4" G Water inlet - Wasseranschluß...
  • Seite 31: Collegamento Elettrico

    ITALIANO Parte seconda - NORME PER L'INSTALLATORE Posizionare la macchina in prossimità degli attacchi. In fase di installazione, effettuare un buon livellamento della macchina al fine di consentire un corretto funzionamento della stessa. La Ditta declina ogni responsabilità per gli eventuali danni derivanti dalla mancata osservanza delle norme sotto citate.
  • Seite 32: Alimentazione Idrica

    radiazioni elettromagnetiche sono del tutto ALIMENTAZIONE IDRICA inutili per l'uso specifico in Lavastoviglie. Rispettare rigorosamente Normative CONDOTTO : Provvedere a portare in Nazionali e Regionali esistenti in materia. prossimità della macchina una condotta d'acqua con le seguenti caratteristiche, L'impianto idrico deve avere le seguenti terminante con una saracinesca e con un caratteristiche: attacco filettato maschio da 3/4"...
  • Seite 33: Branchement Electrique

    FRANÇAIS Deuxième partie - INSTRUCTIONS POUR L'INSTALLATEUR Positionner la machine près des attaches. Pendant l'installation, effectuer la mise à niveau de la machine et côntroler à l'aide d'un niveau que la machine soit parfaitement en équilibre. La Maison decline toute responsabilité pour les eventuels dommages derivant du manquée d'observation des normes citees.
  • Seite 34: Branchement Hydraulique

    "Osmose inverse": les procédés basés aux BRANCHEMENT HYDRAULIQUE champs électriques ou aux radiations électromagnétiques sont tout à fait inutiles Respecter rigoureusement normes pour l'usage en lave-vaisselle. Nationales et Régionales concernent la matière. CONDUIT: Disposer près de la machine L'installation doit avoir les caractéristiques un robinet d'arrêt d'eau avec filetage suivantes: taraudé...
  • Seite 35: Electrical Connection

    ENGLISH Second Section - FOR THE INSTALLER During installation, carry-out a good machine levelling, which is a prerequisite for a correct operation thereof. The Manufacturer cannot assume any responsability for any damage to persons or property deriving from the non-observance of the above-specified norms. For correct installation see draw page 30 .
  • Seite 36: Water Connections

    WATER CONNECTIONS TEMPERATURES Carefully comply with any national or Water temperature 55° 60°C ÷ regional regulations in force. Rinse temperature 80° 85°C ÷ Water installation must have the following characteristics: n.b.: To help a correct working of the thermocontrol system, do NOT adjust the Temperature: 55°C thermostat during the washing cycle.
  • Seite 37: Teil 2 - Für Den Installateur

    DEUTSCH Teil 2 - FÜR DEN INSTALLATEUR Die Maschine in Nähe der Anschlüsse aufstellen. Während der Installation die Maschine gut ausrichten, um die gute Funktion der Maschine zu gewährleisten. Unsere Firma ist von jeglicher Verantwortung für eventuelle Schäden befreit, die auf Nichtbeachtung nachstehend aufgeführter Normen zurückzuführen sind.
  • Seite 38: Wasserversorgung

    WASSERVERSORGUNG ARBEITSTEMPERATUREN Wassertemperatur 55°÷60°C Hier müssen die jeweiligen Vorschriften der nationalen und regionalen Länder beachtet Spültemperatur 80°÷85°C werden. n.b.: Für eine richtige Arbeitsweise des Temperatur 55°C Thermocontrols, den Thermostat während des Wenn Maschine Betriebs Hauptwasch Zyklus NICHT Kaltwasser angeschlossen wird, verlängert regulieren! sich der Spülvorgang.
  • Seite 39: Montage Des Tables Montage Der Konsole

    MONTAGGIO RIPIANI MONTAGE DES TABLES TABLES FITTING PLAN MONTAGE DER KONSOLE Per il fissaggio delle mensole laterali vedere il MENSOLA / CONSOLE disegno n."1". SHELF / BRETT Fixer les tables latéraux suivant le schéma "1". To fix the side tables please see drawing above. Um die Seitentische zu befestigen, stellen Sie die Laufschiene ein (siehe oben in Zeichnung "1").
  • Seite 40: Schema Branchements Anschlußschema

    SCHEMA BRANCHEMENTS SCHEMA COLLEGAMENTI CONNECTIONS SCHEME ANSCHLUßSCHEMA L21-L21ek Resistenza BOILER - Résistance SURCHAUFFEUR BOILER Elements - BOILERHEIZUNG Marrone - Marron Brown - Braun Nero - Noir Black - Schwarz Nero - Noir Black - Schwarz Ponticelli - Ponts Staples - Brücke Resistenza VASCA - Résistance CUVE...
  • Seite 41 SCHEMA REGOLAZIONI - SCHEMA REGULATION REGULATION SCHEME - EICHUNG LAVASTOVIGLIE LAVE-VAISSELLE DISHWASHERS GESCHIRRSPÜLER Dosatore risciacquo Doseur de proudit pour rinçage Rinse-aid dispenser Entrata additivo per risciacquo Nachspülmitteldosiergerät Entrée du produit de rinçage Rinse-aid inlet Glanzmitteleingang Termostati Lavaggio e Risciacquo Thermostat Lavage et rinçage Wash and rinse thermostat Tankthermostat und Boilerthermostat Termostati Lavaggio e Risciacquo...
  • Seite 42 SCHEMA ELECTRIQUE SCHEMA ELETTRICO SCHALTSCHEMA WIRING DIAGRAM 400 V3N 50Hz (marrone) (marrone) (nero) (nero) (nero) (rosso) (azzurro) (azzurro) 230 V 50Hz Fa10 Fa11 Fa15 MT1 no Cd 10 uf Interruttore generale Interrupteur général Main switch Hauptschalter Finecorsa Microinterrupteur Limit switch Endschalter Resistenza boiler Résistance Surchauffeur...
  • Seite 43: Scheda Elettronica

    AUTOMATIC CYCLE 1 2 3 4 SELBSTTÄTIGER 1 2 3 4 23” 1 2 3 4 PC-BOARD lavaggio-lavage washing-wasch risciacquo-rinçage rinse-spülung (solo per Cod.0500403 seulement pour only for L21-ek nur für) Cod.0300824 1 2 3 4 1 2 3 4 Cod.0502001...
  • Seite 44 COMPONENTI COMPOSANTS COMPONENTS KOMPONENTEN SCHEDA ELETTRONICA FICHE ELECTRONIQUE P.C.BOARD ELECTRONISCHE STEURUNG CASSETTA QUADRO COMANDO - CONTROL BOARD - BOITE DE CONTROLE - SCHALTTAFEL TASTIERA A MEMBRANA PANNEAU A TOUCHES SENSITIVES SOFT TOUCH CONTROL PANEL MEMBRAN-TASTATUR BASAMENTO SOCLE BASE UNTERBAU...
