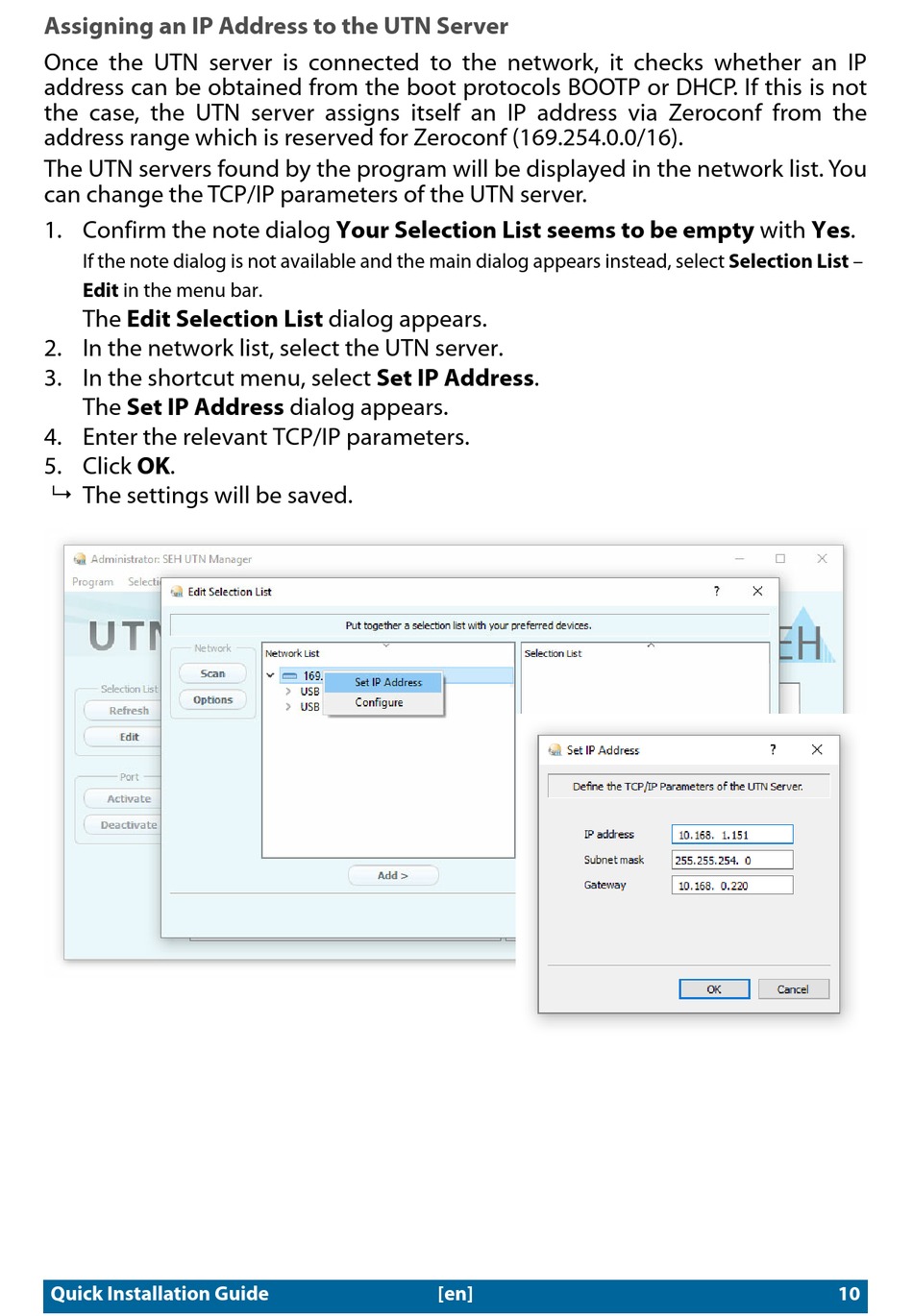

Assigning an IP Address to the UTN Server

Once the UTN server is connected to the network, it checks whether an IP
address can be obtained from the boot protocols BOOTP or DHCP. If this is not
the case, the UTN server assigns itself an IP address via Zeroconf from the
address range which is reserved for Zeroconf (169.254.0.0/16).
The UTN servers found by the program will be displayed in the network list. You
can change the TCP/IP parameters of the UTN server.
1. Confirm the note dialog Your Selection List seems to be empty with Yes.
If the note dialog is not available and the main dialog appears instead, select Selection List –
Edit in the menu bar.
The Edit Selection List dialog appears.
2. In the network list, select the UTN server.
3. In the shortcut menu, select Set IP Address.
The Set IP Address dialog appears.
4. Enter the relevant TCP/IP parameters.
5. Click OK.
 The settings will be saved.
Quick Installation Guide [en] 10
