Dear Customer,
congratulations on your purchase of this high-quality HELIX
ESPRIT amplifier. This series highlights best quality, excel-
lent manufacturing and state-of-the-art technology. After
27 years of experiences in the research & development of
audio products this amplifier generation sets new stan-
dards. The attractive typical HELIX ESPRIT design makes
this amplifier an outstanding and top of the class product.
We wish you many hours of enjoyment with your new
HELIX amplifier.
Yours
AUDIOTEC FISCHER Team
8
General installation instructions for HELIX amplifiers
To find out how HELIX amplifiers work best for you, read this
manual carefully and follow the instructions for installation. We
guarantee that this product has been checked for proper functio-
ning before shipping.
Before you start installation, disconnect the car battery at the
minus pole. We would urge you to have the installation work car-
ried out by a specialist as verification of correct installation and
connection of the unit is a prerequisite for warranty cover of the
HELIX amplifier.
Install your amplifier at a dry location where there is sufficient air
circulation to ensure adequate cooling of the equipment. For
safety reasons, the amplifier must be secured in a professional
manner. This is performed by means of four fixing
screws scr-
ewed into a mounting surface offering sufficient retention and sta-
bility.
Before drilling the holes for the screws, carefully examine the area
around the installation position and make sure that there are no
electrical cables or components, hydraulic brake lines or any part
of the petrol tank located behind the mounting surface - otherwi-
se these could be damaged. You should be aware of the fact that
such components may also be concealed in the double-skin trim
panels/mouldings.
General instruction for connecting the amplifiers
The HELIX amplifiers may only be installed in motor vehicles
which have a 12-volt minus pole connected to the chassis ground.
Any other system could cause damage to the amplifier and the
electrical system of the vehicle.
The plus cable from the battery for the complete system should be
provided with a main fuse at a distance of max. 30 cm from the
battery. The value of the fuse is calculated from the maximum total
current input of the car audio system.
Install the cabling in a manner which precludes any danger of the
leads being exposed to shear, crushing or rupture forces. If there are
sharp edges in the vicinity (e.g. holes in the bodywork) all cables
must be cushioned and protected to prevent fraying.
Never lay the power supply cables adjacent to leads and lines
connecting other vehicle equipment (fan motors, fire detection
modules, gas lines etc.).
In order to ensure safe installation, use only high-quality connections
and materials. Ask your dealer for high quality accessories.

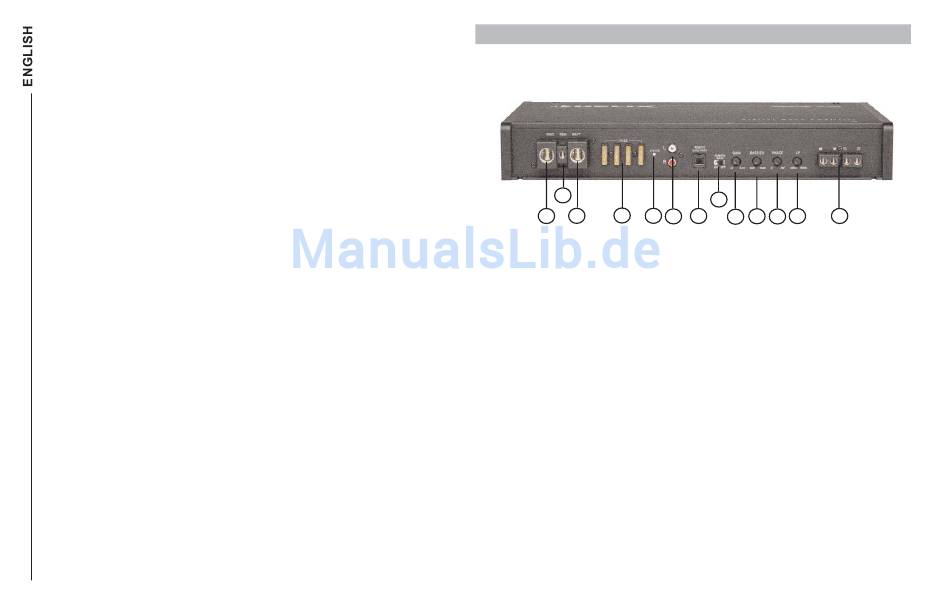

EQUIPMENT FEATURES AND CONTROL ELEMENTS ESPRIT E10
2
3
4
5
1
6
1
Connecting the ground cable
2
Connecting the remote lead
3
Connecting the battery cable
4
Fuses 4 x 20 ampere
5
Power LED
6
Signal inputs
8
13
7
9
10
11
12
7
Connecting Bass Remote
8
Bass Remote control
9
Level control for input sensitivity
10
Bass Boost
11
Phase control
12
Lowpass control
13
Speaker terminals
