TECHNICAL DATA ESPRIT E20
Cont. power rating at 4 Ohms per channel . . . . . . . . . . . . . . . . . . . . . . 2 x 145/200 Watts RMS/Music
Cont. power rating at 2 Ohms per channel . . . . . . . . . . . . . . . . . . . . . . 2 x 225/315 Watts RMS/Music
Cont. power rating bridged at 4 Ohms . . . . . . . . . . . . . . . . . . . . . . . . . 1 x 450/630 Watts RMS/Music
Frequency response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Hz - 30 kHz
Setting range lowpass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Hz - 250 Hz
Setting range highpass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Hz - 250 Hz
Bass Boost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 - 18 dB at 45 Hz
Total harmonic distortion (THD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 0,04%
Signal to noise ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 90 dB
TIM distortion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 0,01 %
Damping factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 150
Input impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 kOhms
Input sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200 mV - 4 V
Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 x 30 Ampere
Dimensions (H x W x D) in mm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 x 405 x 217
Weight net. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4,5 kg
WARRANTY REGULATION
Due to the high quality standard Helix products achieved an
excellent international reputation. Therefore we grant a warran-
ty period of 2 years.
The products checked and tested carefully during the entire pro-
duction process. In the case of service note the following:
1) The 2 years warranty period commences with the purchase
of the product and is applicable only to the original owner.
2) During the warranty period we will rectify any defects
due to faulty material or workmanship by replacing or repai
ring the defective part at our decision.
Further claims, and in particular those for price reduction,
cancellation of sale, compensation for damages or subse
quential damages, are excluded. The warranty period is not
altered by the fact that we have carried out warranty work.
3) Unauthorized tampering with the product will invalidate this
warranty.
4) Consult your authorized dealer first, if warranty service is
needed. Should it be necessary to return the product to the
fac tory, please ensure that
a) the product is packed in original factory packing in
good condition
b) the warranty card has been filled out and attached to the
product
c) the product is shipped prepaid, i.e. at your expense
and risk
d) the receipt/invoice as proof of purchase is enclosed
5) Excluded from the warranty are:
a) Shipping damages, either readily apparent or concea-
led (claims for such damages must be immediately
notified to the forwarding agent).
b) Scratches in metal parts, front panels or covers etc.
This must be notified to your dealer within 5 days of purchase.
c) Defects caused by incorrect installation or connec-
tion, by operation errors, by overloading or by external force.
d) Products which have been repaired incorrectly or
modified or where the product has been opened by
other persons than us.
e) Consoquential damages to other equipments.
f) Reimbursement when repairing damages by third
parties without our previous permission.

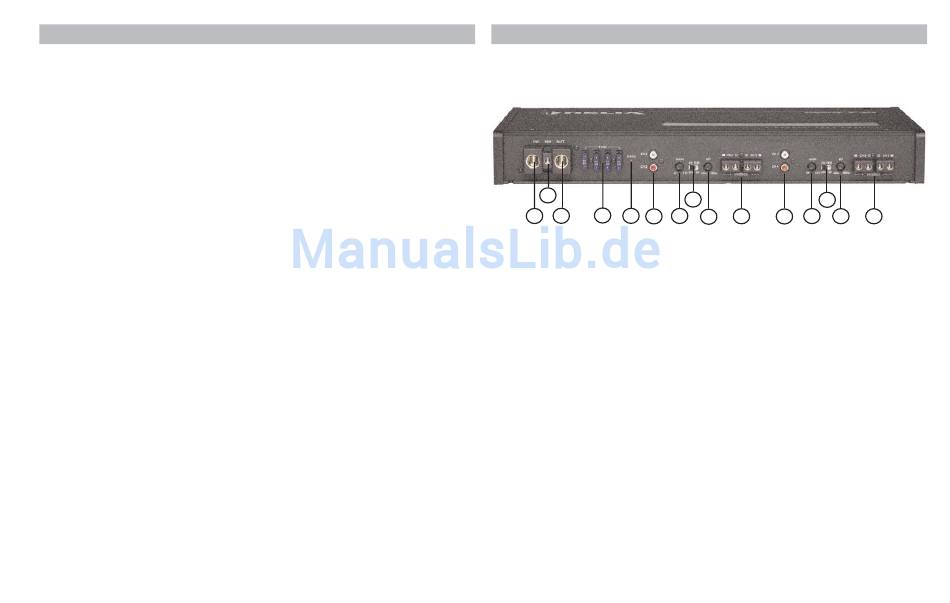

EQUIPMENT FEATURES AND CONTROL ELEMENTS ESPRIT E40
2
3
4
5
1
6
7
1
Connecting the ground cable
2
Connecting the remote lead
3
Connecting the battery cable
4
Fuses 4 x 15 ampere
5
Power LED
6
Signal inputs CH 1 + CH 2
7
Level controls for input sensitivity
8
Highpass on/off
9
Highpass control
10
Speaker terminals CH 1 + CH 2
8
13
9
10
11
12
14
15
11
Signal inputs CH 3 + CH 4
12
Level controls for input sensitivity
13
Highpass on/off
14
Highpass control
15
Speaker terminals CH 3 + CH 4
11
