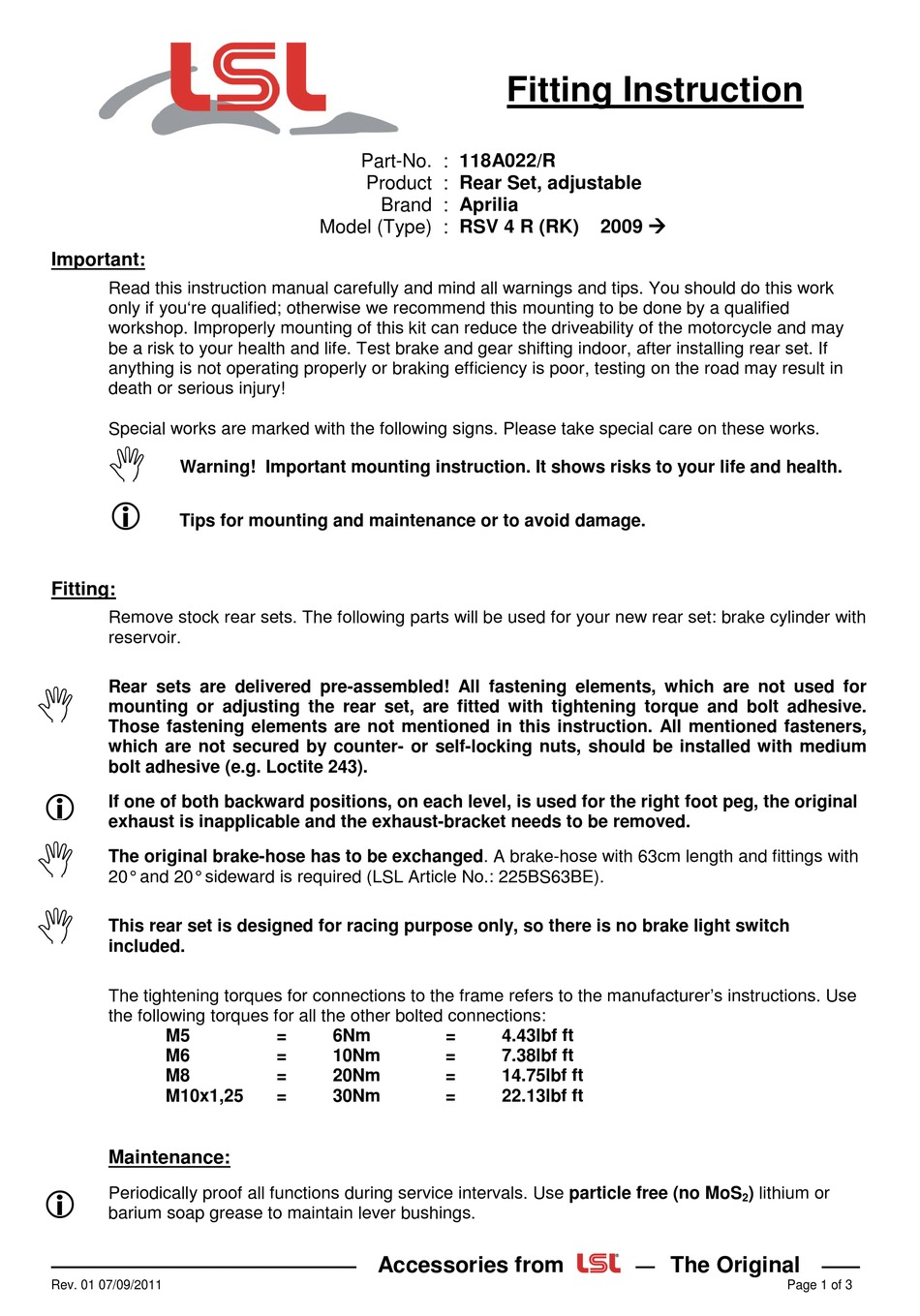

Important:
Read this instruction manual carefully and mind all warnings and tips. You should do this work
only if you're qualified; otherwise we recommend this mounting to be done by a qualified
workshop. Improperly mounting of this kit can reduce the driveability of the motorcycle and may
be a risk to your health and life. Test brake and gear shifting indoor, after installing rear set. If
anything is not operating properly or braking efficiency is poor, testing on the road may result in
death or serious injury!
Special works are marked with the following signs. Please take special care on these works.
Warning! Important mounting instruction. It shows risks to your life and health.
Tips for mounting and maintenance or to avoid damage.
Fitting:
Remove stock rear sets. The following parts will be used for your new rear set: brake cylinder with
reservoir.
Rear sets are delivered pre-assembled! All fastening elements, which are not used for
mounting or adjusting the rear set, are fitted with tightening torque and bolt adhesive.
Those fastening elements are not mentioned in this instruction. All mentioned fasteners,
which are not secured by counter- or self-locking nuts, should be installed with medium
bolt adhesive (e.g. Loctite 243).
If one of both backward positions, on each level, is used for the right foot peg, the original
exhaust is inapplicable and the exhaust-bracket needs to be removed.
The original brake-hose has to be exchanged. A brake-hose with 63cm length and fittings with
20° and 20° sideward is required (LSL Article No.: 225BS63BE).
This rear set is designed for racing purpose only, so there is no brake light switch
included.
The tightening torques for connections to the frame refers to the manufacturer's instructions. Use
the following torques for all the other bolted connections:
M5
M6
M8
M10x1,25
Maintenance:
Periodically proof all functions during service intervals. Use particle free (no MoS
barium soap grease to maintain lever bushings.
————————————————
Rev. 01 07/09/2011
Part-No. : 118A022/R
Product : Rear Set, adjustable
Brand : Aprilia
Model (Type) : RSV 4 R (RK)
=
6Nm
=
=
10Nm
=
=
20Nm
=
=
30Nm
=
Accessories from
Fitting Instruction
2009
4.43lbf ft
7.38lbf ft
14.75lbf ft
22.13lbf ft
The Original
—
) lithium or
2
——
Page 1 of 3
