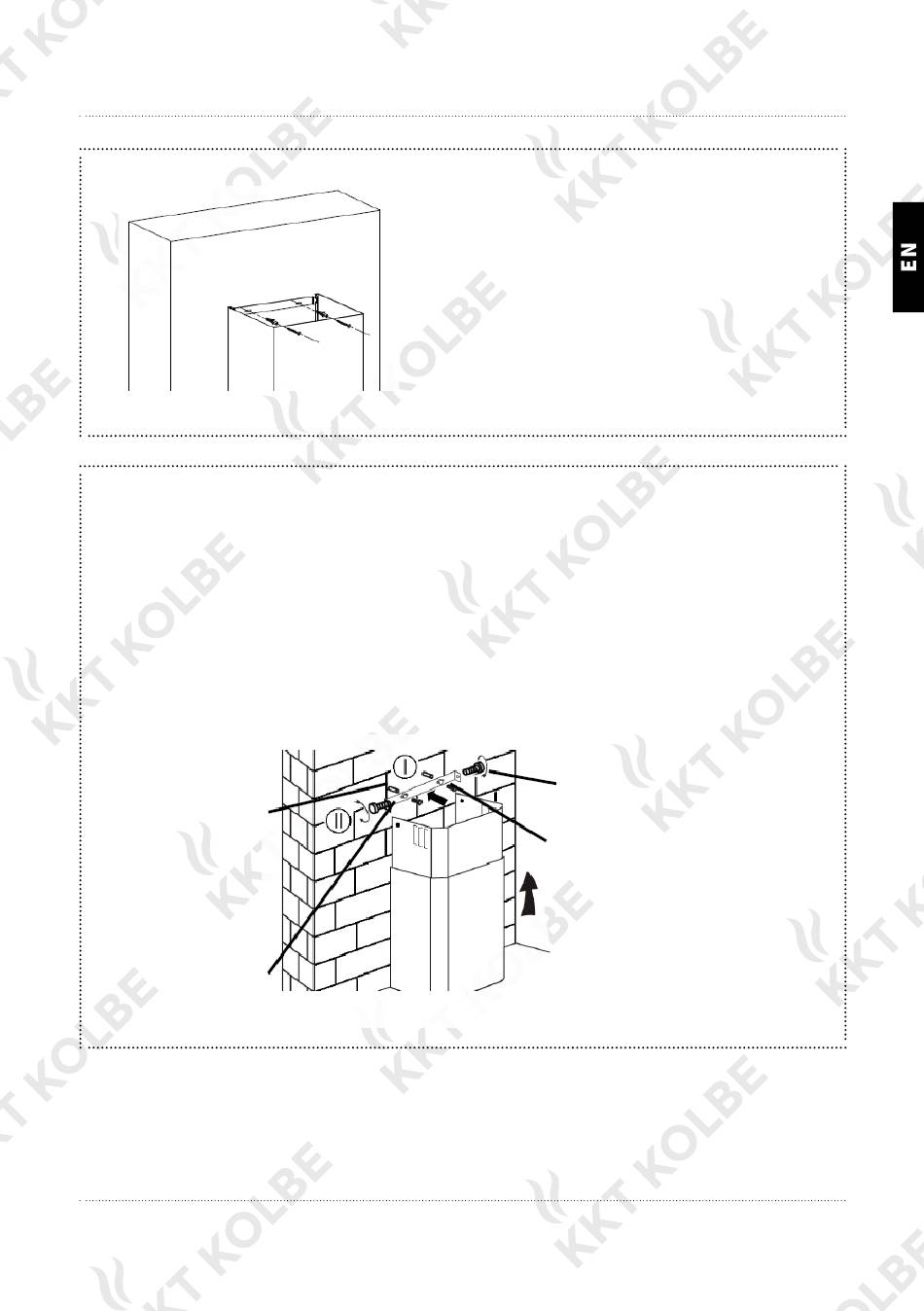

Mounting the hood
• Pull out the upper / inner shaft part to the desired height upwards,
mark the mounting holes for the upper shaft bracket on the wall and
pre-drill the marked points.
• Fasten the upper shaft bracket with 2 dowels and 2x ST4 x 30mm
screws on the wall at the drilled points.
• Fasten the upper / inner shaft part to the bracket with 2 x ST4 x 8mm
screws.
Wall
plug
Shaft bracket
• Place the shaft on the hood body.
• Mark the mounting holes on the wall and
pre-drill the markings.
• Fasten the lower chimney bracket with
2 plugs and screws (4 mm x 30 mm) on
the wall.
4mm x 8mm screw
4mm x 30mm screw
