Installation
8.3 Using the extractor hood as
an exhaust air hood (with air
extracted to outdoors)
If the extractor hood has been fitted at
the factory with a carbon filter, this must
be removed for exhaust air operation.
It is only practicable to use this when
operating your hood in circulation
mode.
8.4 Converting the extractor
hood to a circulation hood
If you wish to use the hood as a circulati-
on hood, you must mount the activated
carbon filter(s) to the fan motor before
using the hood. If not included in the
scope of supply, you must obtain the
carbon filter(s) from the supplier of your
extractor hood.

8.5 Mounting the carbon filter

• Remove the metal grease filter.
• The carbon filter is mounted in two
parts to the right and left of the motor.
Check whether the teeth correspond
to the direction of the rotation of the
respective side.

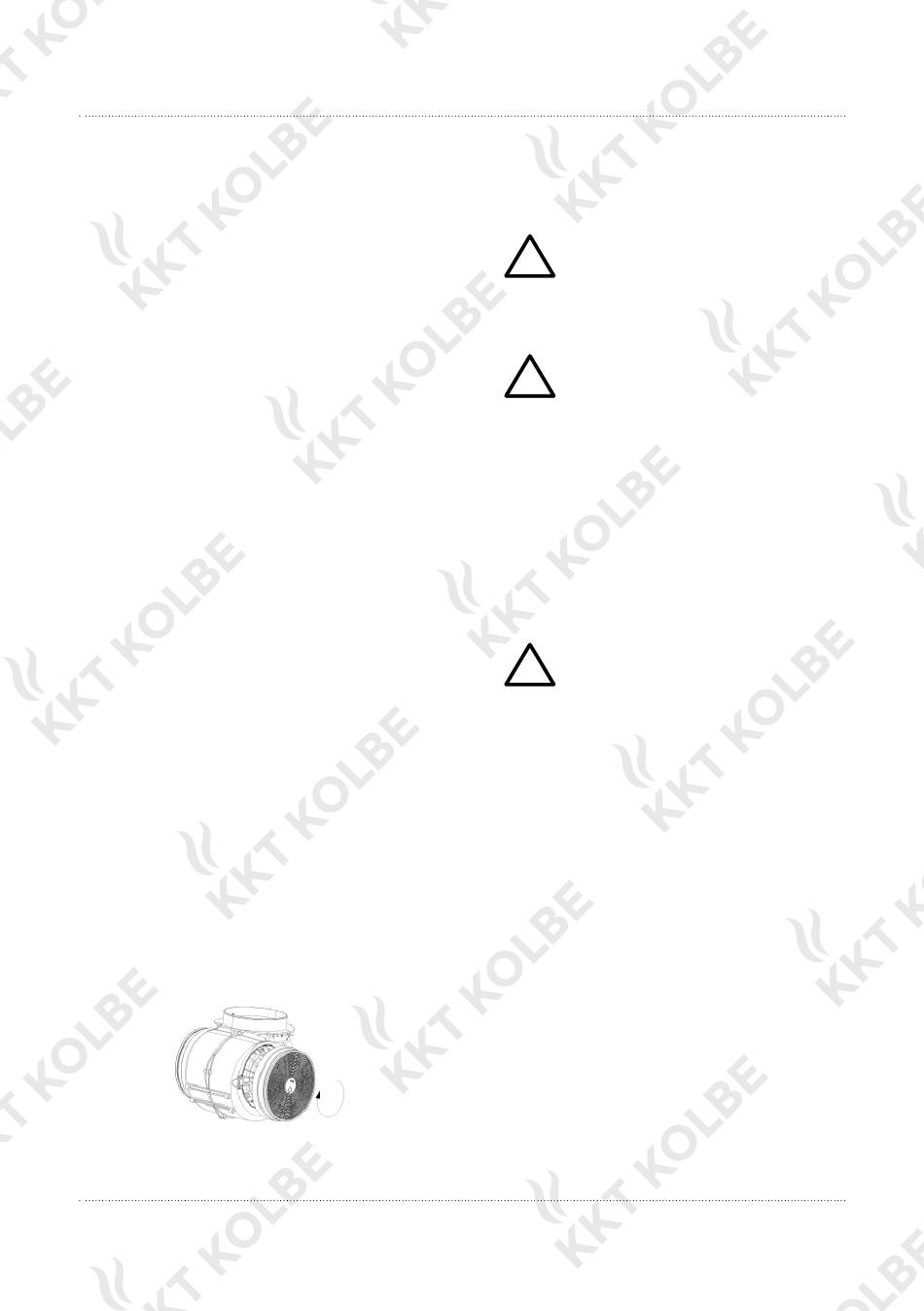

• Turn the activated carbon filter onto
the motor housing (usually clockwise).
• Reinsert the metal filter.
38

8.6 Electrical connection

!
Only connect the appliance to the po-
wer supply once it is properly installed.
!
Never install the appliance if the data
on the rating plate (V) does not agree
with your supply voltage.
You will find the rating plate inside the
appliance, behind the grease filter.
If the extractor hood is fitted with a
standard connector plug, connect this
to an easily accessible standard socket.
!
If the appliance is not fitted with a con-
nector plug, a two-pole switch, confor-
ming to standards with a minimum open
contact gap of 3 mm is to be installed by
an authorized tradesman in an easily ac-
cessible location.
When the hood is connected to the
mains, all control lamps light up briefly
and the hood switches to standby mode
(accompanied by a beep signal).
