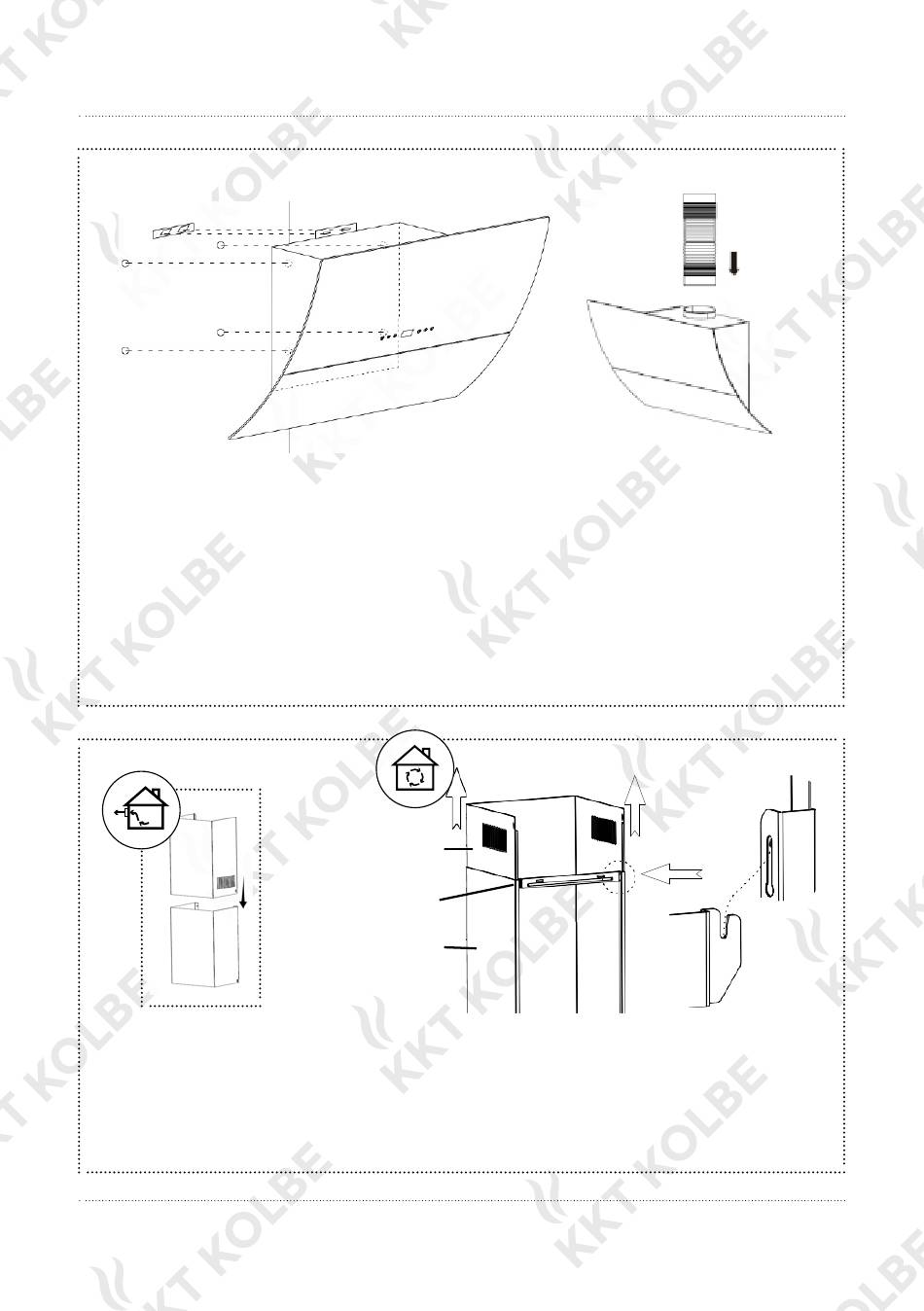

Mounting the hood
• Open the glass plate and remove the metal grease filter.
Mark the four mounting holes from the inside of the hood.
• Take off the hood again. Drill four ø 8 mm holes in the wall at the marked points
and insert the wall plugs into the holes.
Chimney installation.
• Hang the cooker hood on the wall bracket and fix it to the wall plugs with the
screws from the inside of the hood.
Place the upper chimney into lower chimney
--
--
• Attach the exhaust hose to the outlet. Attach the lower chimney bracket to the lower chimney
Mark and drill 2 holes to fix the lower chimney bracket with
--
2 wall plugs and 2 screws ST4x30mm
Upper chimney
Lowerchimney
• Slide the upper shaft part into the lower one, paying attention to the position of
the ventilation slots according to the use for exhaust or circulating air (See figure).
• Attach the shaft bracket to the lower / outer shaft part.
40
Upper / Inner
shaft part
Shaft bracket
Lower / Outer
shaft part
