Promac JMDT-764016 Bedienungsanleitung Seite 25

Index Part
No. No.
1 ................ JMDT76-300102 .................. Base ............................................................... ..............................................1
1 ................ JMDT76-10002/40H ............ base ............................................................... ..............................................1
2 ................ JMDT76-10001/40H ............ column .......................................................... ..............................................1
3 ................ JMDT76-10003/40H ............ lifting table .................................................... ..............................................1
4 ................ JMDT76-10005/40H ............ slip saddle ..................................................... ..............................................1
5 ................ JMDT76-10004/40H ............ work table ..................................................... ..............................................1
6 ................ JMDT76-10016/40H ............ elevating body............................................... ..............................................1
7 ................ JMDT76-10014/40 .............. column lid ..................................................... ..............................................1
8 ................ JMDT76-10012/40H ............ locked guide ring ........................................... ..............................................1
9 ................ JMDT76-10014/40H ............ up rack .......................................................... ..............................................1
10 .............. JMDT76-10015/40H ............ low rack ......................................................... ..............................................1
11 .............. JMDT76-10011/40H ............ guide ring ...................................................... ..............................................1
12 .............. JMDT76-10013/40H ............ fixed ring ....................................................... ..............................................1
13 .............. JMDT76-10006/40H ............ gib strip ......................................................... ..............................................1
14 .............. JMDT76-10007/40H ............ gib strip ......................................................... ..............................................1
15 .............. JMDT76-10106/40 .............. adjust screw .................................................. ..............................................2
16 .............. JMDT76-10203/40 .............. guide screw nut ............................................. ..............................................1
17 .............. JMDT76-10202/40 .............. guide screw ................................................... ..............................................1
18 .............. JMDT76-10021/40 .............. guide screw support ..................................... ..............................................1
19 .............. JMDT76-10020/40 .............. right support ................................................. ..............................................1
20 .............. JMDT76-10019/40 .............. left support ................................................... ..............................................1
21 .............. ............................................ bearing .......................................................... 51103 ....................................4
22 .............. JMDT76-10008/40H ............ table screw .................................................... ..............................................1
23 .............. JMDT76-10009/40H ............ base screw .................................................... ..............................................1

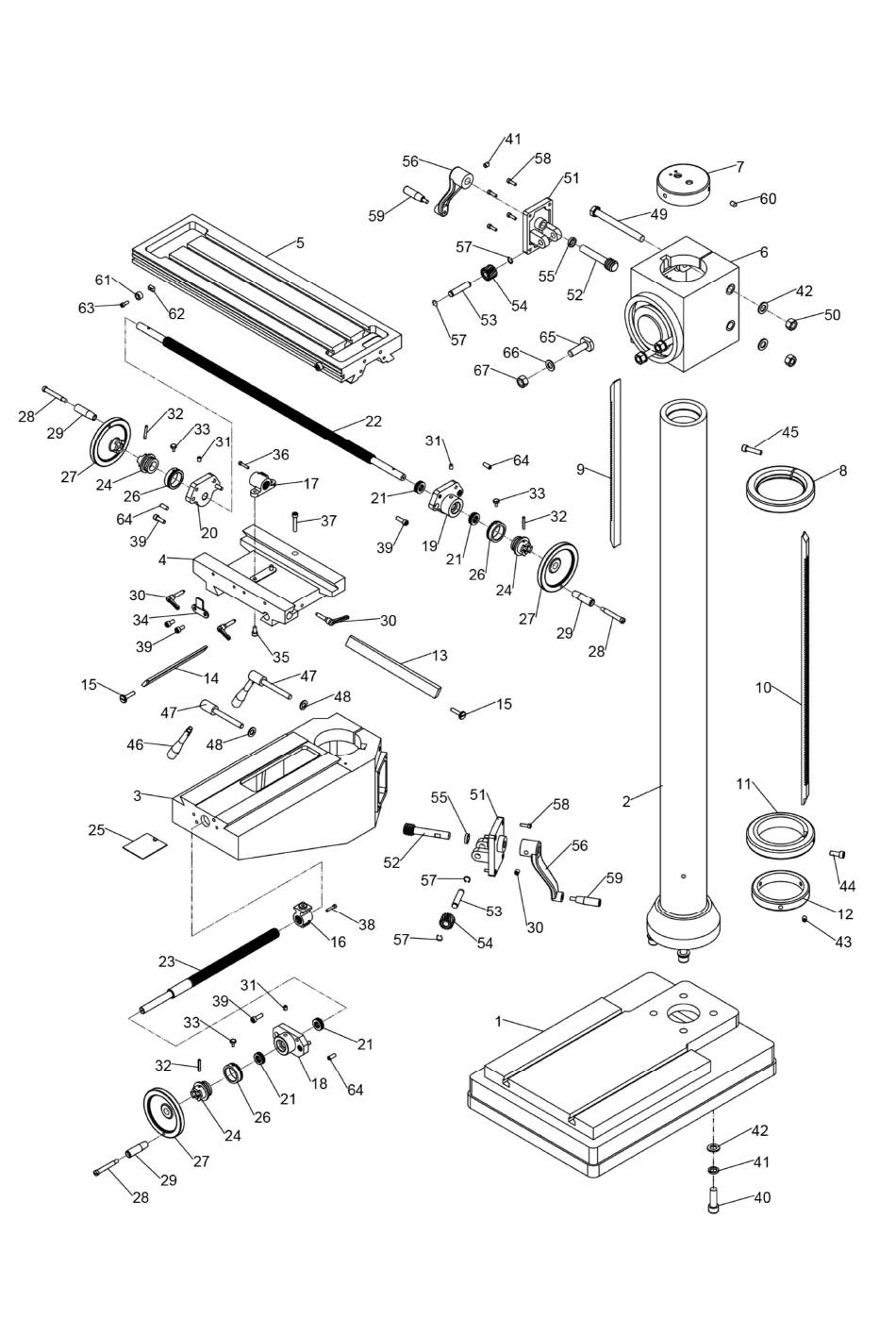

JMDT-764016 Assembly Breakdown -2
JMDT-764016 Parts List for Breakdown -2
Description Size Qty.
