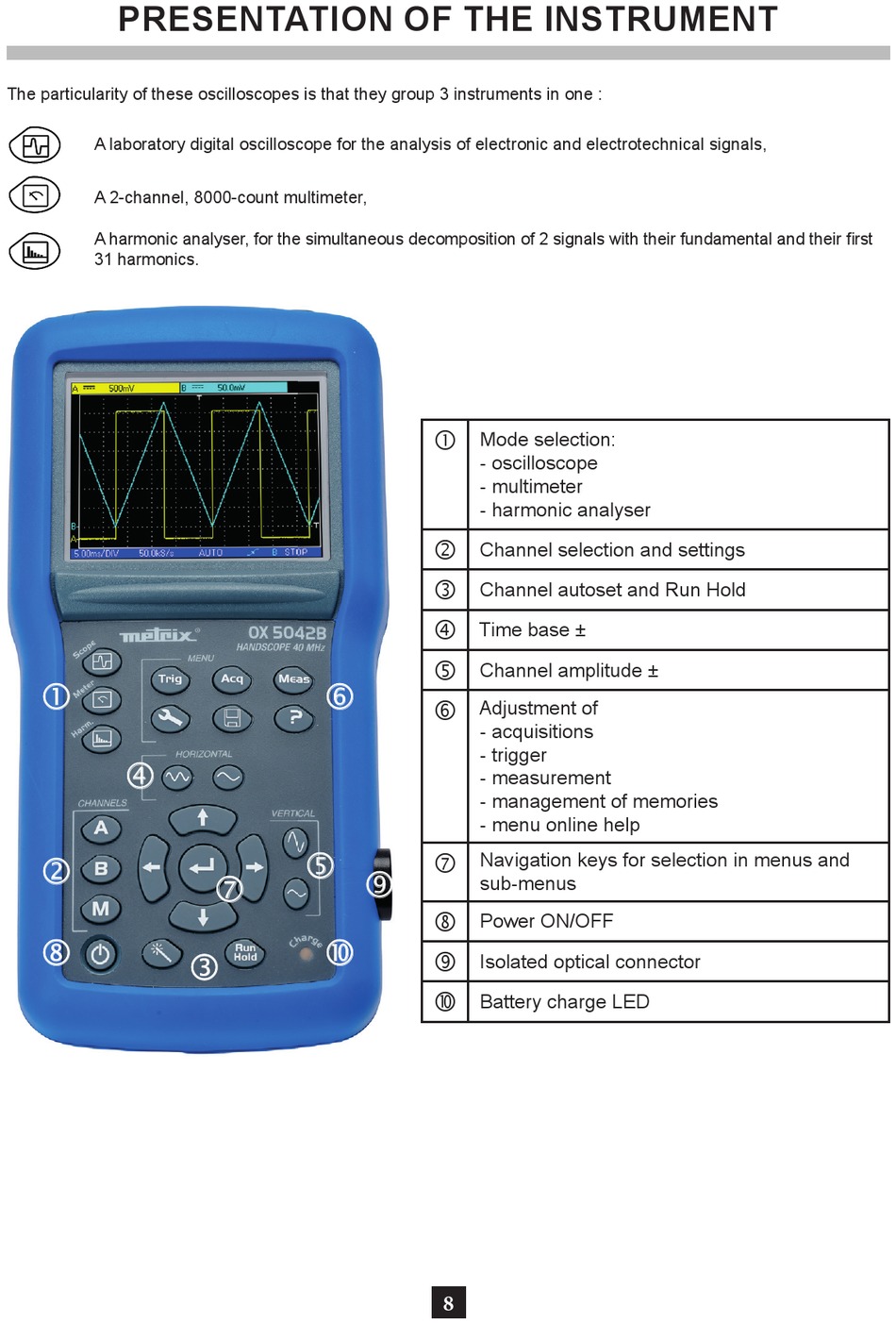

PRESENTATION OF THE INSTRUMENT

The particularity of these oscilloscopes is that they group 3 instruments in one :
A laboratory digital oscilloscope for the analysis of electronic and electrotechnical signals,
A 2-channel, 8000-count multimeter,
A harmonic analyser, for the simultaneous decomposition of 2 signals with their fundamental and their first
31 harmonics.
 Mode selection:
- oscilloscope
- multimeter
- harmonic analyser

Channel selection and settings

Channel autoset and Run Hold

Time base ±

Channel amplitude ±
Adjustment of

- acquisitions
- trigger
- measurement
- management of memories
- menu online help
Navigation keys for selection in menus and

sub-menus
 Power ON/OFF

Isolated optical connector
 Battery charge LED
