Metrix HandScope OX5022B Schnellstartanleitung Seite 11

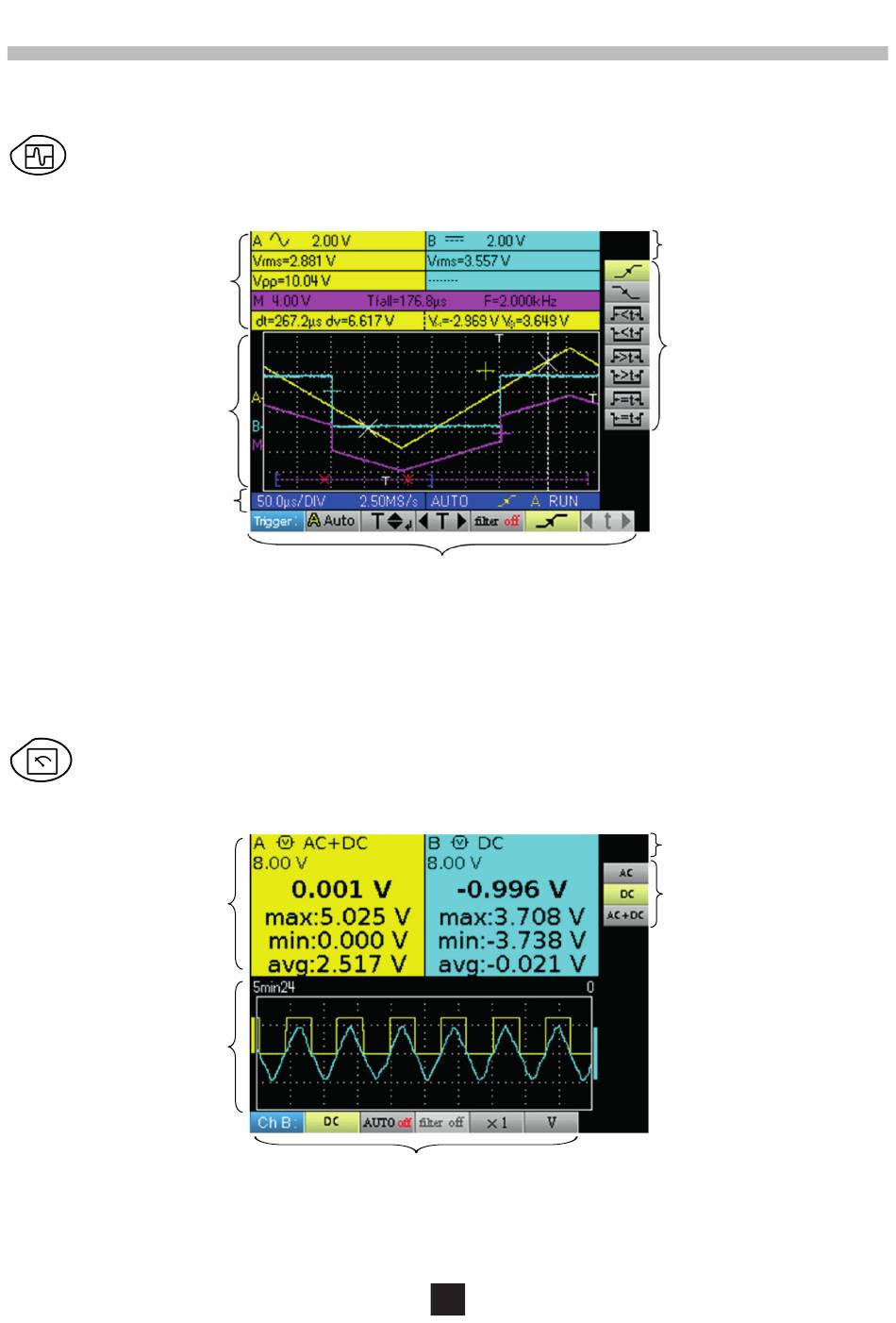

OSCILLOSCOPE:
Select the «Oscilloscope» mode
Channel data area
Area for main display
Time data area
MULTIMETER:
Select the «Multimeter» mode
Measurement zone
If the measurement is not possible,
dotted lines will be displayed. If the
channel is not validated the
measurement will be replaced
Graphic window area
CHOICE OF MODE
by «x».
Main menu area
Main menu area
11
Battery information zone,
if level is low
Secondary menu area
Battery info. area
Secondary menu area
