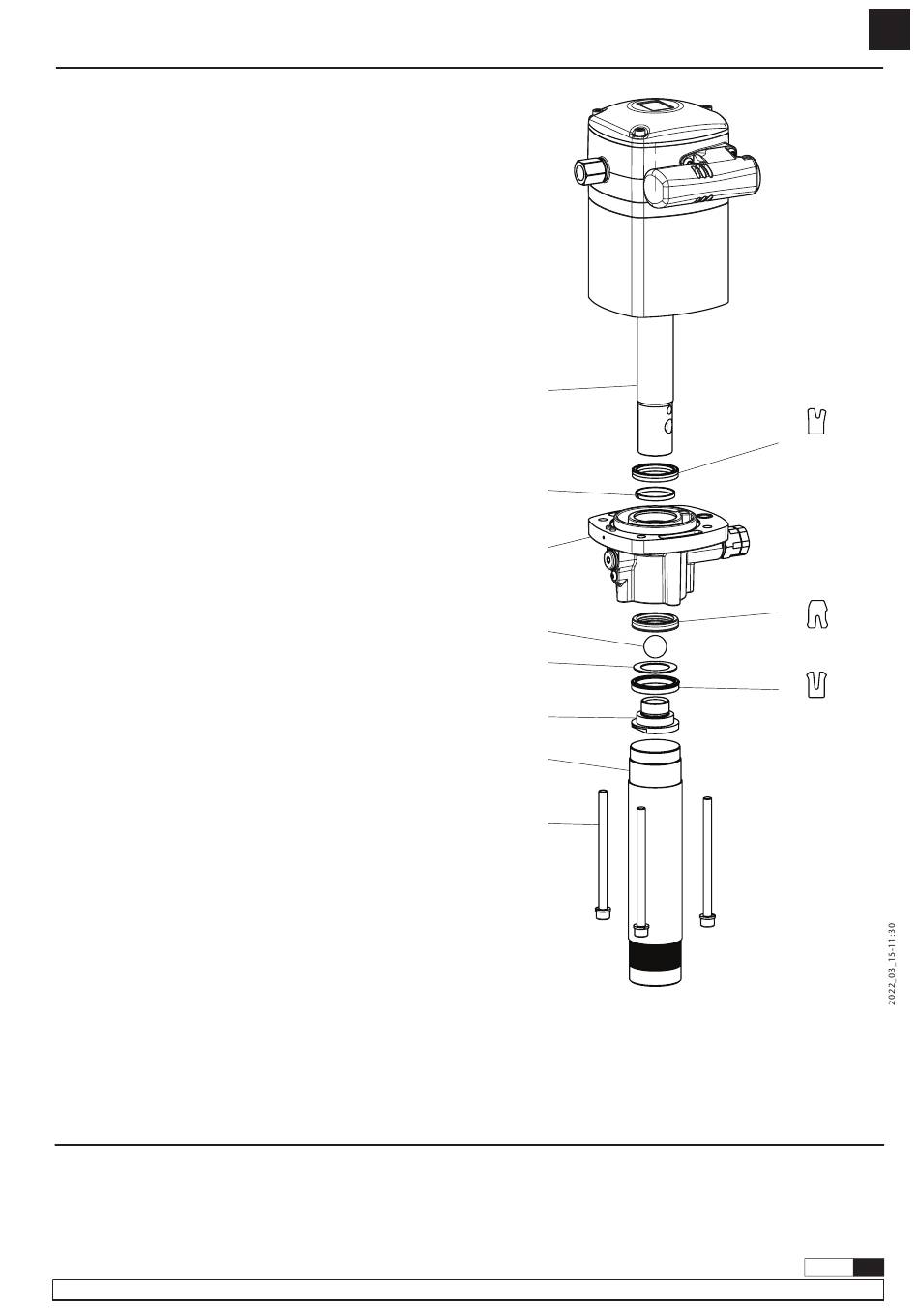

REPAIR AND CLEANING PROCEDURE
LOWER SEALS KIT
For easier service, it is recommended to stop the pump near
the lowest stroke position.
1. Unscrew the tube (63) from the pump body (70).
2. Unscrew the piston (62) from the rod (30). Take away the ball (59) and
the washer (60). Replace the V-ring (61).
3. Unscrew bolts (58), remove the outlet body (70) and replace the
seals (45, 47) and guide ring (46).
4. Reassemble in reverse order, applying thread locker in all joints.
5. All these seals are included in the available kit 539503.
PARTS LIST / TECHNICAL DATA / DIMENSIONS
SPARE PARTS SEE PAGES: 22, 27 and 28.
