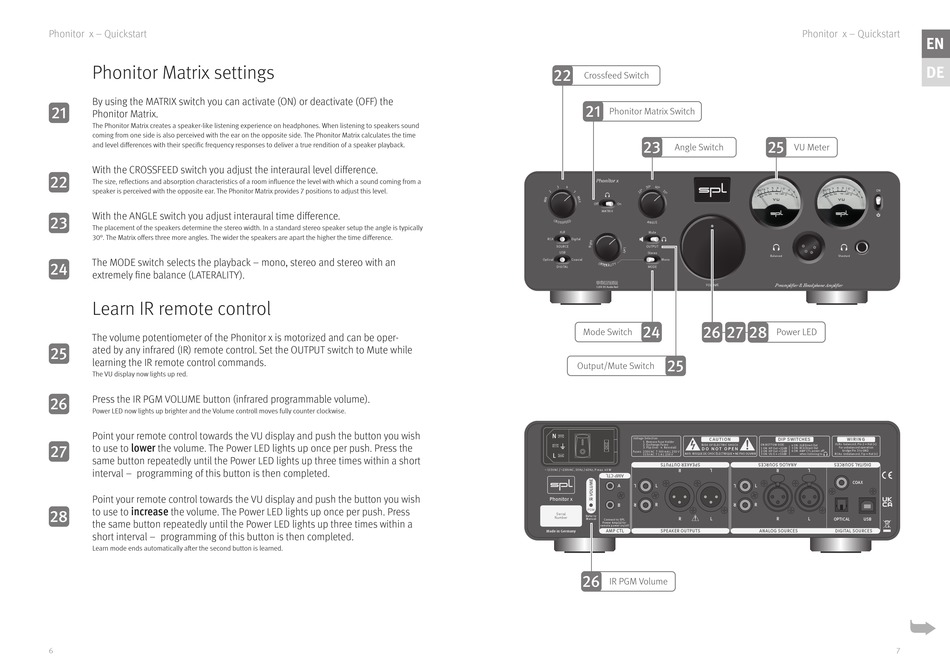

Phonitor x – Quickstart
Phonitor Matrix settings
By using the MATRIX switch you can activate (ON) or deactivate (OFF) the
Phonitor Matrix.
The Phonitor Matrix creates a speaker-like listening experience on headphones. When listening to speakers sound
coming from one side is also perceived with the ear on the opposite side. The Phonitor Matrix calculates the time
and level diff erences with their specifi c frequency responses to deliver a true rendition of a speaker playback.
With the CROSSFEED switch you adjust the interaural level diff erence.
The size, reflections and absorption characteristics of a room influence the level with which a sound coming from a
speaker is perceived with the opposite ear. The Phonitor Matrix provides 7 positions to adjust this level.
With the ANGLE switch you adjust interaural time diff erence.
The placement of the speakers determine the stereo width. In a standard stereo speaker setup the angle is typically
30°. The Matrix off ers three more angles. The wider the speakers are apart the higher the time diff erence.
The MODE switch selects the playback – mono, stereo and stereo with an
extremely fi ne balance (LATERALITY).
Learn IR remote control
The volume potentiometer of the Phonitor x is motorized and can be oper-
ated by any infrared (IR) remote control. Set the OUTPUT switch to Mute while
learning the IR remote control commands.
The VU display now lights up red.
Press the IR PGM VOLUME button (infrared programmable volume).
Power LED now lights up brighter and the Volume controll moves fully counter clockwise.
Point your remote control towards the VU display and push the button you wish
lower
to use to the volume. The Power LED lights up once per push. Press the
same button repeatedly until the Power LED lights up three times within a short
interval – programming of this button is then completed.
Point your remote control towards the VU display and push the button you wish
increase
to use to the volume. The Power LED lights up once per push. Press
the same button repeatedly until the Power LED lights up three times within a
short interval – programming of this button is then completed.
Learn mode ends automatically aft er the second button is learned.
6
Crossfeed Switch
Phonitor Matrix Switch
Angle Switch
Phonitor x
Off On
MATRIX
XLR Mute
RCA Digital
SOURCE OUTPUT
USB Stereo
Optical Coaxial Mono
DIGITAL MODE
VOLTAiR
120V DC Audio Rail
Mode Switch
Output/Mute Switch
Voltage Selection: C A U T I O N
1. Remove Fuse Holder
2. Exchange Fuses RISK OF ELECTRIC SHOCK
3. Flip Over 4. Reinstall
D O N O T O P E N
Fuses: 230V AC: T 500 mA L 250 V
115V AC: T 1 A L 250 V AVIS: RISQUE DE CHOC ÉLECTRIQUE • NE PAS OUVRIR
~ 115V AC / ~230V AC, 50 Hz / 60 Hz, P max. 45 W
A L
Phonitor x
IR
R
B
PGM
Serial
Refer to
Number R L
Manual Connect to SPL
Power Amp(s) for
remote power on/off
AMP CTL SPEAKER OUTPUTS
Made in Germany
IR PGM Volume
Phonitor x – Quickstart
EN
DE
VU Meter
ON
Balanced Standard
Preamplifier & Headphone Amplifier
Power LED
DIP SWITCHES W I R I N G
ON BOTTOM SIDE: XLRs: balanced, Pin 2 = Hot (+)
4 ON: XLR Direct Out
For unbalanced operation
1 ON: HP Out +22dB 5 ON: RCA Direct Out
bridge Pin 3 to GND.
2 ON: HP Out +12dB 6 ON: AMP CTL power off
when listening to
3 ON: VU 0 = +10dB RCAs: Unbalanced, Tip = Hot (+)
COAX
L
R
R L
OPTICAL USB
ANALOG SOURCES DIGITAL SOURCES
