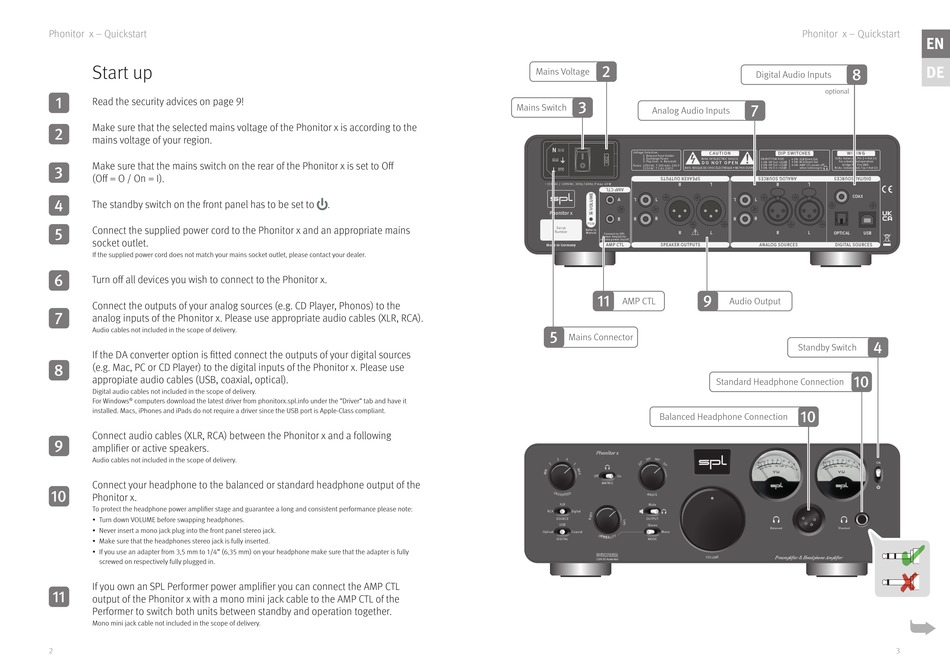

Phonitor x – Quickstart
Start up
Read the security advices on page 9!
Make sure that the selected mains voltage of the Phonitor x is according to the
mains voltage of your region.
Make sure that the mains switch on the rear of the Phonitor x is set to Off
(Off = O / On = I).
The standby switch on the front panel has to be set to
Connect the supplied power cord to the Phonitor x and an appropriate mains
socket outlet.
If the supplied power cord does not match your mains socket outlet, please contact your dealer.
6
Turn off all devices you wish to connect to the Phonitor x.
Connect the outputs of your analog sources (e.g. CD Player, Phonos) to the
analog inputs of the Phonitor x. Please use appropriate audio cables (XLR, RCA).
Audio cables not included in the scope of delivery.
If the DA converter option is fi tted connect the outputs of your digital sources
8
(e.g. Mac, PC or CD Player) to the digital inputs of the Phonitor x. Please use
appropiate audio cables (USB, coaxial, optical).
Digital audio cables not included in the scope of delivery.
For Windows computers download the latest driver from phonitorx.spl.info under the "Driver" tab and have it
®
installed. Macs, iPhones and iPads do not require a driver since the USB port is Apple-Class compliant.
Connect audio cables (XLR, RCA) between the Phonitor x and a following
amplifi er or active speakers.
Audio cables not included in the scope of delivery.
Connect your headphone to the balanced or standard headphone output of the
Phonitor x.
To protect the headphone power amplifi er stage and guarantee a long and consistent performance please note:
• Turn down VOLUME before swapping headphones.
• Never insert a mono jack plug into the front panel stereo jack.
• Make sure that the headphones stereo jack is fully inserted.
• If you use an adapter from 3,5 mm to 1/4" (6,35 mm) on your headphone make sure that the adapter is fully
screwed on respectively fully plugged in.
If you own an SPL Performer power amplifi er you can connect the AMP CTL
output of the Phonitor x with a mono mini jack cable to the AMP CTL of the
Performer to switch both units between standby and operation together.
Mono mini jack cable not included in the scope of delivery.
