Cavecool CCI92SB Bedienungsanleitung Seite 23

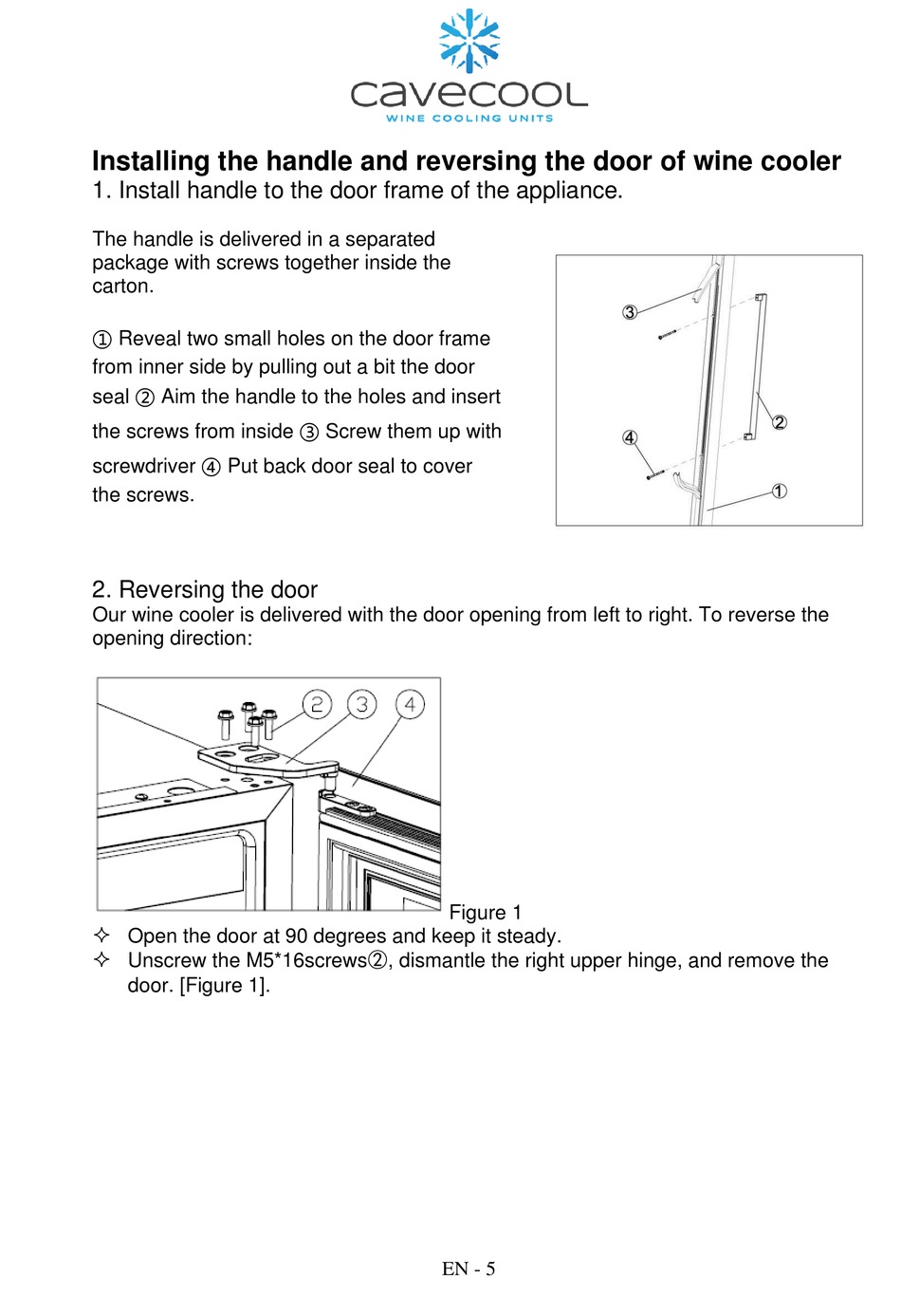

Installing the handle and reversing the door of wine cooler
1. Install handle to the door frame of the appliance.
The handle is delivered in a separated
package with screws together inside the
carton.
① Reveal two small holes on the door frame
from inner side by pulling out a bit the door
seal ② Aim the handle to the holes and insert
the screws from inside ③ Screw them up with
screwdriver ④ Put back door seal to cover
the screws.
2. Reversing the door
Our wine cooler is delivered with the door opening from left to right. To reverse the
opening direction:
Figure 1
 Open the door at 90 degrees and keep it steady.
 Unscrew the M5*16screws②, dismantle the right upper hinge, and remove the
door. [Figure 1].
EN - 5
