1 Overview
10
9

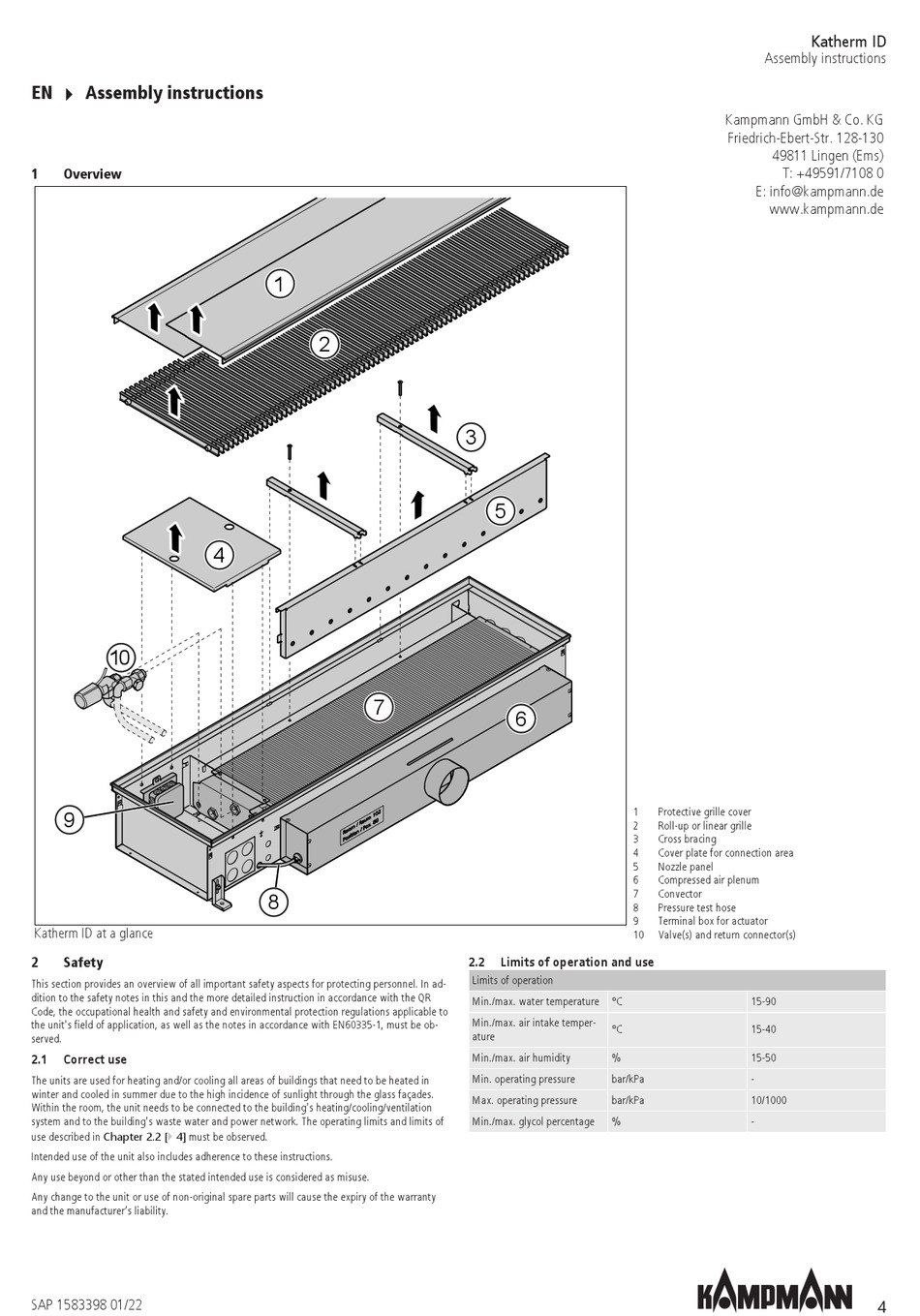

Katherm ID at a glance
2 Safety
This section provides an overview of all important safety aspects for protecting personnel. In ad-
dition to the safety notes in this and the more detailed instruction in accordance with the QR
Code, the occupational health and safety and environmental protection regulations applicable to
the unit's field of application, as well as the notes in accordance with EN60335-1, must be ob-
served.
2.1 Correct use
The units are used for heating and/or cooling all areas of buildings that need to be heated in
winter and cooled in summer due to the high incidence of sunlight through the glass façades.
Within the room, the unit needs to be connected to the building's heating/cooling/ventilation
system and to the building's waste water and power network. The operating limits and limits of
use described in Chapter 2.2 [} 4] must be observed.
Intended use of the unit also includes adherence to these instructions.
Any use beyond or other than the stated intended use is considered as misuse.
Any change to the unit or use of non-original spare parts will cause the expiry of the warranty
and the manufacturer's liability.
SAP 1583398 01/22
1
2
4
7
8
3
5
6
1
2
3
4
5
6
7
8
9
10
2.2 Limits of operation and use
Limits of operation
Min./max. water temperature °C
Min./max. air intake temper-
°C
ature
Min./max. air humidity %
Min. operating pressure bar/kPa
Max. operating pressure bar/kPa
Min./max. glycol percentage %
Katherm ID
Assembly instructions
Kampmann GmbH & Co. KG
Friedrich-Ebert-Str. 128-130
49811 Lingen (Ems)
T: +49591/7108 0
E: info@kampmann.de
www.kampmann.de
Protective grille cover
Roll-up or linear grille
Cross bracing
Cover plate for connection area
Nozzle panel
Compressed air plenum
Convector
Pressure test hose
Terminal box for actuator
Valve(s) and return connector(s)
15-90
15-40
15-50
-
10/1000
-
