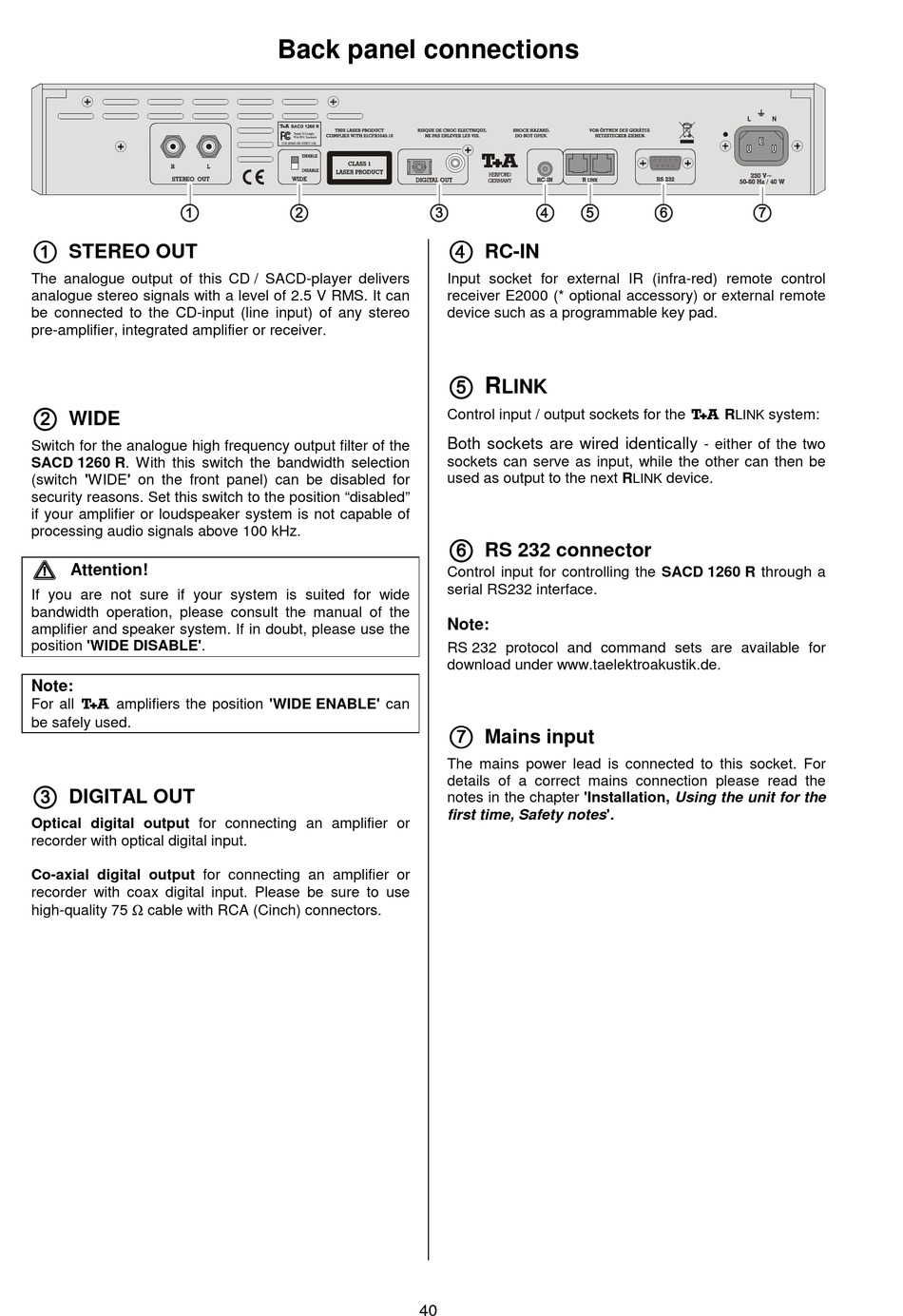

Back Panel Connections; Mains Input - T+A SACD 1260 R Betriebsanleitung

STEREO OUT
   
The analogue output of this CD / SACD-player delivers
analogue stereo signals with a level of 2.5 V RMS. It can
be connected to the CD-input (line input) of any stereo
pre-amplifier, integrated amplifier or receiver.
WIDE
   
Switch for the analogue high frequency output filter of the
SACD 1260 R. With this switch the bandwidth selection
(switch 'WIDE' on the front panel) can be disabled for
security reasons. Set this switch to the position "disabled"
if your amplifier or loudspeaker system is not capable of
processing audio signals above 100 kHz.
  Attention!
 
If you are not sure if your system is suited for wide
bandwidth operation, please consult the manual of the
amplifier and speaker system. If in doubt, please use the
position 'WIDE DISABLE'.
Note:
For all  amplifiers the position 'WIDE ENABLE' can
be safely used.
  DIGITAL OUT
 
Optical digital output for connecting an amplifier or
recorder with optical digital input.
Co-axial digital output for connecting an amplifier or
recorder with coax digital input. Please be sure to use
high-quality 75 Ω cable with RCA (Cinch) connectors.

Back panel connections

   
Input socket for external IR (infra-red) remote control
receiver E2000 (* optional accessory) or external remote
device such as a programmable key pad.
 R
  
Control input / output sockets for the  R
Both sockets are wired identically
sockets can serve as input, while the other can then be
used as output to the next R
 
 
Control input for controlling the SACD 1260 R through a
serial RS232 interface.
Note:
RS 232 protocol and command sets are available for
download under www.taelektroakustik.de.
 
 
The mains power lead is connected to this socket. For
details of a correct mains connection please read the
notes in the chapter 'Installation, Using the unit for the
first time, Safety notes'.
40
RC-IN
LINK
LINK
RS 232 connector

Mains input

system:
LINK
- either of the two
device.
